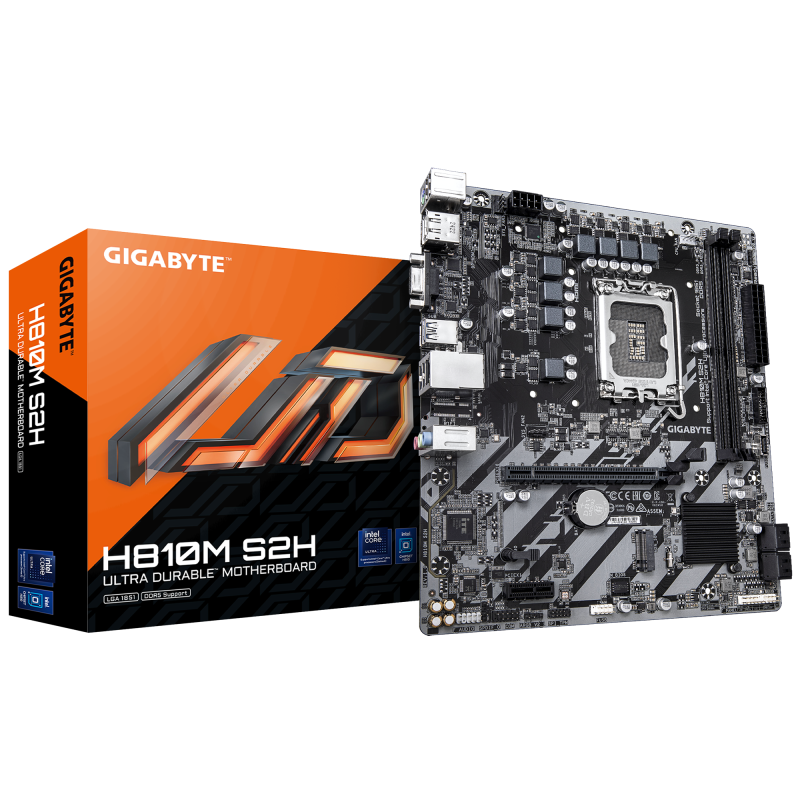

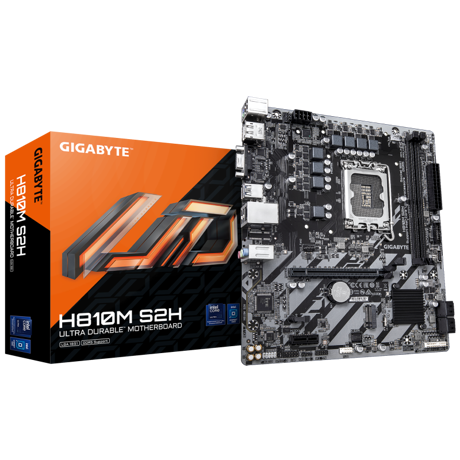

Placa de Baza GIGABYTE H810M

Placa de Baza GIGABYTE H810M S2H LGA1851, 2x DDR5, 1x HDMI 1x DP 1x D- Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset

Intel H810

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard form factor

micro ATX

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

1

S/PDIF out connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

2

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

6400 MHz

Supported memory clock speeds

5600,6400 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

2

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

LAN controller

Realtek RTL8111H

Weight

790 g

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package weight

872 g

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

2.1

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 2.0 ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

1

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

5

Depth

215 mm

Height

35 mm

Width

244 mm

MB-Format

micro-ATX

RAM-Slots

2

MB-Socket

LGA1851

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
