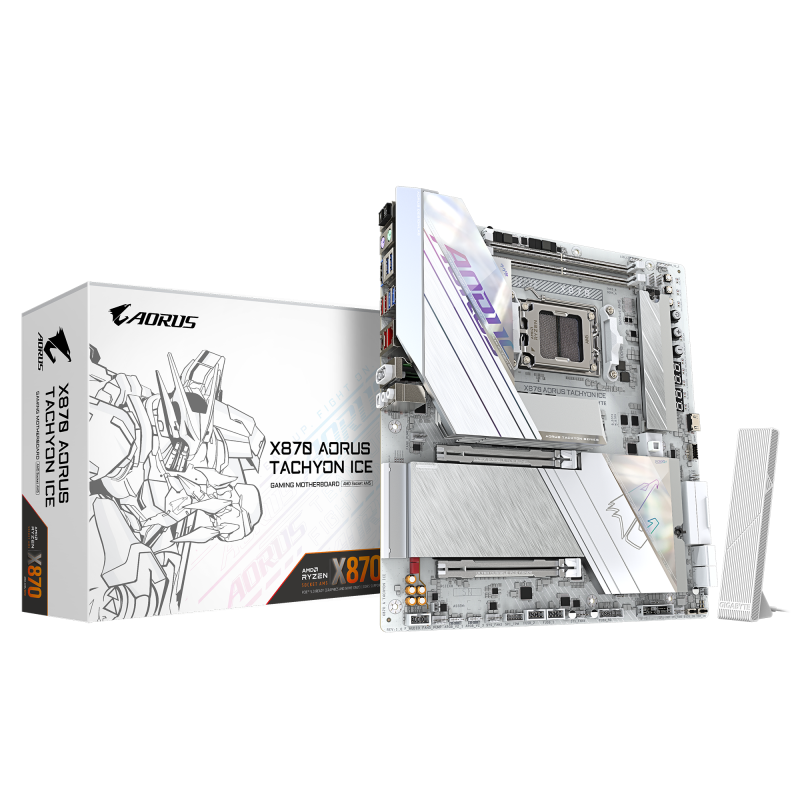

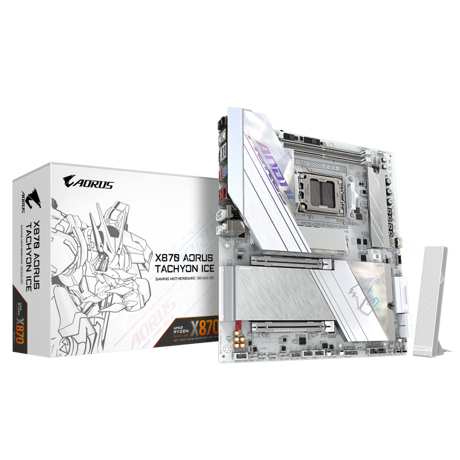

Placa de Baza GIGABYTE X870 AORUS ACHYON ICE AM5, 2x DDR5, 1x USB4, 1x HDMI, 1x Front HDMI, 1x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza GIGABYTE X870 AORUS ACHYON ICE AM5, 2x DDR5, 1x USB4, 1x HDMI, 1x Front HDMI, 1x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

White

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

2

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Motherboard chipset

AMD X870

Motherboard form factor

Extended ATX

Audio Chip

Realtek ALC1220-VB

Power source type

ATX

Motherboard chipset family

AMD

Component for

PC

Audio output channels

7.1 channels

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of SATA III connectors

2

Number of temperature sensor headers

2

Number of water pump connectors

3

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Number of chassis fan connectors

6

Country of origin

Taiwan

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

9600 MHz

Number of memory slots

2

Maximum internal memory

128 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

WLAN controller model

Realtek RTL8922AE

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

LAN controller

Realtek RTL8126

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Weight

3.32 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package width

400 mm

Package height

430 mm

Package depth

33.5 mm

Package weight

3.91 kg

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

2

S/PDIF out port

Yes

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

USB4 Gen 3x2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Warranty period

3 year(s)

Depth

27.5 mm

Height

35 mm

Width

305 mm

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
