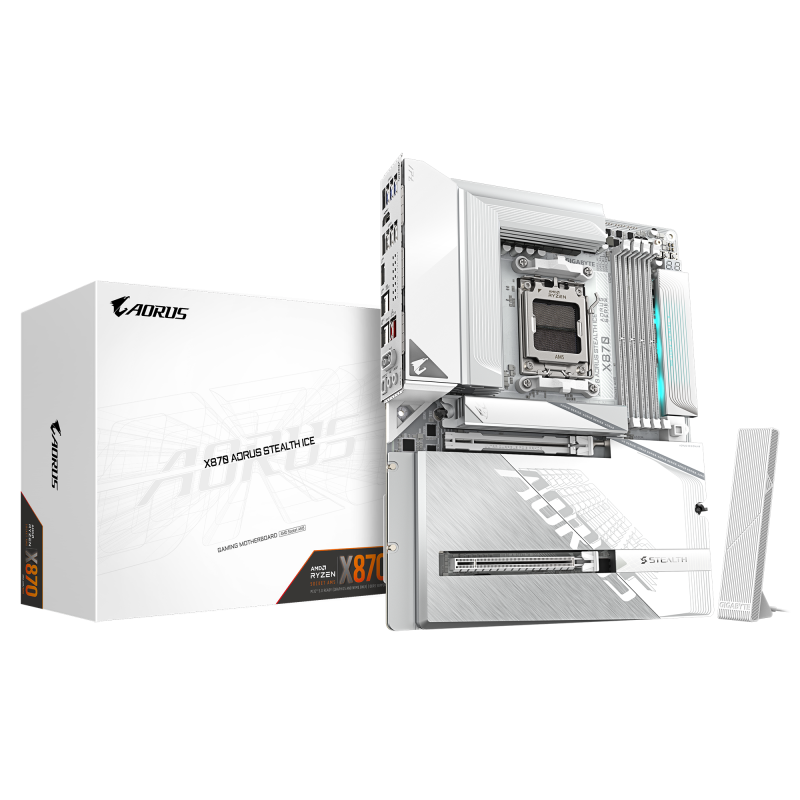

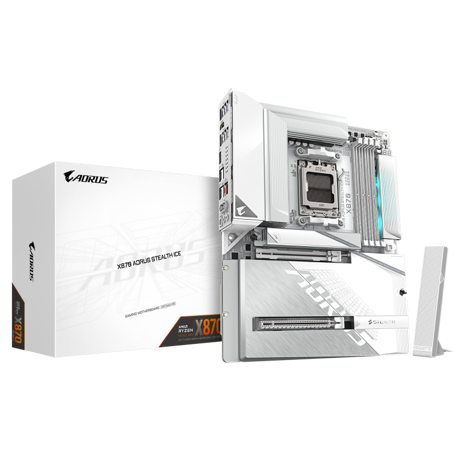

Placa de Baza GIGABYTE X870E AORUS STEALTH ICE AM5, 4x DDR5, 2x USB4, 1x HDMI,1x Front HDMI, 1x PCIE x16, 3x M.2, 2x SATA 6GB/s, ATX

Placa de Baza GIGABYTE X870E AORUS STEALTH ICE AM5, 4x DDR5, 2x USB4, 1x HDMI,1x Front HDMI, 1x PCIE x16, 3x M.2, 2x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

White

2nd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

Number of M.2 (M) slots

4

4th M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard chipset family

AMD

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

Audio Chip

Realtek ALC1220-VB

Motherboard chipset

AMD X870

Power source type

ATX

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of SATA III connectors

2

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

3

Number of temperature sensor headers

2

Peripheral (Molex) power connectors (4-pin)

1

Number of chassis fan connectors

6

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Yes

LAN controller

Realtek RTL8126

WLAN controller model

Qualcomm QCNCM865

Bluetooth version

5.3

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Weight

4.4 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package depth

375 mm

Package height

118.5 mm

Package width

315.5 mm

Package weight

5.07 kg

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

WiFi-AP antenna jack

2

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

2

RAID support

Yes

Supported storage drive types

HDD & SSD

RAID levels

0, 1, 5, 10

Number of HDDs supported

2

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

Warranty period

3 year(s)

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
