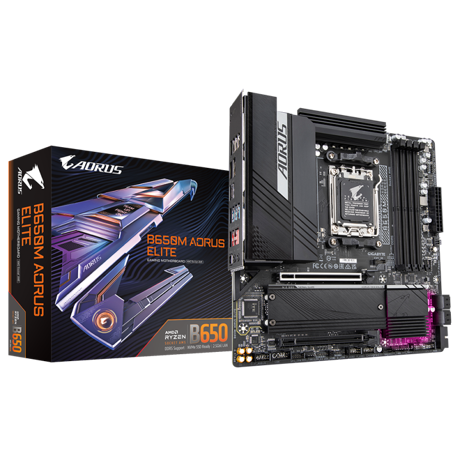

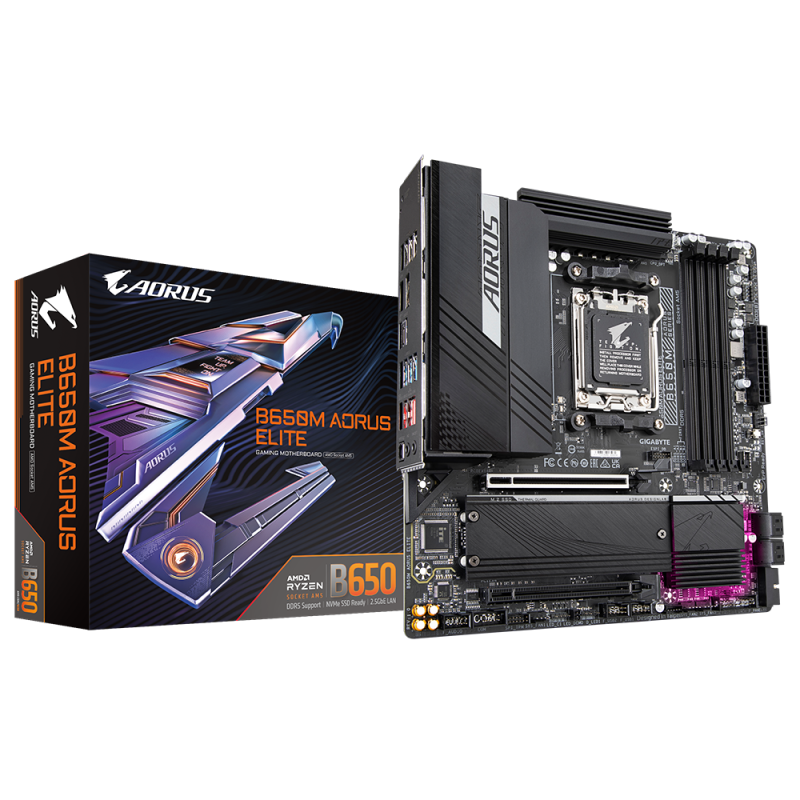

Placa de bază Gigabyte B650M AORUS ELITE AM5

Placa de Baza GIGABYTE B650M AORUS ELITE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

2

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard chipset family

AMD

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

AMD B650

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Serial port headers

1

Thunderbolt headers

1

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

5

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.66 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.9 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Headphone outputs

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

6

RAID levels

0, 1, 10

Height

35 mm

Width

244 mm

Depth

244 mm

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM5

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
