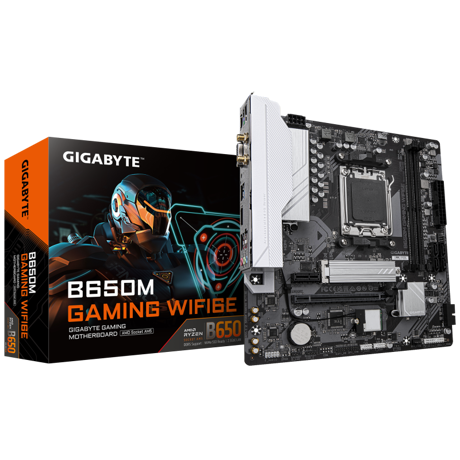

Placa de bază Gigabyte B650M GAMING WIFI6E AM5

Placa de Baza GIGABYTE B650M GAMING WIFI6E AM5, 2x DDR5, 1x D-Sub 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

PC health monitoring

Fan, Temperature, Voltage

Motherboard chipset

AMD B650

Power source type

ATX

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Supported memory clock speeds

6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory clock speed (max)

6400 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Ethernet interface type

2.5 Gigabit Ethernet

Weight

720 g

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.21 kg

Warranty period

3 year(s)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

1

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

PS/2 ports quantity

1

WiFi-AP antenna jack

2

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of storage drives supported

5

RAID levels

0, 1, 10

Height

35 mm

Depth

225 mm

Width

240 mm

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No
