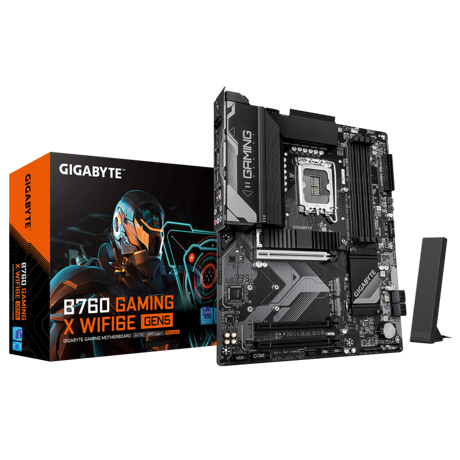

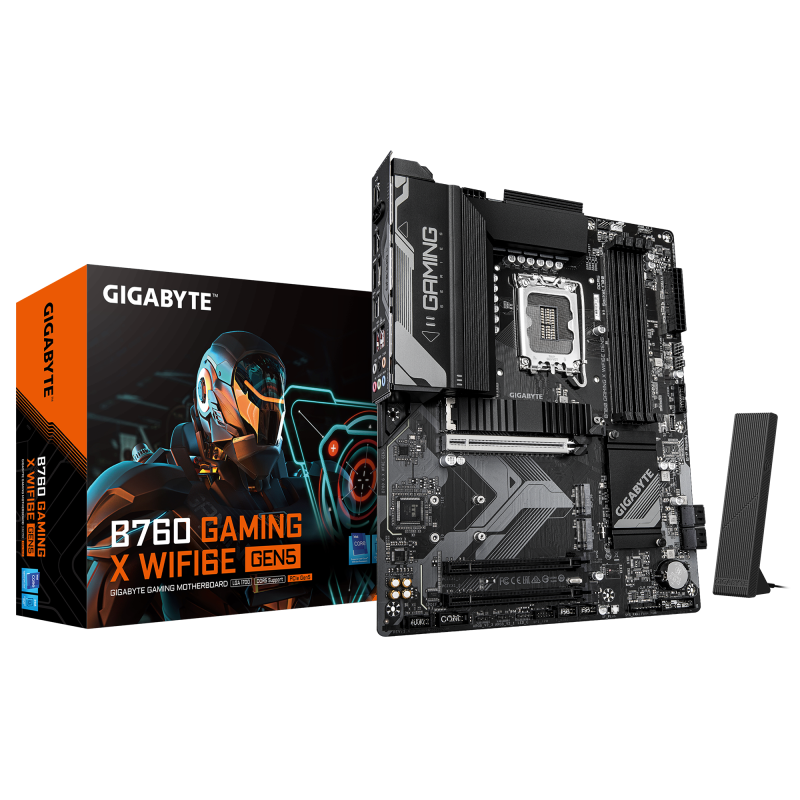

Placa de bază Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700

Placa de Baza GIGABYTE B760 GAMING X WIFI6E GEN5 LGA1700, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

Number of M.2 (M) slots

3

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

Intel B760

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

S/PDIF out connector

Yes

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

4400,4800,5200,5600 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Intel Wi-Fi 6E AX210

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Bluetooth

Yes

Bluetooth version

5.3

Weight

16.1 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package weight

1.8 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

USB 2.0 ports quantity

5

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

WiFi-AP antenna jack

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Line-in

Yes

VGA (D-Sub) ports quantity

0

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

MB-Socket

1700

PCI-Ex1

0

RAM-Slots

4

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
