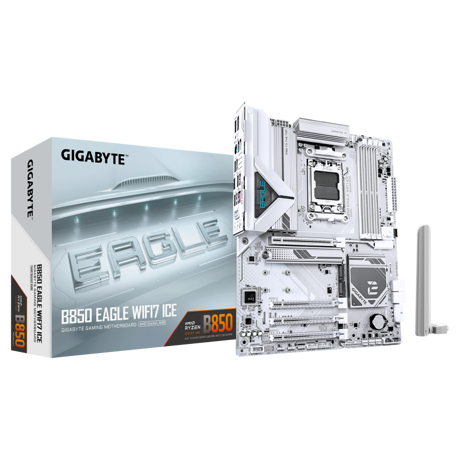

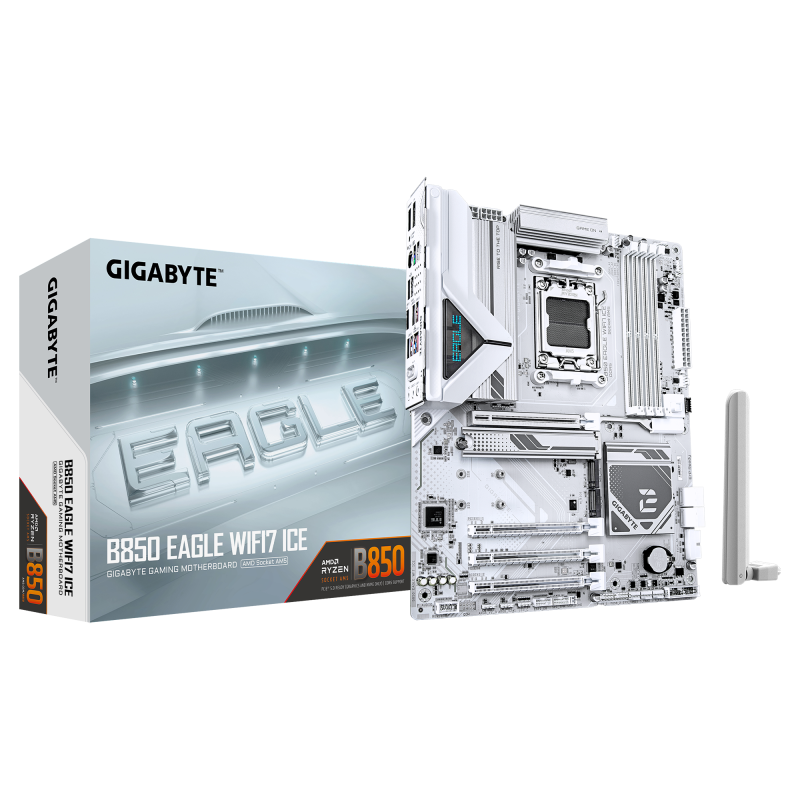

Placa de bază Gigabyte B850 EAGLE WIFI7 ICE AM5

Placa de Baza GIGABYTE B850 EAGLE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

White

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 3.x) slots

2

1st M.2 largest key size

22110

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Power source type

ATX

DirectX version

12.0

HDCP

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

Peripheral (Molex) power connectors (4-pin)

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of EPS power connectors (8-pin)

1

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-FI

Yes

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Bluetooth version

5.4

Weight

16.9 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Antenna included

Yes

Screws included

Yes

Package weight

1.89 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

DisplayPort version

1.4

HDMI version

1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

DVI-D ports quantity

0

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Microphone in

Yes

Headphone outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Line-in

Yes

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

WiFi-AP antenna jack

2

Number of HDDs supported

4

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height

35 mm

Width

30.5 mm

Depth

24.4 mm

MB-Format

ATX

PCI-Ex1

0

PCI-Ex16

3

RAM-Slots

4

MB-Socket

AM5

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
