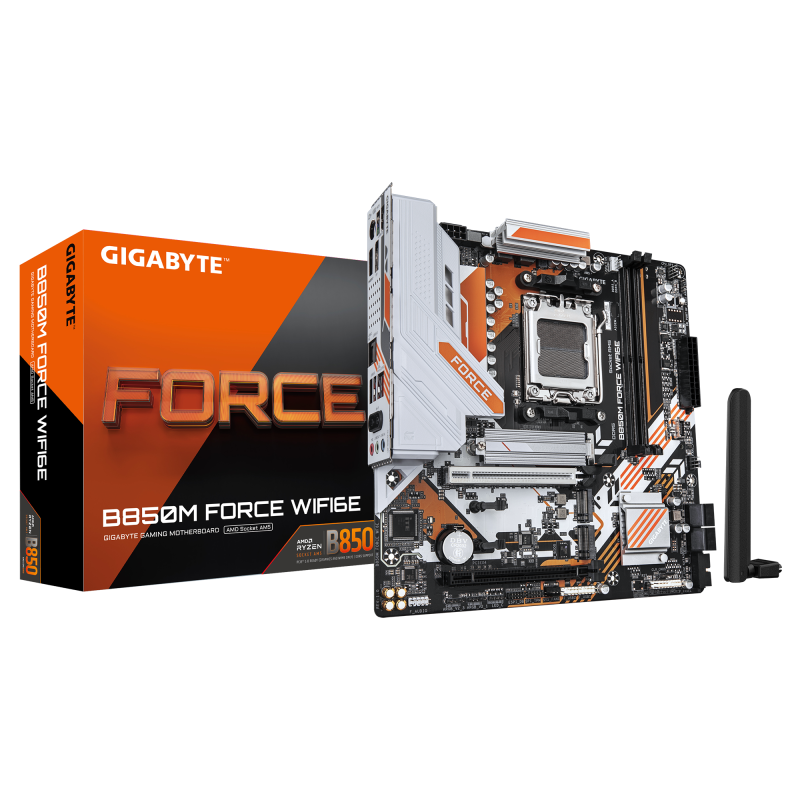

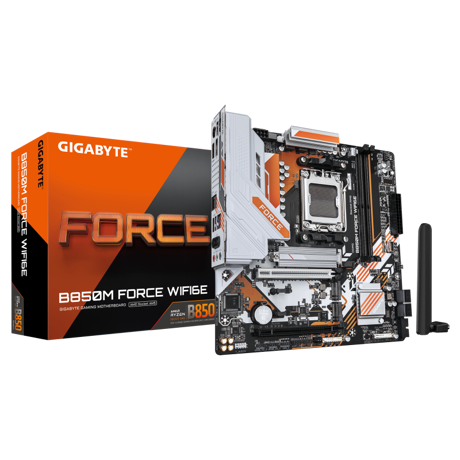

Placa de bază Gigabyte B850M FORCE WIFI6E AM5

Placa de Baza GIGABYTE B850M FORCE WIFI 6E, 2x DDR5, 1x HDMI, 1x DP, 1x PCIE x16, 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset

AMD B850

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

9600 MHz

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Number of memory slots

2

Maximum internal memory

128 GB

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

MediaTek MT7902

Bluetooth version

5.3

Bluetooth

Yes

Weight

1.22 kg

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Package height

68 mm

Package weight

14 kg

Package width

270 mm

Package depth

268 mm

Warranty period

3 year(s)

DisplayPorts quantity

1

DVI-D ports quantity

0

DisplayPort version

1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height

35 mm

Width

244 mm

Depth

244 mm

RAM-Slots

4

MB-Format

micro-ATX

PCI-Ex1

2

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
