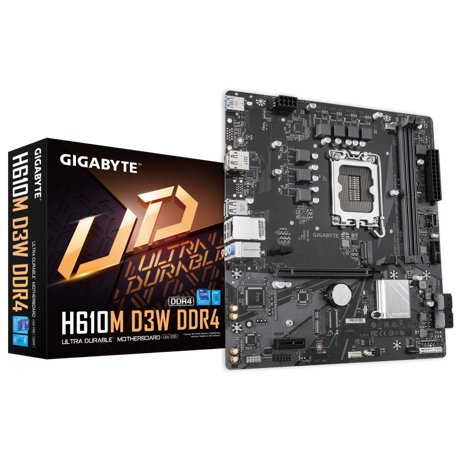

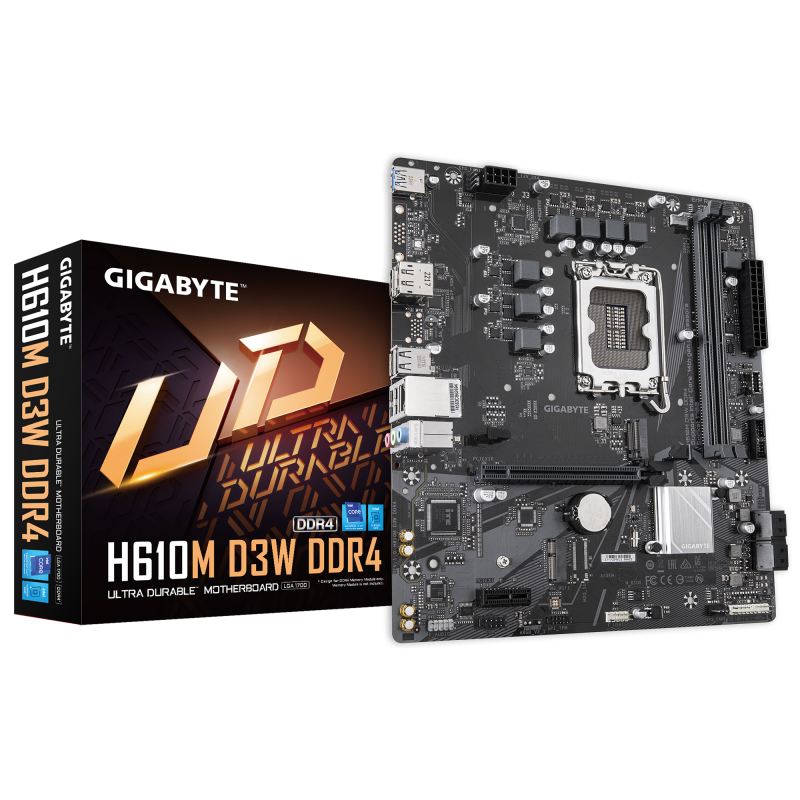

Placa de bază Gigabyte H610M D3W DDR4 LGA1700

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

Motherboard chipset

Intel H610

Power source type

ATX

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Parallel processing technology support

Not supported

DirectX version

12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

Number of CPU fan connectors

1

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

3200 MHz

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Maximum internal memory per slot

32 GB

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

64 GB

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

Weight

770 g

Batteries included

Yes

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

800 g

Warranty period

3 year(s)

DisplayPort version

1.2

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Microphone in

Yes

Number of storage drives supported

5

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Depth

220 mm

Height

35 mm

Width

244 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
