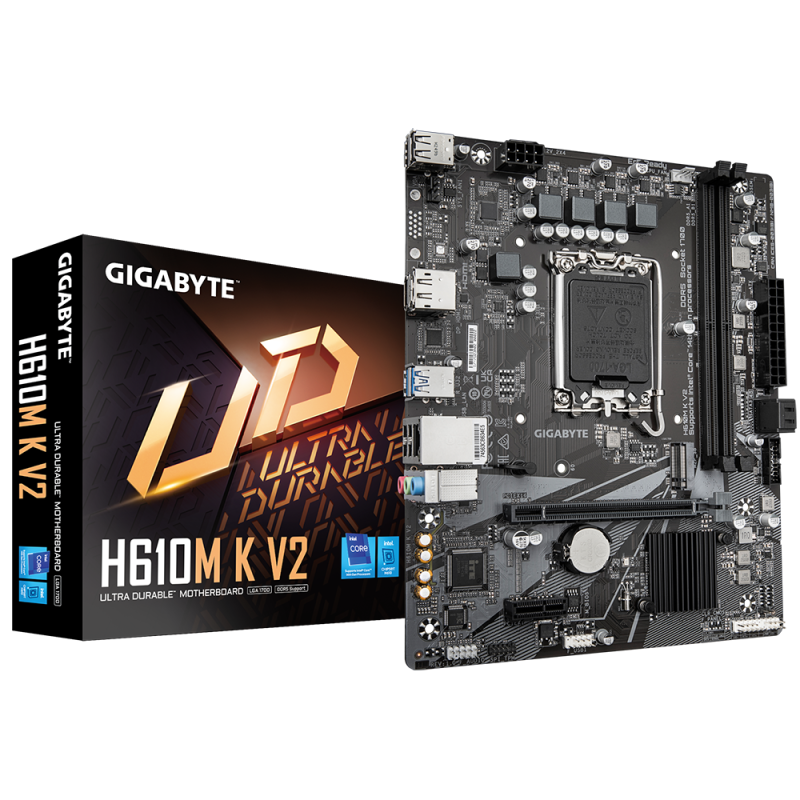

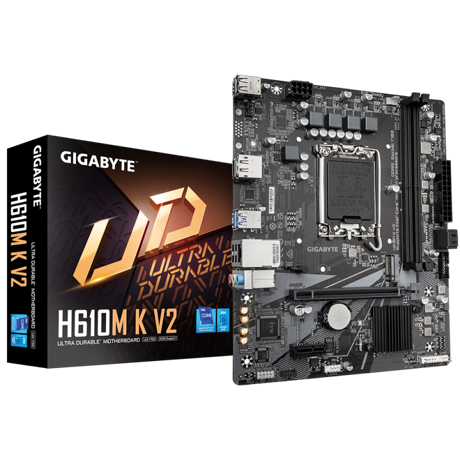

Placa de bază Gigabyte H610M K V2 LGA1700

Placa de Baza GIGABYTE H610M K V2 LGA1700, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 2x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

Intel H610

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

Number of SATA III connectors

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

1

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

5600,5200,4800,4400 MHz

Number of memory slots

2

Maximum internal memory

128 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

LAN controller

Realtek RTL8111H

Weight

650 g

Batteries included

Yes

Screws included

Yes

Package width

265 mm

Package depth

235 mm

Package height

52 mm

Package weight

723 g

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

3

Number of HDDs supported

2

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Supported storage drive types

HDD & SSD

Depth

18.5 mm

Width

226 mm

Height

35 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
