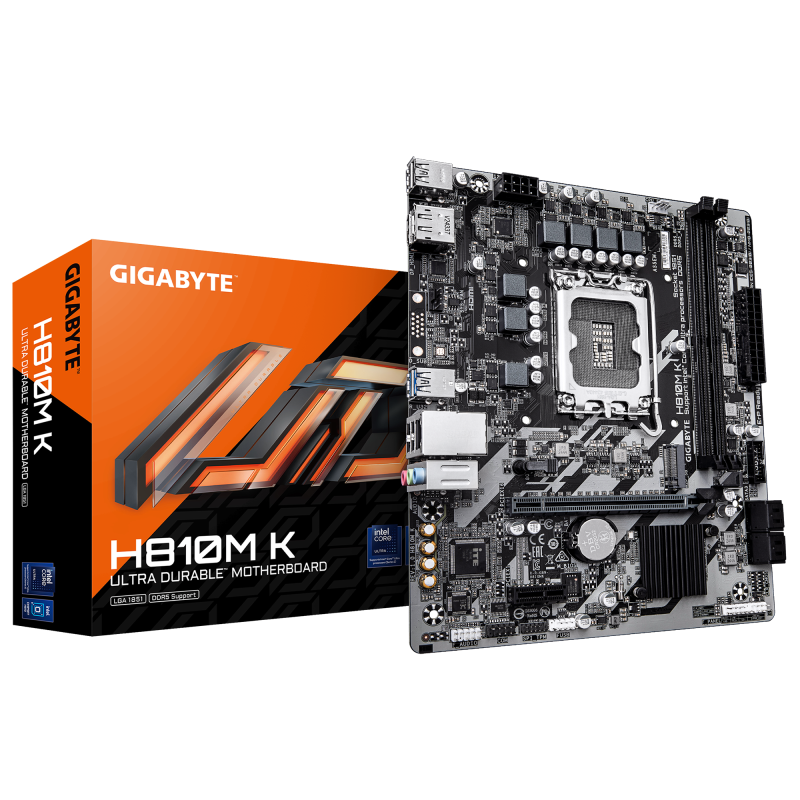

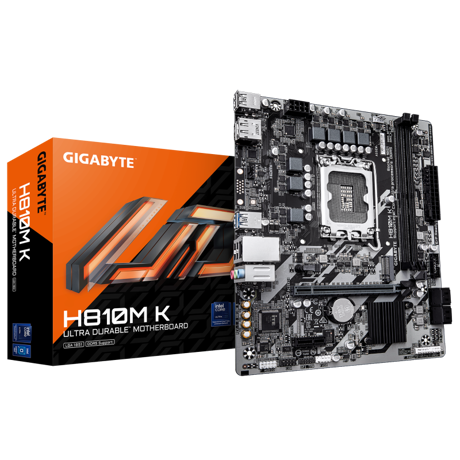

Placa de bază Gigabyte H810M K LGA1851

Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Bluetooth

Nu

HDMI

Da

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset

Intel H810

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Power source type

ATX

Format

Micro-ATX (mATX)

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 2.0 connectors

1

Number of chassis fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Front panel connector

Yes

TPM connector

Yes

Serial port headers

1

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Tip Memorie

DDR5

Memorie maxima

N/A

Supported memory clock speed (max)

6400 MHz

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Supported memory clock speeds

5600,6400 MHz

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

LAN controller

Realtek RTL8111H

Weight

688 g

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package height

54 mm

Package weight

766.6 g

Package width

265 mm

Package depth

265 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

5

RAID support

Yes

Supported storage drive types

HDD & SSD

Tip slot interfata grafica

PCIe 4.0 x16

Model Chipset

H810

USB Type C

N/A

Canale audio

N/A

Sloturi M.2

1

RJ-45 LAN

N/A

Chipset audio integrat

Realtek

Soclu Procesor

Socket 1851

Numar sloturi memorie

2

Gaming

Nu

Thunderbolt

Nu

Height

35 mm

Width

226 mm

Depth

185 mm

MB-Socket

LGA1851

MB-Format

micro-ATX

RAM-Slots

2

Onboard-CPU

No

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

PCI

0

Serial-or-Paralel

No/No
