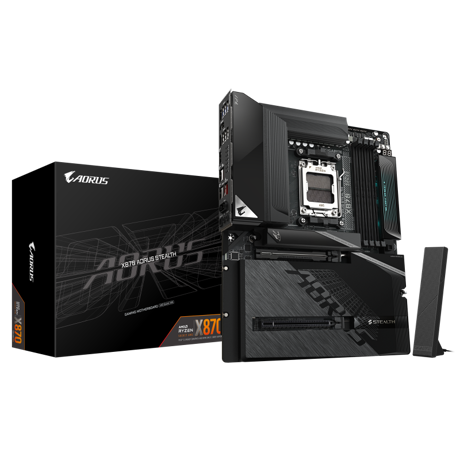

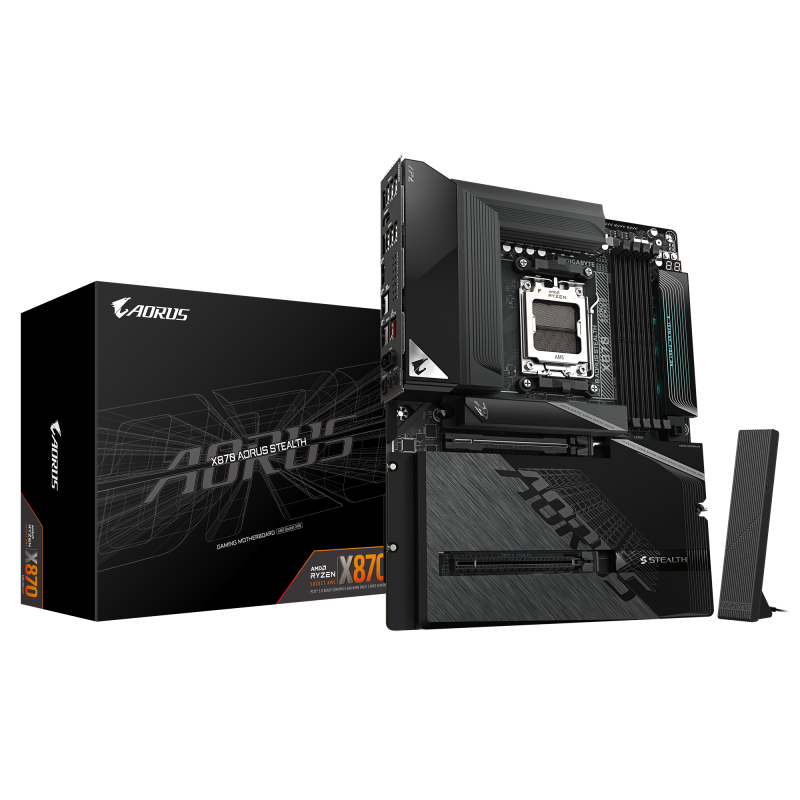

Placa de baza GIGABYTE X870 AORUS STEALTH

Placa de baza GIGABYTE X870 AORUS STEALTH

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Bluetooth

Yes

Product colour

Black

Cooling type

Passive

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

2nd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

Audio Chip

Realtek ALC1220-VB

Motherboard chipset

AMD X870

Power source type

ATX

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

HDCP version

2.3

On-board graphics card

No

DirectX version

12.0

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of SATA III connectors

2

Number of temperature sensor headers

2

Number of chassis fan connectors

6

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

3

Peripheral (Molex) power connectors (4-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Qualcomm QCNCM865

LAN controller

Realtek RTL8126

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Bluetooth version

5.3

Weight

4.42 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package weight

5.1 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

4

DisplayPort version

1.4

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

WiFi-AP antenna jack

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

2

Line-in

Yes

S/PDIF out port

Yes

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 5, 10

Number of HDDs supported

2

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

Height

35 mm

Width

305 mm

Depth

244 mm
