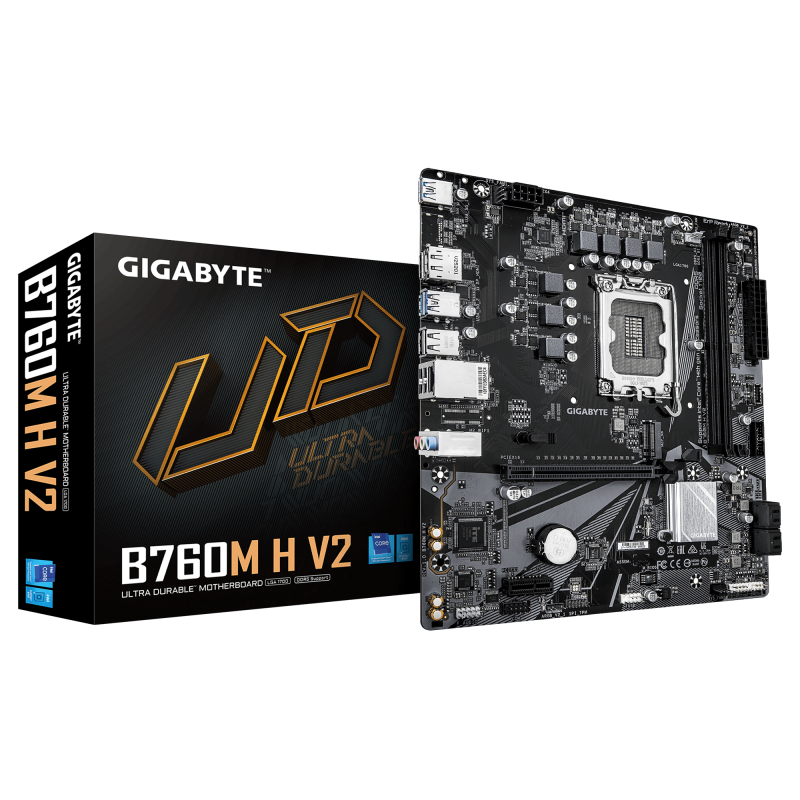

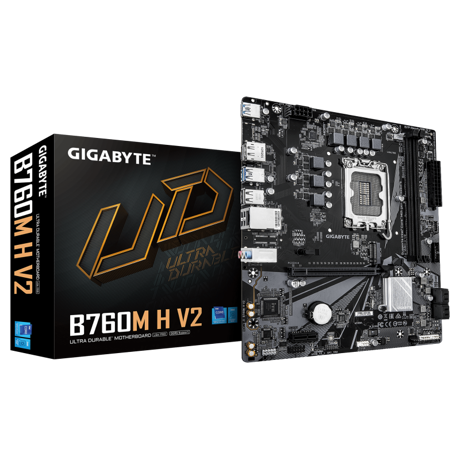

Placa de baza GigaByte 760M H V2 DDR5 LGA1700

Placa de baza GigaByte 760M H V2 DDR5 LGA1700

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

Intel B760 Express

Motherboard form factor

micro ATX

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

HDCP version

2.3

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

USB 2.0 connectors

1

Number of RGB LED pin headers

2

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz

Supported memory clock speed (max)

8000 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

2

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

Weight

770 g

Bundled software

Norton® Internet Security (OEM version)

Batteries included

Yes

Screws included

Yes

Package height

54 mm

Package weight

850 g

Package width

265 mm

Package depth

265 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

5

Depth

220 mm

Height

35 mm

Width

244 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
