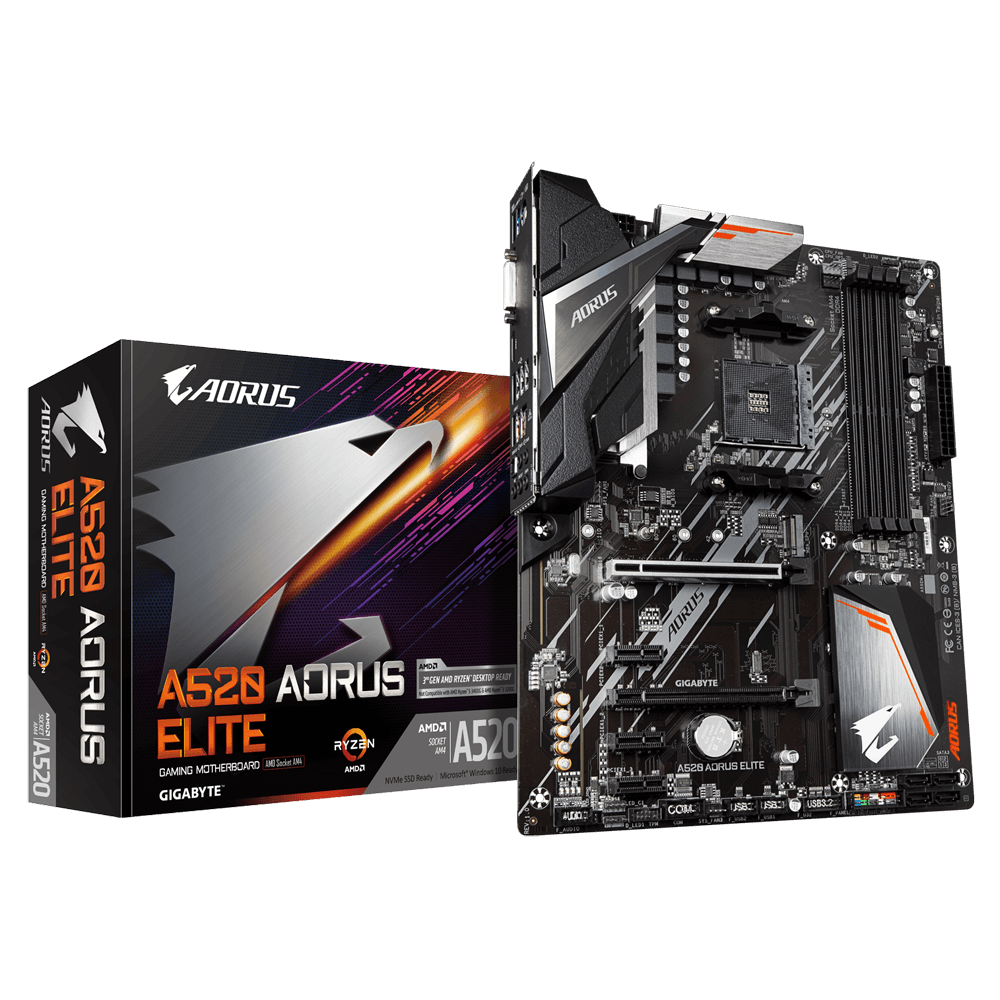

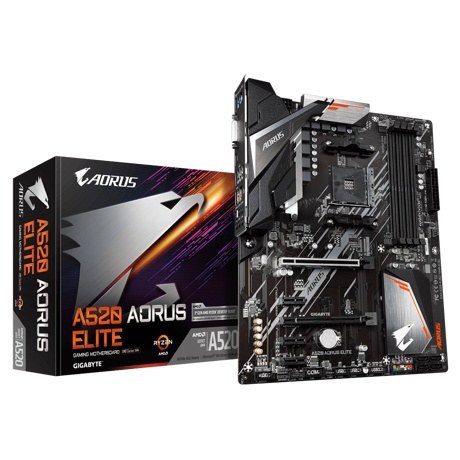

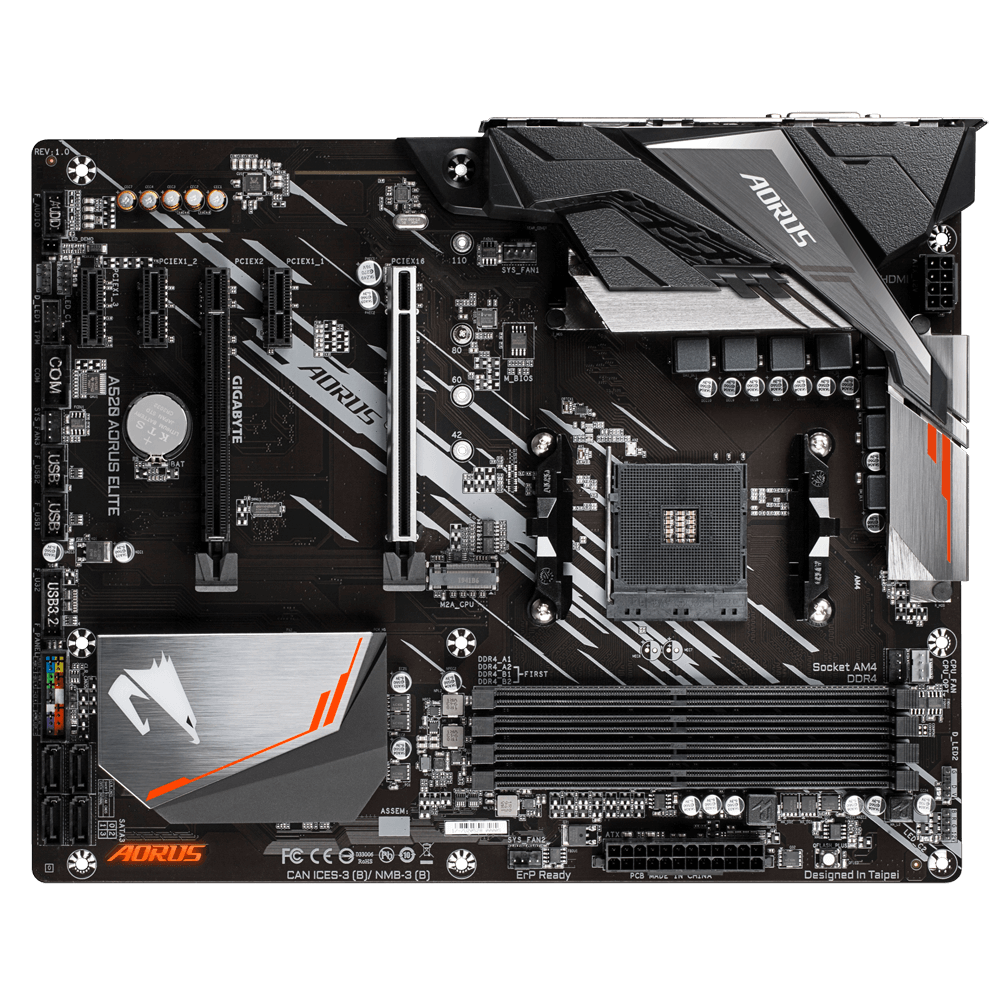

Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4

Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.Nucleul AORUS este inspirat de natura agresiva a soimului si priceperea de vanatoare. Soimul isi foloseste unghiile ascutite pentru a lovi rapid prada cu eficienta si precizie exceptionale, calitati care sunt exemplificate in detaliile fine ale designului AORUS.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala.

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

PCI Express x1 slots

3

PCI Express x16 slots

1

Number of M.2 (M) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC1200

Component for

PC

Windows operating systems supported

Windows 10 x64

Motherboard form factor

ATX

Motherboard chipset

AMD A520

PC health monitoring

Fan, Temperature, Voltage

Motherboard chipset family

AMD

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Serial port headers

1

Power fan connector

Yes

Harmonized System (HS) code

84733020

Country of origin

China

Supported memory clock speeds

2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Maximum internal memory

128 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Bundled software

Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

Package weight

1.35 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

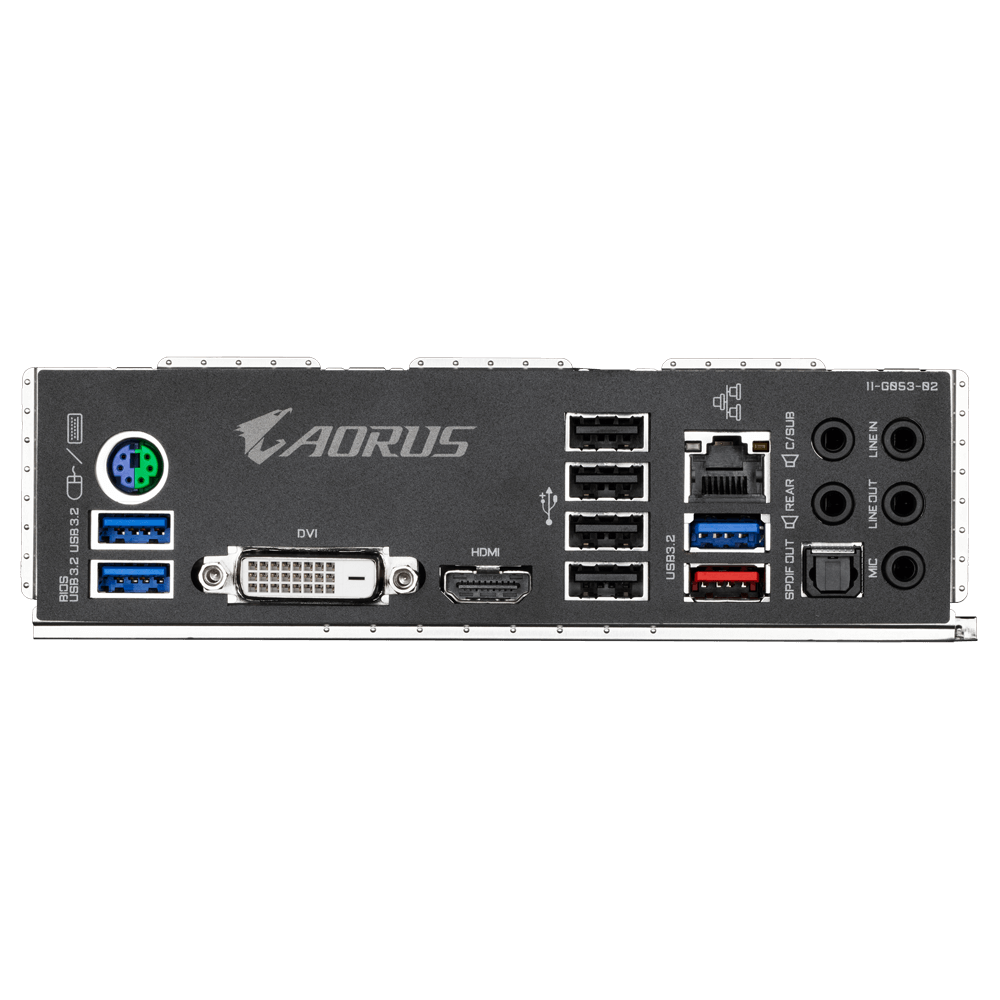

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI version

2.1

DVI-D ports quantity

1

Compatible processor series

AMD Ryzen 3000 Series

Processor socket

Socket AM4

Processor manufacturer

AMD

Supported processor sockets

Socket AM4

PS/2 ports quantity

1

S/PDIF out port

Yes

Headphone outputs

5

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

5

RAID levels

0, 1, 10

Width

305 mm

Depth

244 mm

Height

35 mm

PCI

0

Serial-or-Paralel

No/No

CPU încorporat

No
