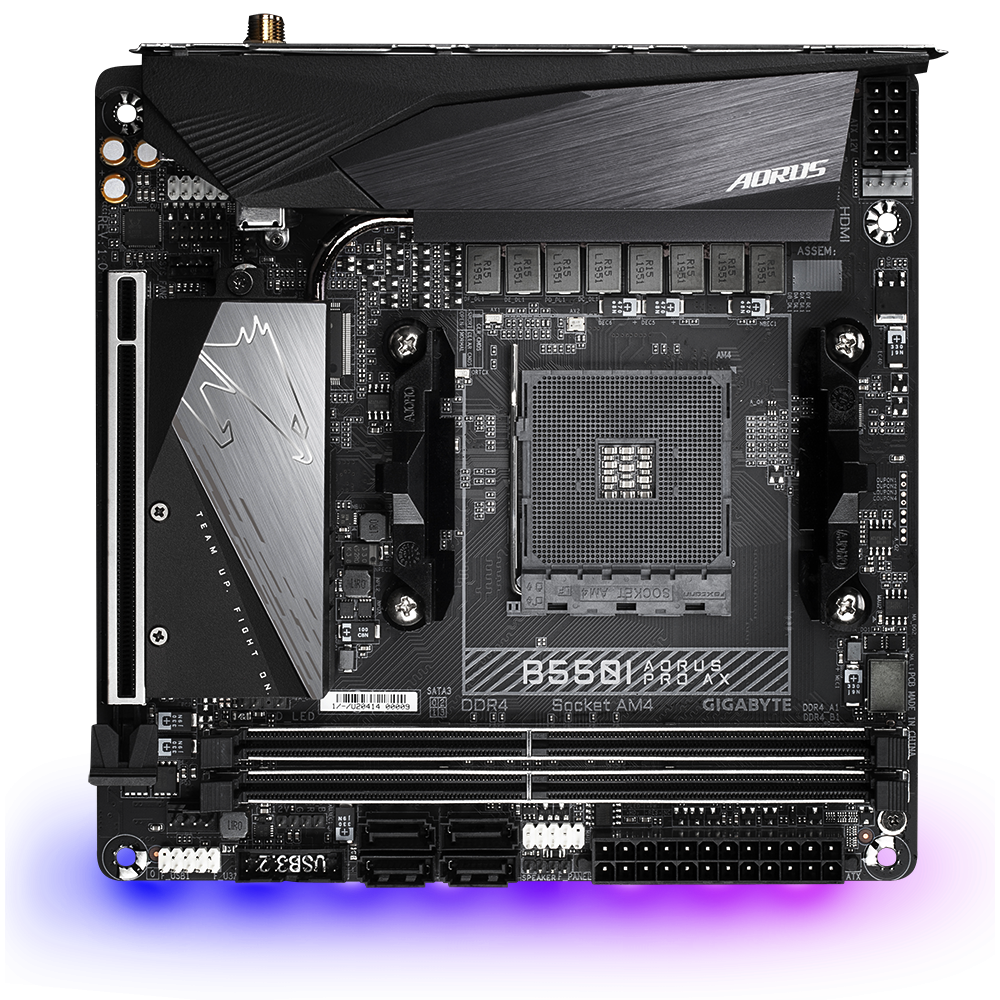

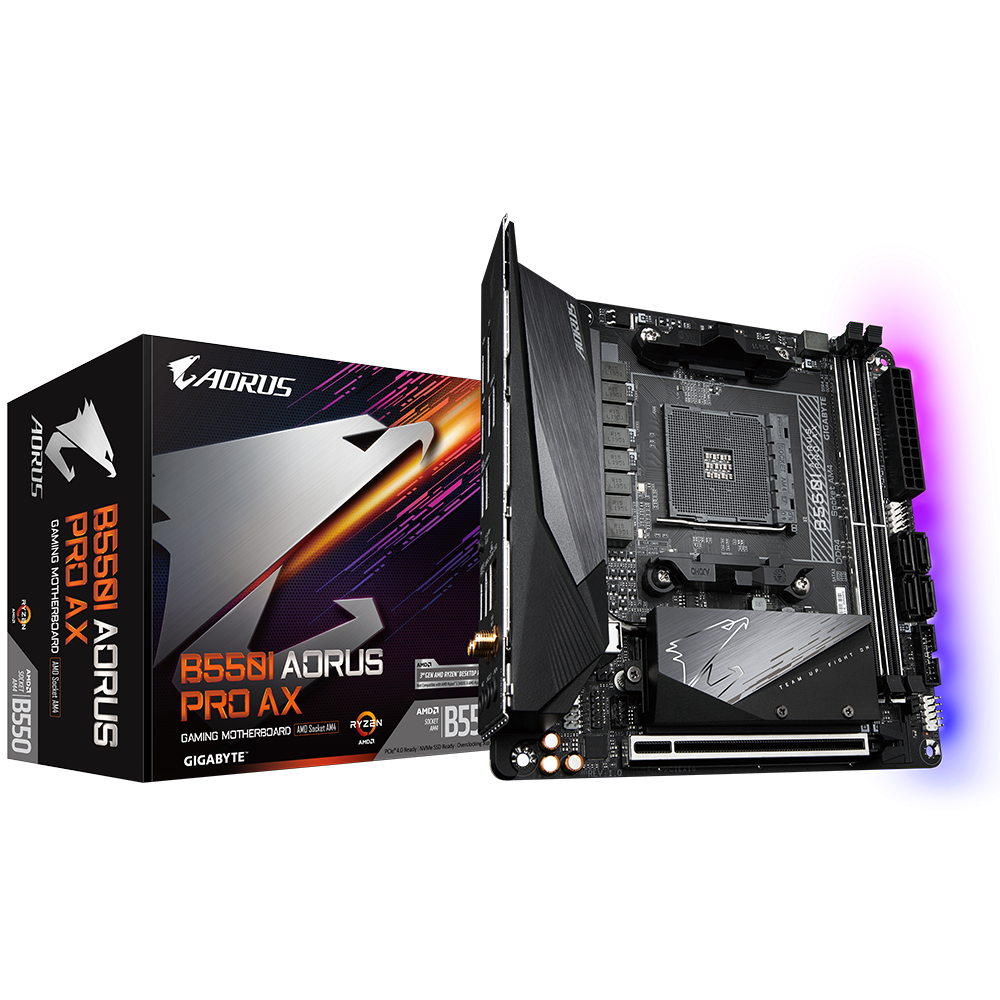

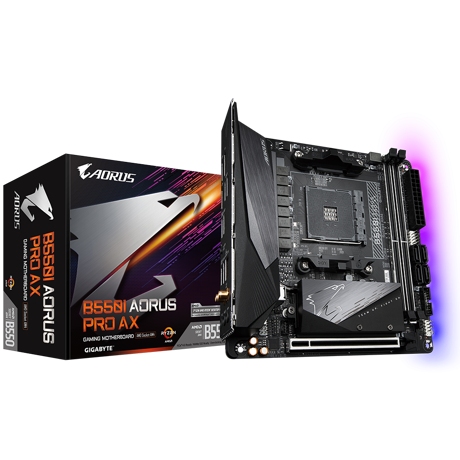

Placa de baza Gigabyte B550I AORUS PRO AX AM4

Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Motherboard chipset

AMD B550

Audio output channels

7.1 channels

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

Nettop

PC health monitoring

Fan, Temperature, Voltage

Motherboard form factor

mini ITX

Audio Chip

Realtek ALC1220-VB

Number of displays supported

3

Maximum resolution

5120 x 2880 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

On-board graphics card

No

HDCP

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Front panel connector

Yes

RGB LED pin header

Yes

Total number of SATA connectors

4

12V power connector

Yes

USB 2.0 connectors

1

Harmonized System (HS) code

84733020

Country of origin

Taiwan

Supported memory clock speeds

2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4400,4600,4800,5100,5200,5300 MHz

Supported memory clock speed (max)

5300 MHz

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

64 GB

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth version

5.3

Weight

790 g

mSATA ports quantity

0

Package width

265 mm

Package depth

235 mm

Package height

97 mm

Package weight

1.4 kg

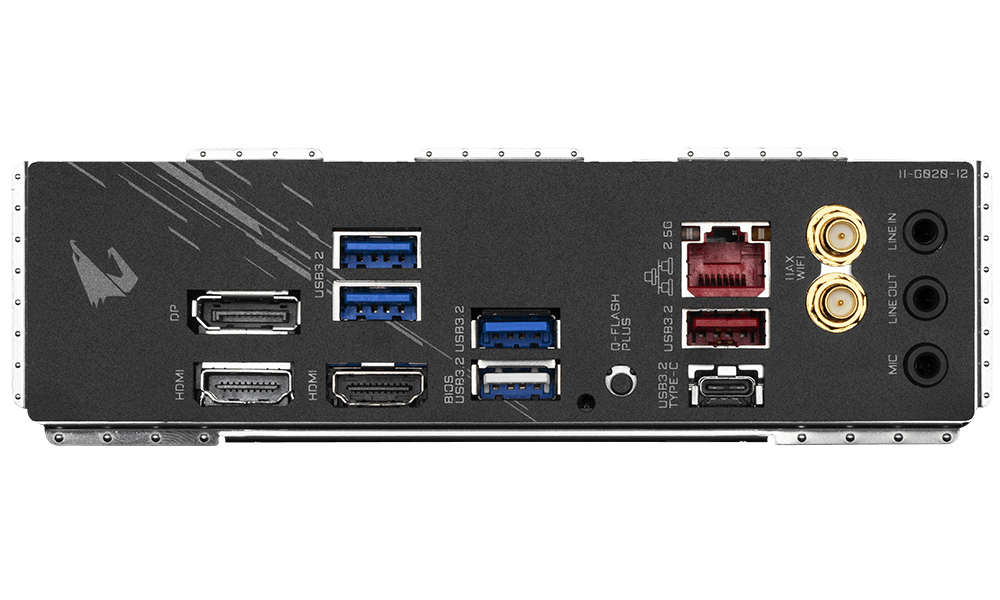

DVI-D ports quantity

0

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

2

DisplayPorts quantity

1

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Maximum internal memory supported by processor

64 GB

eSATA ports quantity

0

Firewire (IEEE 1394) ports

0

PS/2 ports quantity

0

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 10

Number of storage drives supported

6

Supported storage drive interfaces

M.2, SATA

Width

170 mm

Depth

170 mm

Height

35 mm

CPU încorporat

No

PCI

0

Serial-or-Paralel

No/No
