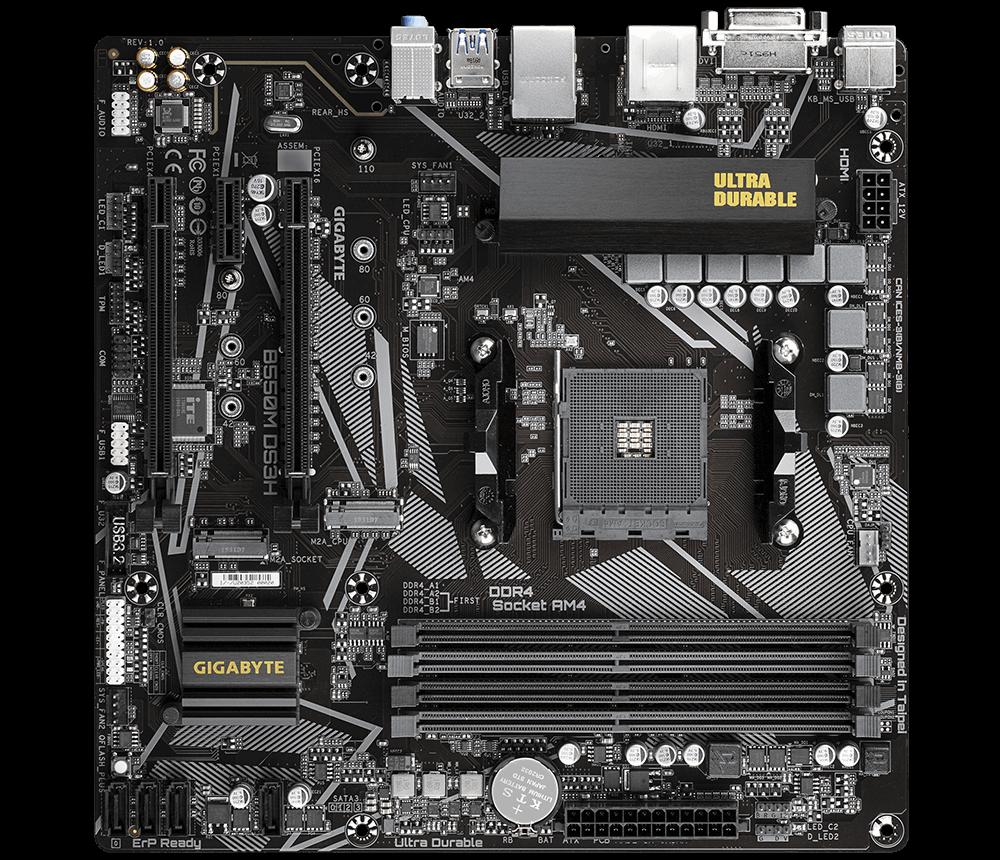

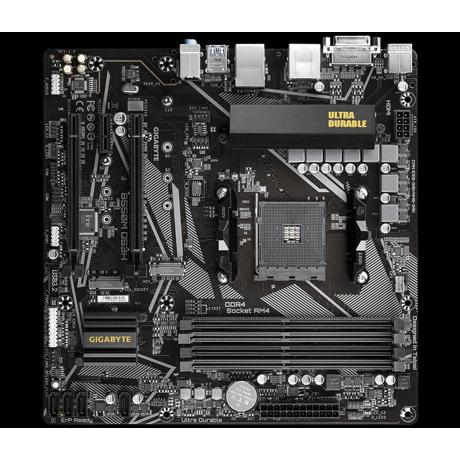

Placa de baza Gigabyte B550M DS3H, Socket AM4

• Condensatoare audio high-end. Placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.
• Audio noise guard. Placile de baza GIGABYTE dispun de un dispozitiv de protectie a zgomotului audio care separa in mod esential componentele audio analogice sensibile ale placii de potentialele poluari sonore la nivelul PCB.

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

Brown

PCI Express x16 slots

2

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Motherboard chipset

AMD B550

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio Chip

Realtek ALC887

Windows operating systems supported

Windows 10 x64, Windows 11 x64

PC health monitoring

Fan, Temperature, Voltage

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Discrete graphics support

Yes

HDCP

Yes

Total number of SATA connectors

4

12V power connector

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

USB 2.0 connectors

1

Serial port headers

1

Power fan connector

Yes

Country of origin

China

Harmonized System (HS) code

84733020

Supported memory clock speeds

2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz

Supported memory clock speed (max)

4733 MHz

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Maximum internal memory

128 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

Gigabit Ethernet

Weight

630 g

Cables included

SATA

Bundled software

Norton Internet Security (OEM) Realtek 8118 Gaming LAN Bandwidth Control Utility

Drivers included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

92.7 g

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

DVI-D ports quantity

1

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series

Supported processor sockets

Socket AM4

Maximum internal memory supported by processor

128 GB

Maximum number of SMP processors

1

eSATA ports quantity

0

Firewire (IEEE 1394) ports

0

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB connector type

USB Type-A

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

6

Supported storage drive interfaces

SATA III

RAID levels

0, 1, 10

Height

35 mm

Width

244 mm

Depth

244 mm

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM4

USB3

2

PCI-Ex16

2

CPU încorporat

No

PCI-Ex1

1

PCI

0

Serial-or-Paralel

No/No
