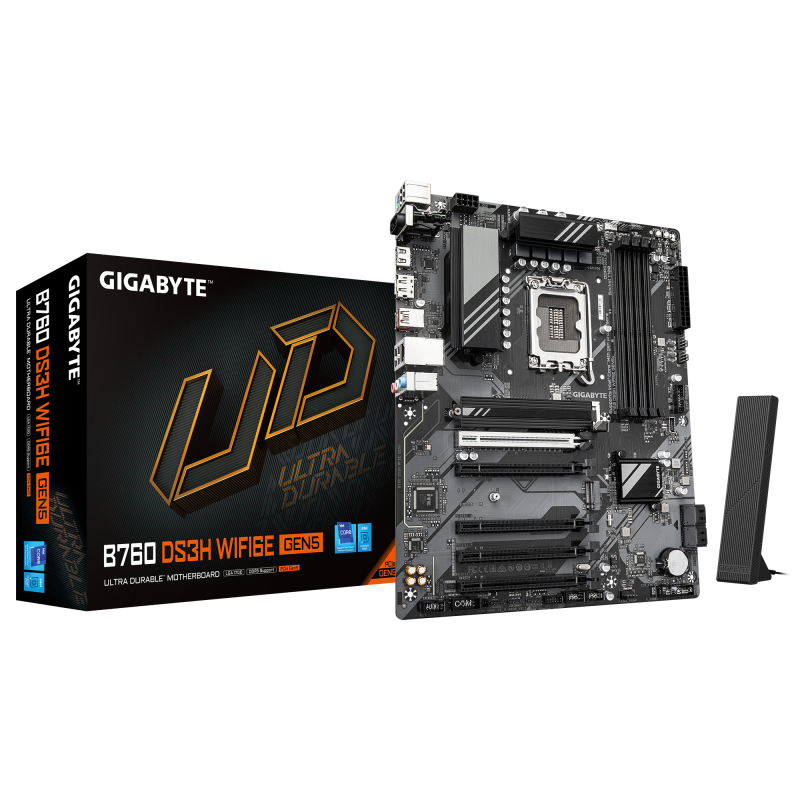

Placa de baza Gigabyte B760 DS3H WIFI6E GEN5

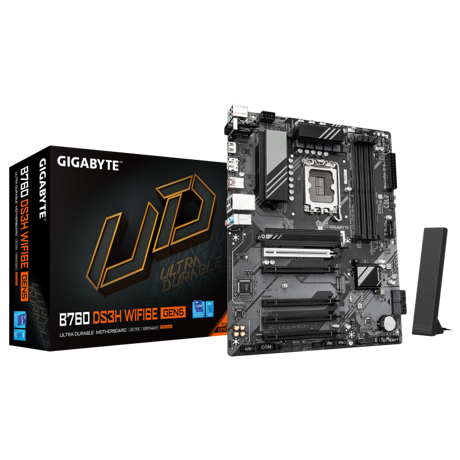

Placa de baza Gigabyte B760 DS3H WIFI6E GEN5

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

PCI Express x16 (Gen 3.x) slots

4

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset

Intel B760 Express

Maximum resolution

4096 x 2304 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

S/PDIF out connector

Yes

Number of EPS power connectors (8-pin)

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

Yes

LAN controller

Realtek RTL8111H

WLAN controller model

Intel Wi-Fi 6E AX210

Bluetooth

Yes

Bluetooth version

5.3

Weight

13.1 kg

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.55 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

2

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Microphone in

Yes

Headphone outputs

1

WiFi-AP antenna jack

2

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Line-in

Yes

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Socket

1700

RAM-Slots

4

MB-Format

micro-ATX

PCI-Ex1

2

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
