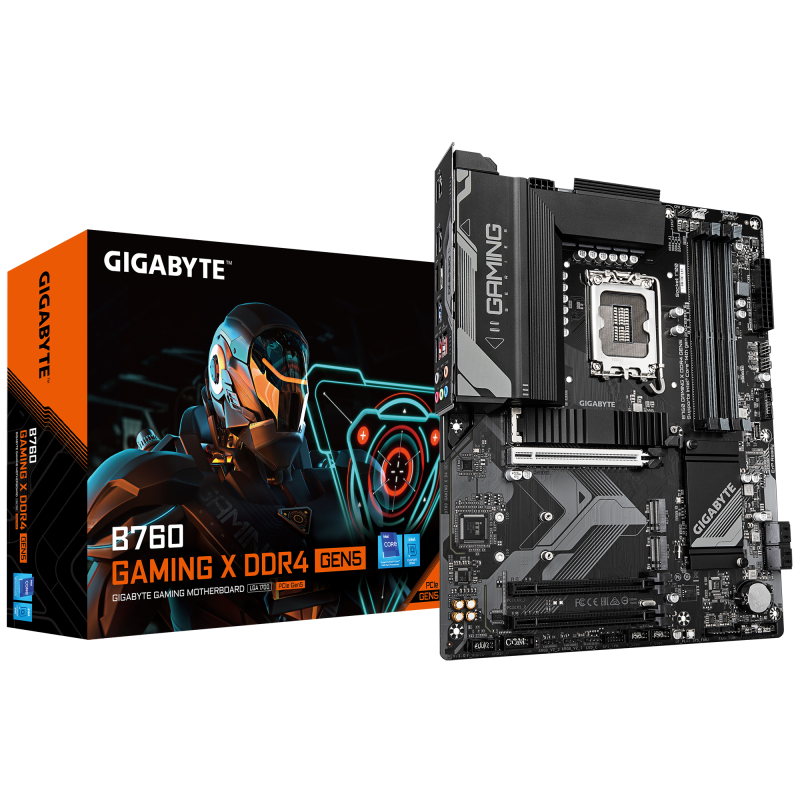

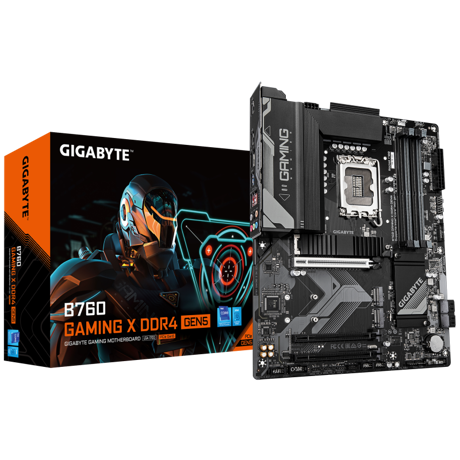

Placa de baza Gigabyte B760 GAMING X D4 GEN5

Placa de baza Gigabyte B760 GAMING X D4 GEN5

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

PCI Express x16 (Gen 3.x) slots

2

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel B760

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

S/PDIF out connector

Yes

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5333 MHz

Maximum internal memory per slot

32 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.59 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Package weight

1.8 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

DisplayPort version

1.2

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 2.0 ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

128 GB

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Height

35 mm

Width

305 mm

Depth

244 mm
