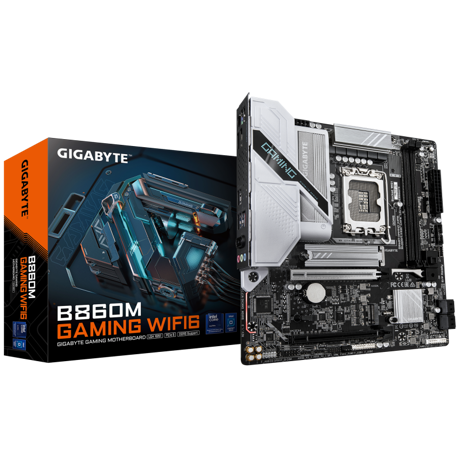

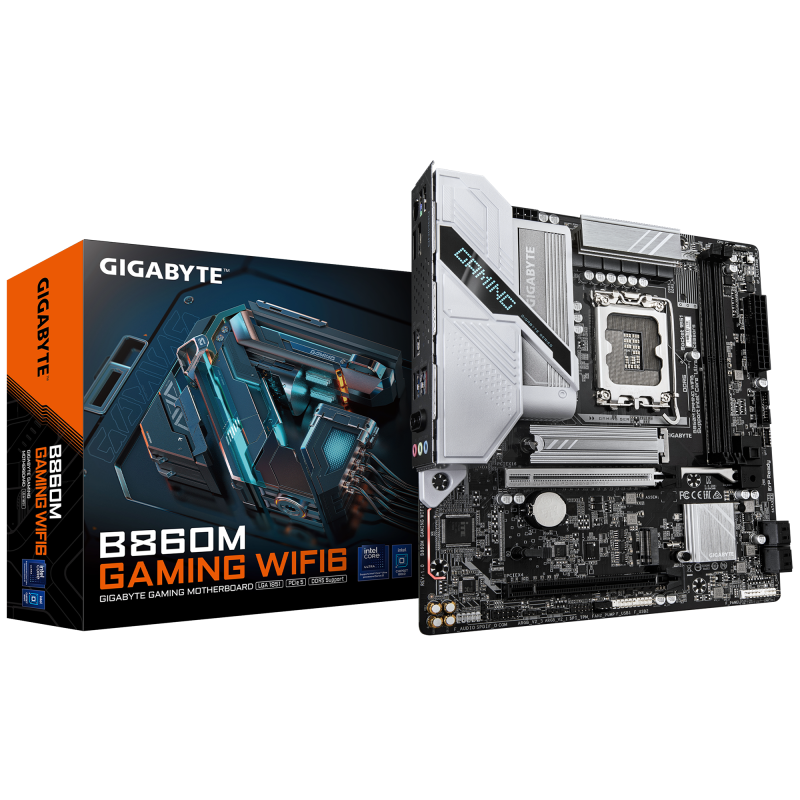

Placa de baza Gigabyte B860M GAMING WIFI6E

Placa de baza Gigabyte B860M GAMING WIFI6E

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Brown

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Thunderbolt headers

2

Number of EPS power connectors (8-pin)

1

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz

Supported memory clock speed (max)

9066 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

128 GB

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Bluetooth

Yes

Bluetooth version

5.3

Weight

12.3 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Antenna included

Yes

Screws included

Yes

Package height

68 mm

Package weight

1.29 kg

Package width

270 mm

Package depth

268 mm

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

USB 2.0 ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

6

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Height

35 mm

Width

244 mm

Depth

225 mm
