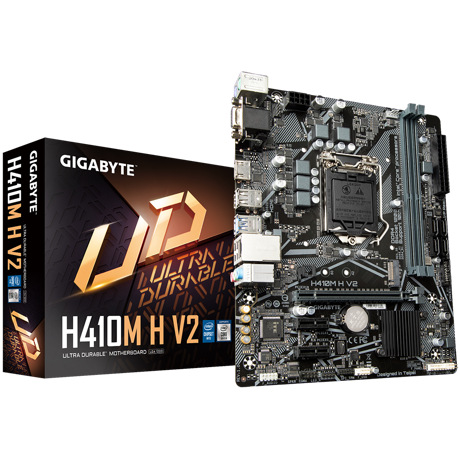

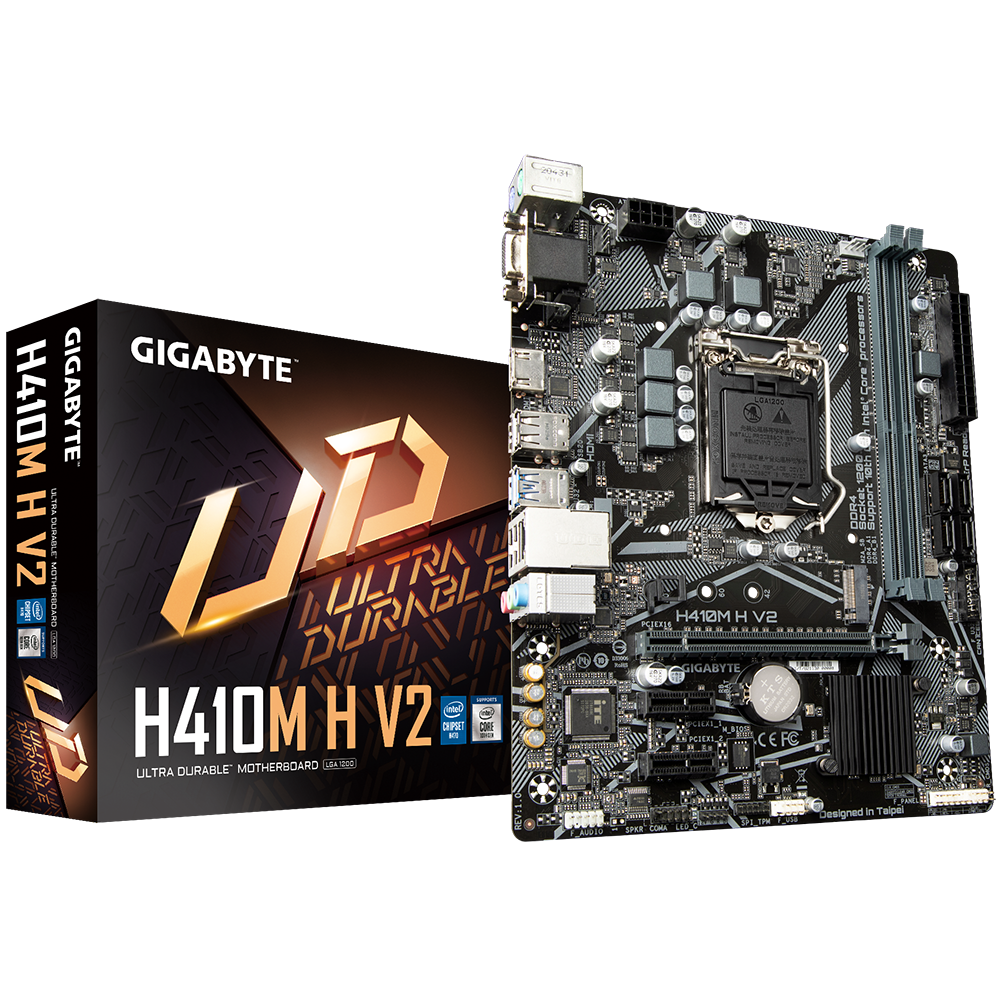

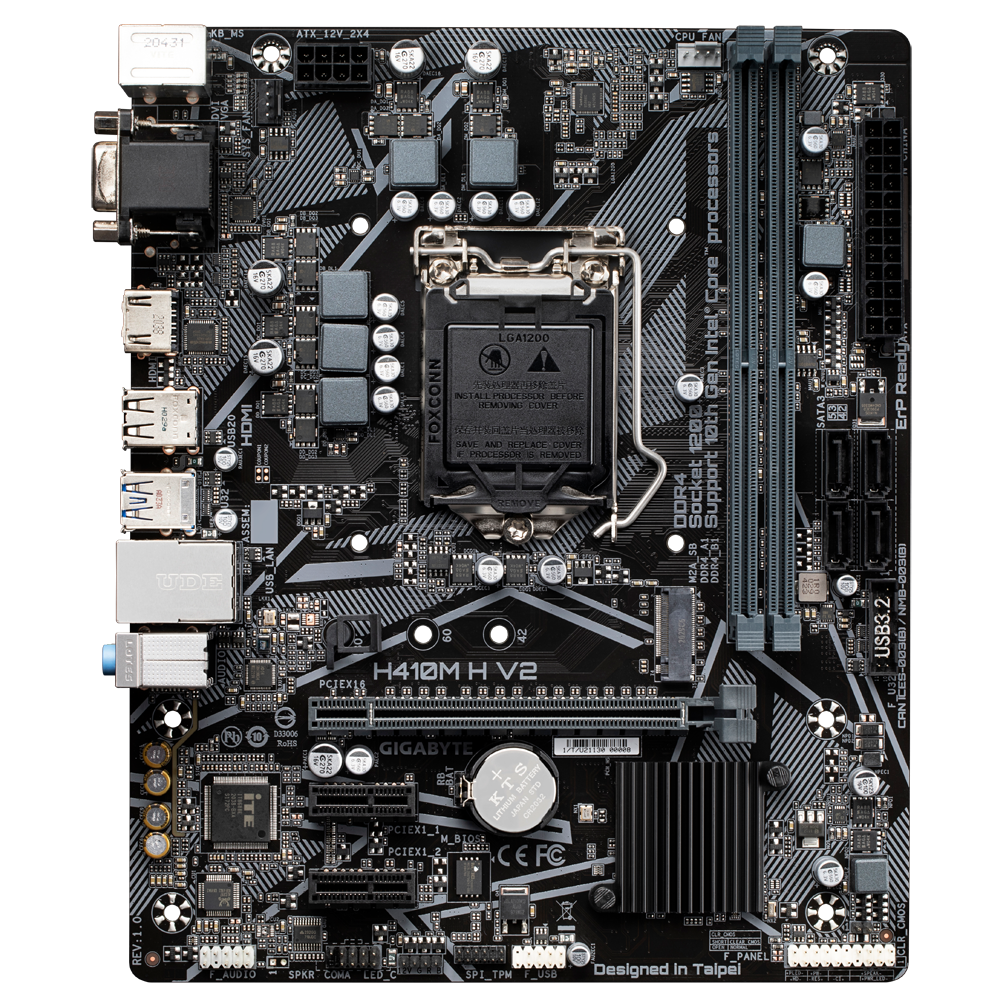

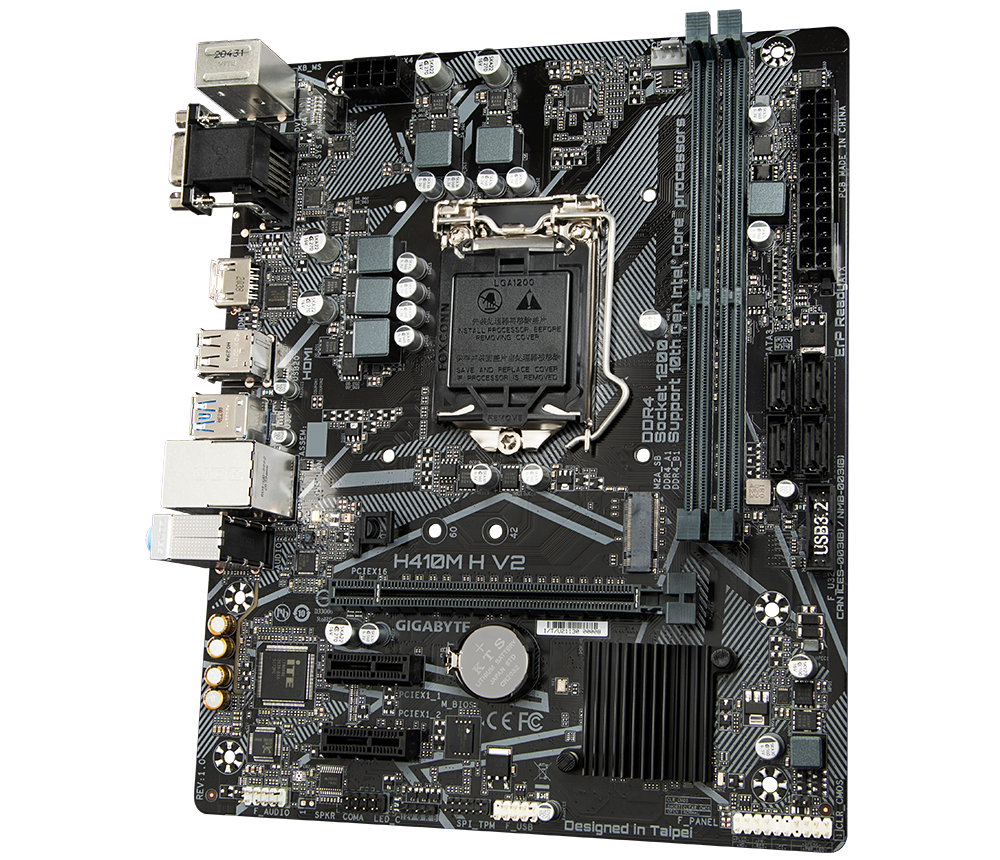

Placa de baza Gigabyte H410M H V2, LGA 1200

Placa de baza Gigabyte H410M H V2 LGA 1200 CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® H470 Express Chipset Memory Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Intel® GbE LAN chip (1 Gbit/100 Mbit)

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Clear CMOS button

Yes

BIOS type

UEFI

BIOS memory size

256 Mbit

Product colour

Brown

PCI Express x1 slots

2

PCI Express x16 (Gen 3.x) slots

1

Number of M.2 (M) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

Intel

PC health monitoring

CPU, Fan, Temperature, Voltage

Windows operating systems supported

Windows 10, Windows 11 x64

Motherboard form factor

micro ATX

Power source type

ATX

Motherboard chipset

Intel H410

DirectX version

12.0

Front panel connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Total number of SATA connectors

4

12V power connector

Yes

USB 2.0 connectors

1

Audio connector

Yes

Power fan connector

Yes

Harmonized System (HS) code

84733020

Country of origin

China

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speeds

2133,2400,2666,2933 MHz

Supported memory clock speed (max)

2933 MHz

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

64 GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

Bundled software

Norton Internet Security (OEM version) cFosSpeed

Package width

265 mm

Package depth

235 mm

Package height

52 mm

Package weight

728 g

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

Processor manufacturer

Intel

Maximum internal memory supported by processor

64 GB

Processor socket

LGA 1200 (Socket H5)

Supported processor sockets

LGA 1200 (Socket H5)

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Number of storage drives supported

5

Width

226 mm

Depth

18.5 mm

Height

35 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
