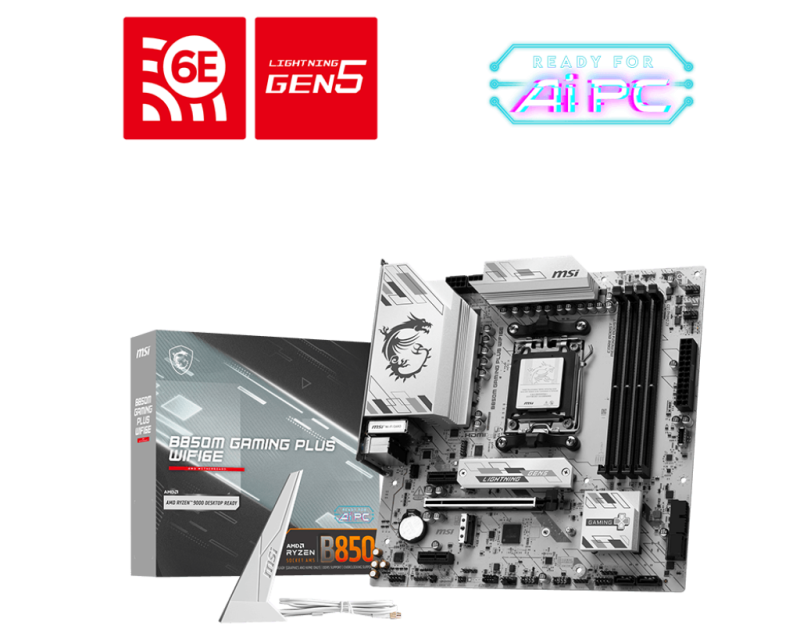

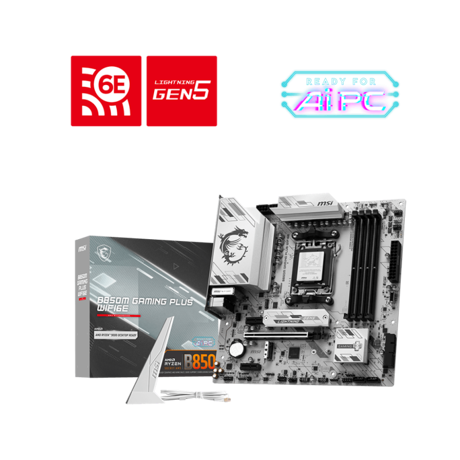

MB MSI B850M GAMING PLUS WIFI6E

MB MSI B850M GAMING PLUS WIFI6E

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

Product colour

Black

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

4.0

PCI Express x4 slots

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B850

Windows operating systems supported

Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

On-board graphics card

No

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

RGB LED pin header

Yes

Total number of SATA connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of water pump connectors

1

Number of RGB LED pin headers

3

USB 2.0 connectors

4

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

4800,6000,6400,8200 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-FI

Yes

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

LAN controller

Realtek RTL8126

Bluetooth version

5.4

mSATA ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

USB 2.0 ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

Supported storage drive interfaces

M.2

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 10

Number of HDDs supported

4

Number of storage drives supported

7

Depth

243.8 mm

Width

243.8 mm

MB-Format

ATX

RAM-Slots

4

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No
