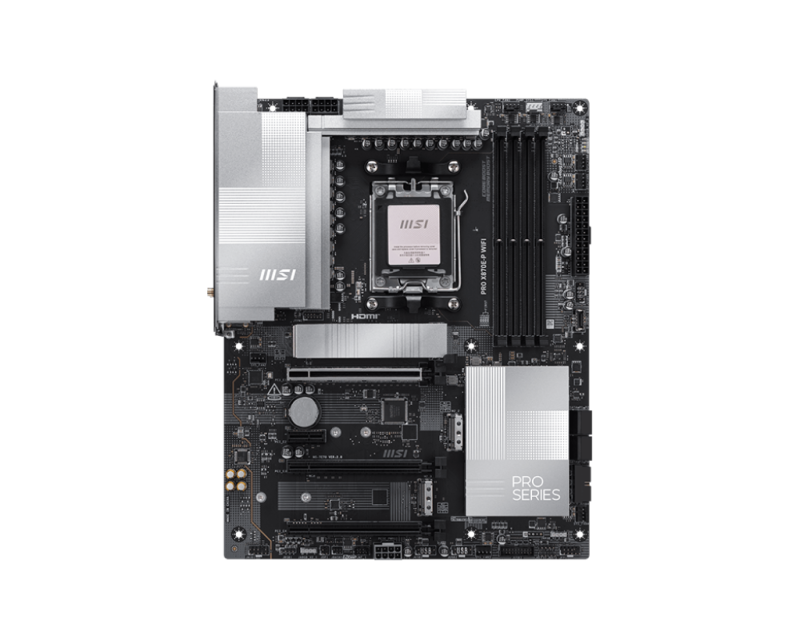

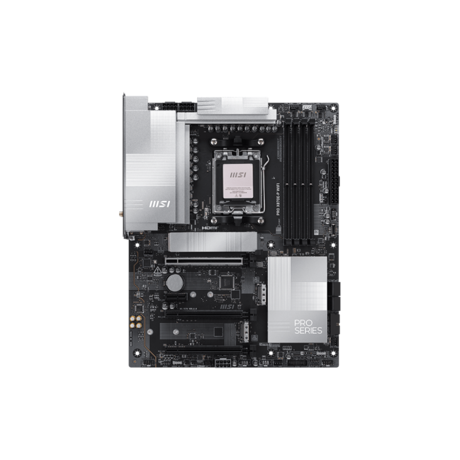

MB MSI PRO X870E-P WIFI AM5 DDR5

MB MSI PRO X870E-P WIFI AM5 DDR5

Product colour

Black

1st M.2 largest key size

2280

2nd M.2 largest key size

2580

PCI Express x1 slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 slots

3

PC health monitoring

CPU, Fan, Temperature, Voltage

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Component for

PC

Audio output channels

7.1 channels

Motherboard chipset

AMD X870E

On-board graphics card

No

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

TPM connector

Yes

RGB LED pin header

Yes

Total number of SATA connectors

4

USB 2.0 connectors

6

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Supported memory clock speeds

4800,5600,8200 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

mSATA ports quantity

0

DVI-D ports quantity

0

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

DisplayPort version

1.4

DisplayPorts quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

VGA (D-Sub) ports quantity

0

USB4 Gen 3x2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

USB4 Gen 2x2 ports quantity

1

RAID support

Yes

RAID levels

0, 1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

4

Number of HDDs supported

7

Width

243.8 mm

Depth

304.8 mm

MB-Format

ATX

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

4

PCI

0

Serial-or-Paralel

Yes/No

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No
