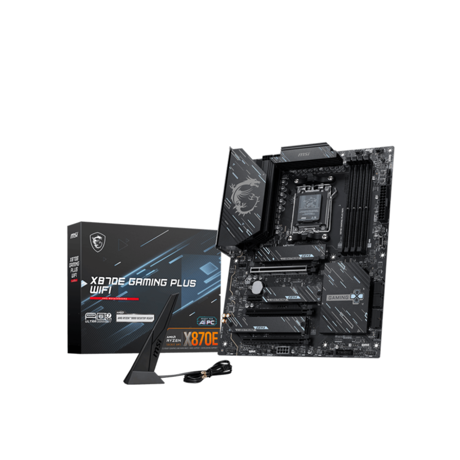

MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage

MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...

Product colour

Black

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

3

PCI Express x1 slots

1

Motherboard chipset family

AMD

Component for

PC

Audio output channels

7.1 channels

Motherboard form factor

ATX

Motherboard chipset

AMD X870E

Maximum resolution

3840 x 2160 pixels

On-board graphics card

No

Parallel processing technology support

Not supported

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of COM connectors

1

Number of chassis fan connectors

6

Chassis intrusion connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of water pump connectors

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

USB 2.0 connectors

6

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

mSATA ports quantity

0

Screws included

Yes

Cables included

SATA

Antenna included

Yes

HDMI version

2.1

USB 2.0 ports quantity

4

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

RAID support

Yes

Supported storage drive types

HDD

RAID levels

0, 1, 5, 10

Width

304.8 mm

Depth

243.8 mm
