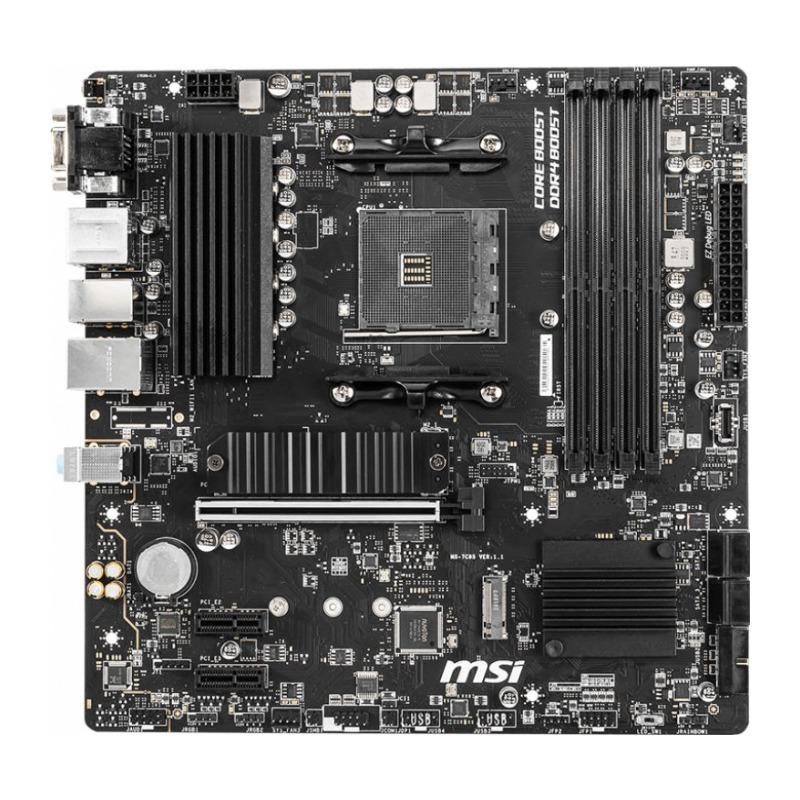

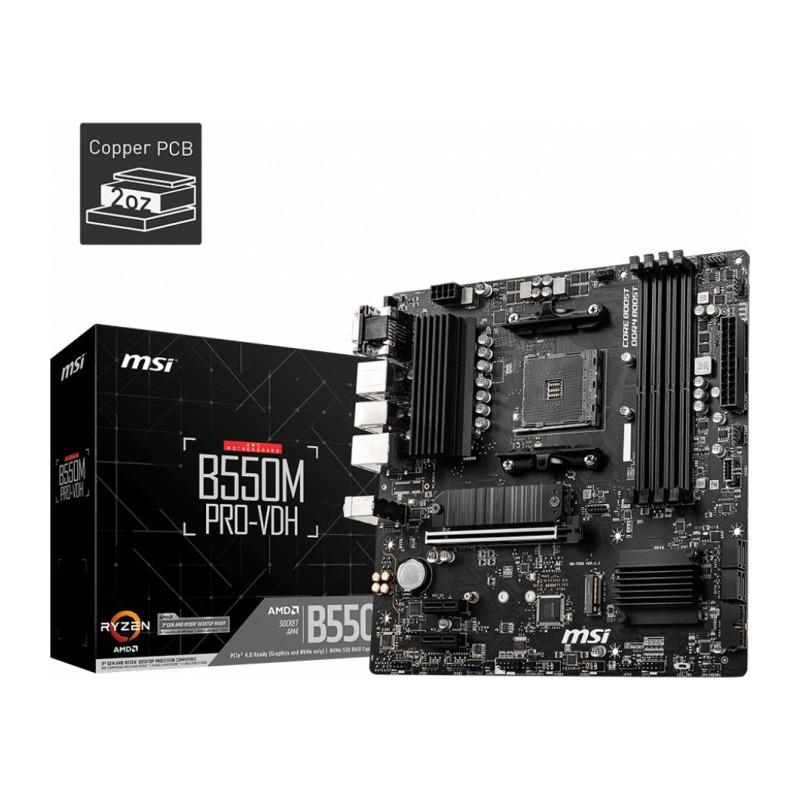

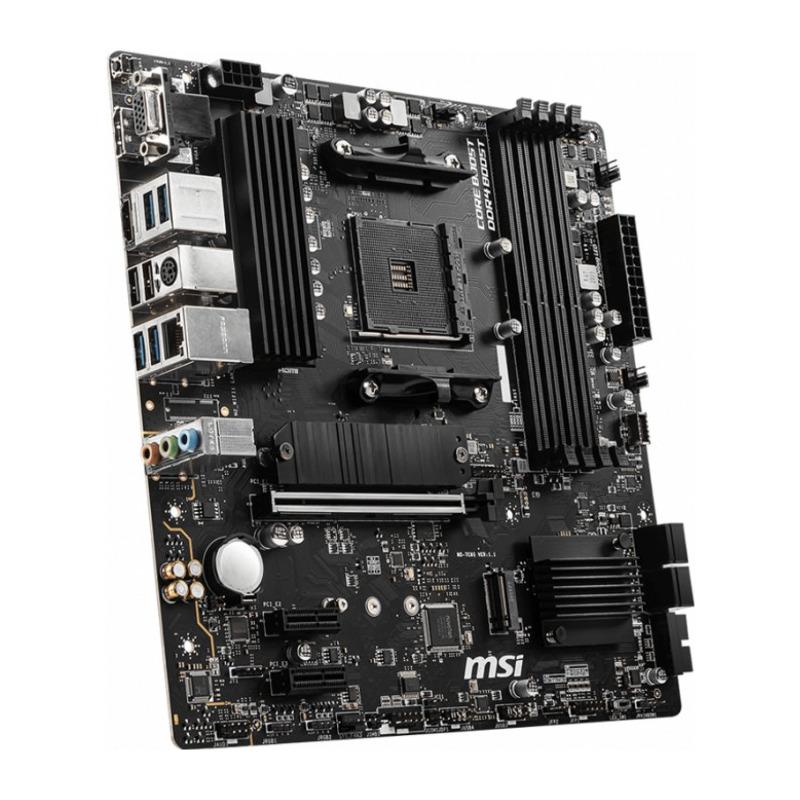

Placa de Baza MSI B550M PRO-VDH AM4

Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX

Clear CMOS jumper

Yes

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Motherboard chipset

AMD B550

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Serial port headers

1

Chassis intrusion connector

Yes

Number of chassis fan connectors

3

Supported memory clock speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Maximum internal memory

128 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek 8111HN

Drivers included

Yes

DVI-D ports quantity

0

HDMI version

2.1

USB 2.0 ports quantity

2

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPorts quantity

1

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

eSATA ports quantity

0

Firewire (IEEE 1394) ports

0

PS/2 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III

RAID levels

0, 1, 10

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
