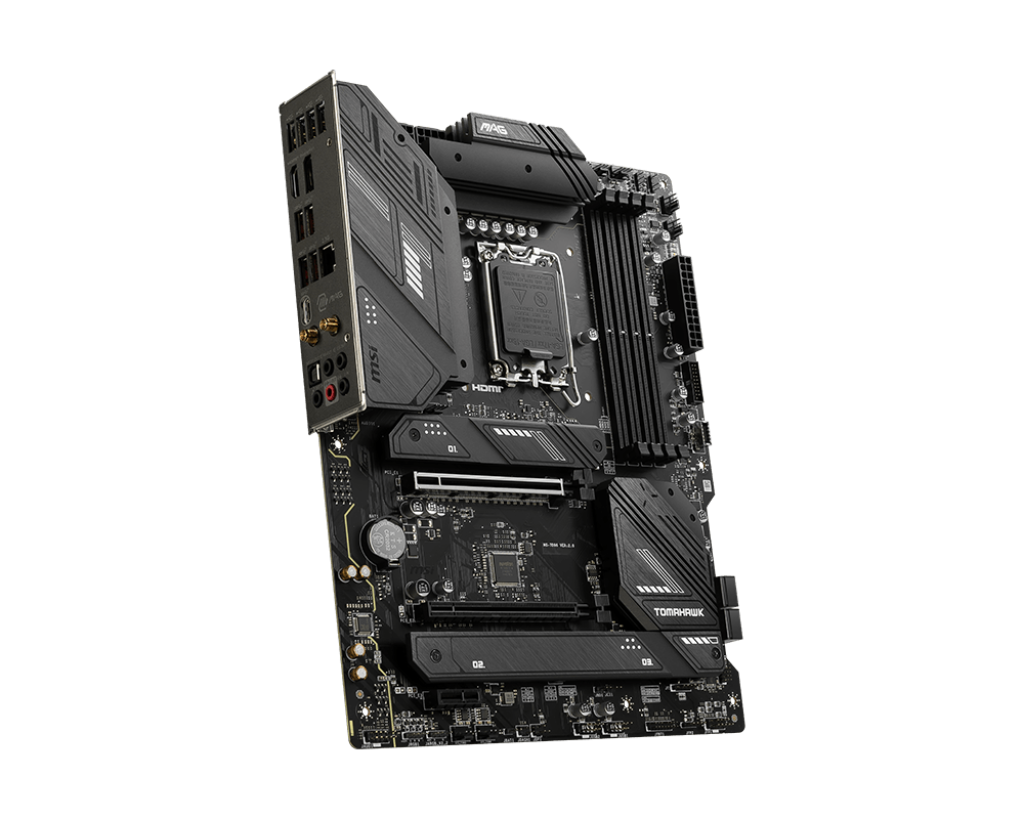

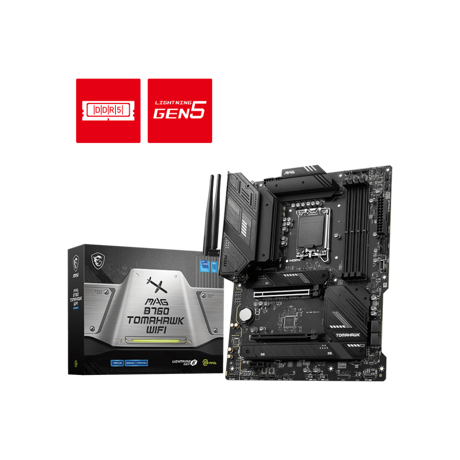

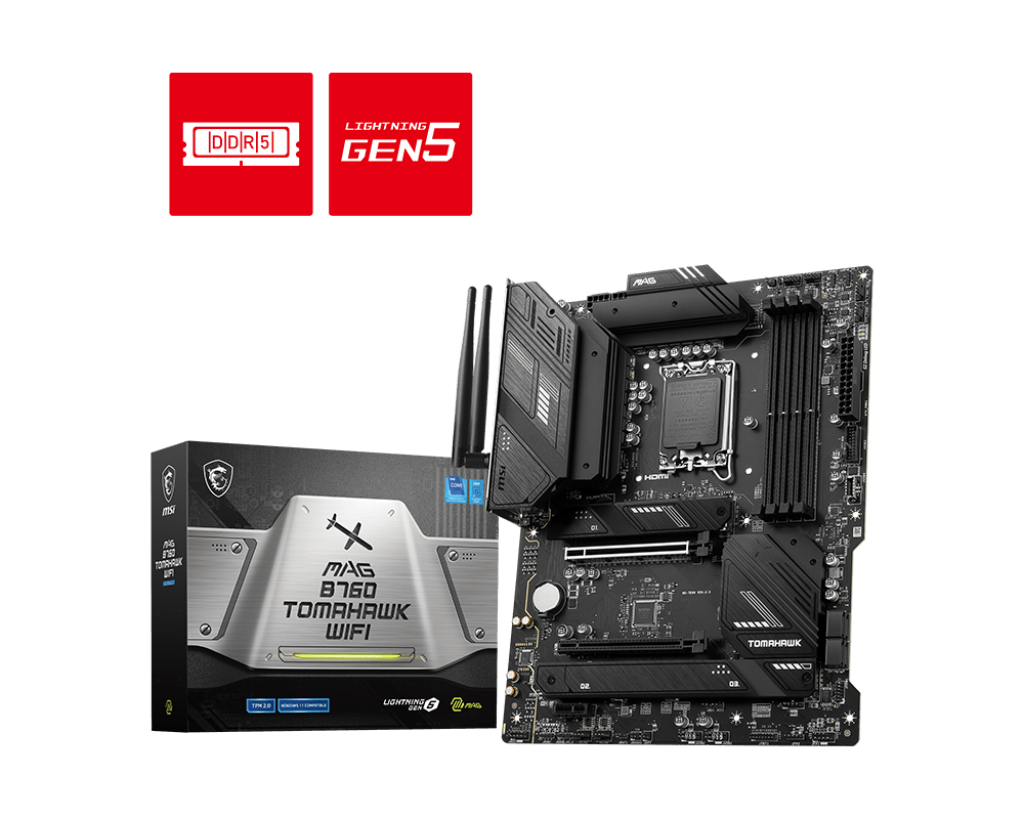

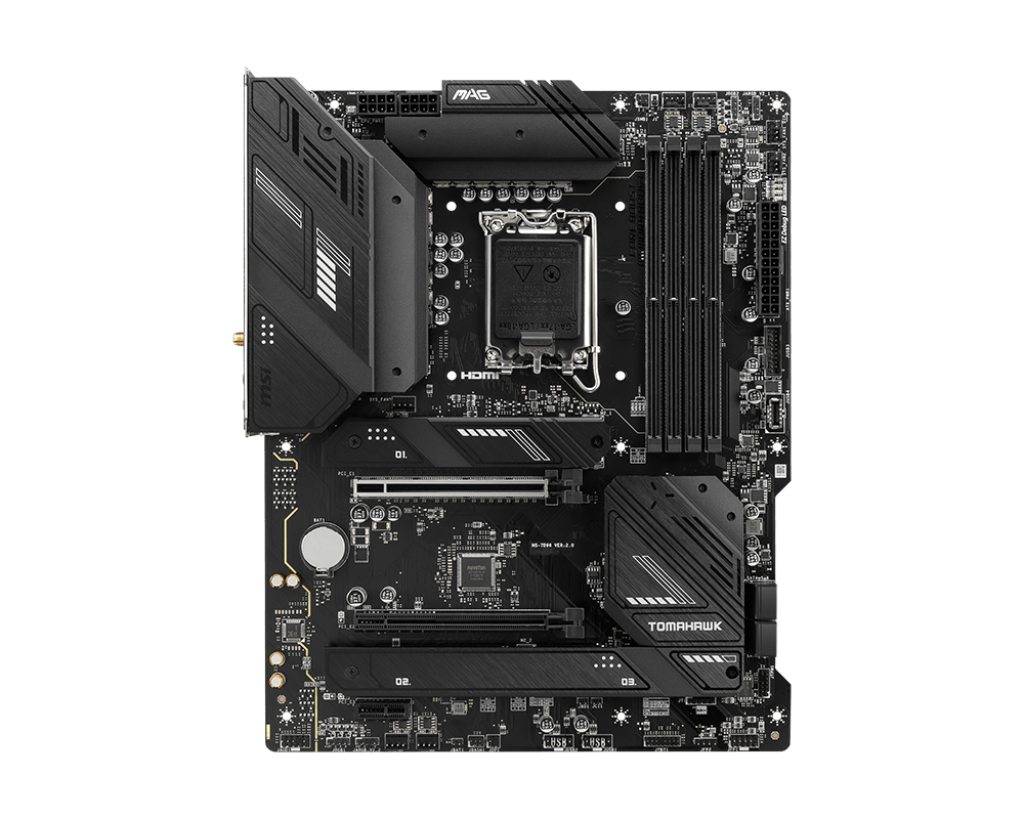

Placa de baza MSI MAG B760 TOMAHAWK WIFI LGA1700 DDR5

Placa de baza MSI MAG B760 TOMAHAWK WIFI LGA1700 SPECIFICATIONS Model Name MAG B760 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 4.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-7000+ MHz (OC) Storage 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 5x USB 3.2 Gen 2 10Gbps (Type-A + Type-C), 2x USB 3.2 Gen 1 5Gbps (Type-A), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost

Form factor

ATX

PCI

0

Slot PCI-Ex1

1

Slot PCI-Ex16

2

Slot RAM

4

Serial-or-Paralel

No/No

USB

4-8

Conectori SATA

6GB/s

Chipset

Intel

Slot M.2

3

Video output

HDMI/Display Port

Socket CPU

1700

RAM type

DDR5

Onboard-CPU

No
