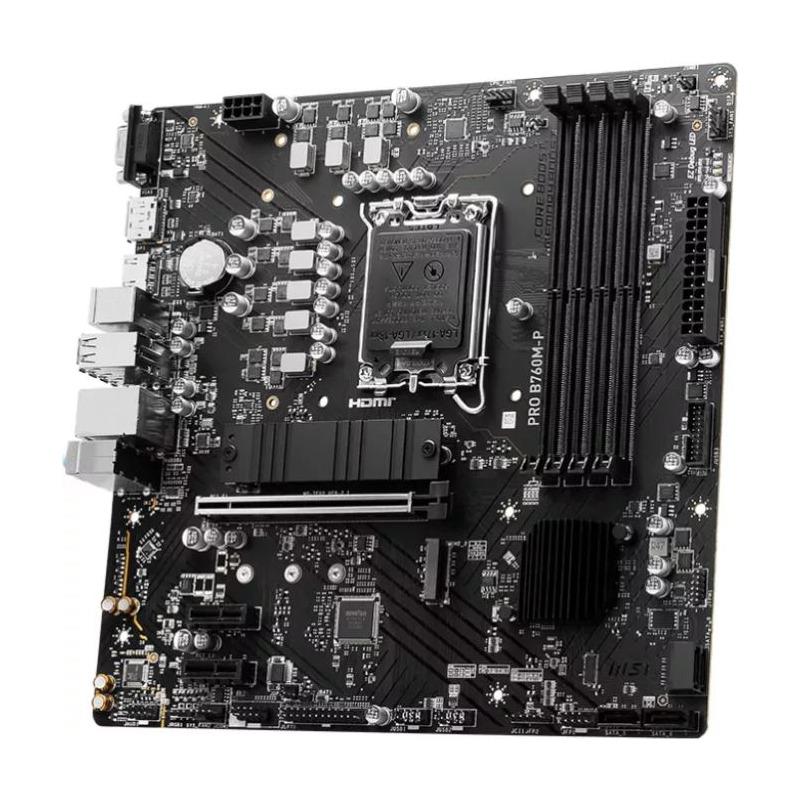

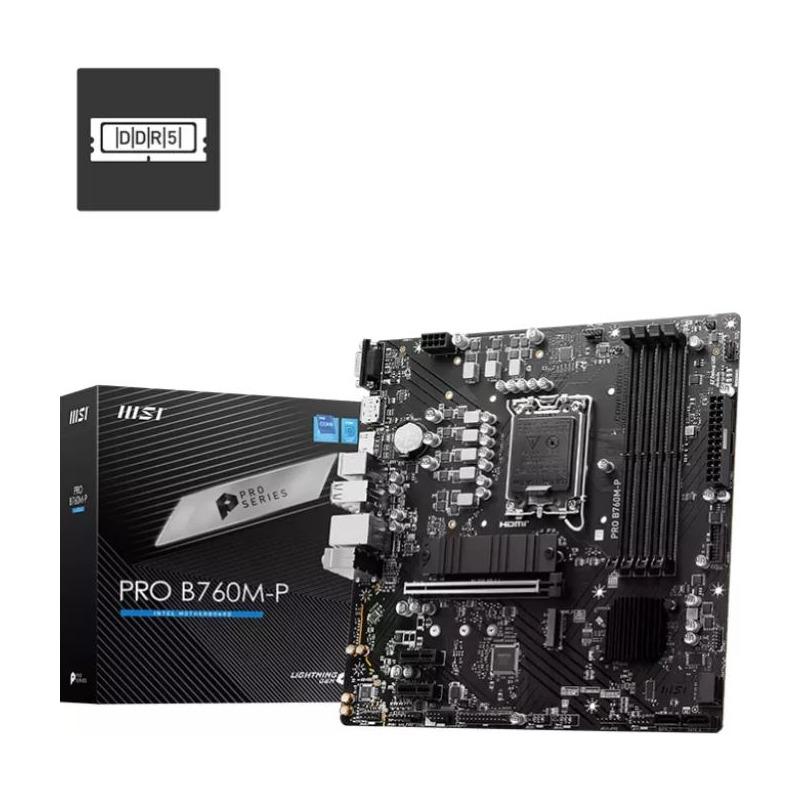

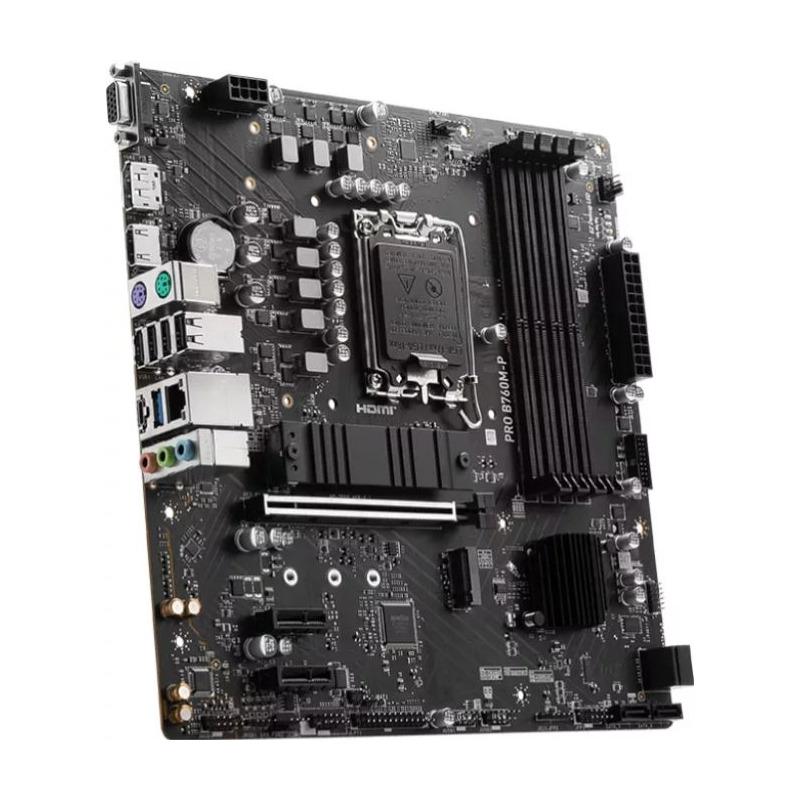

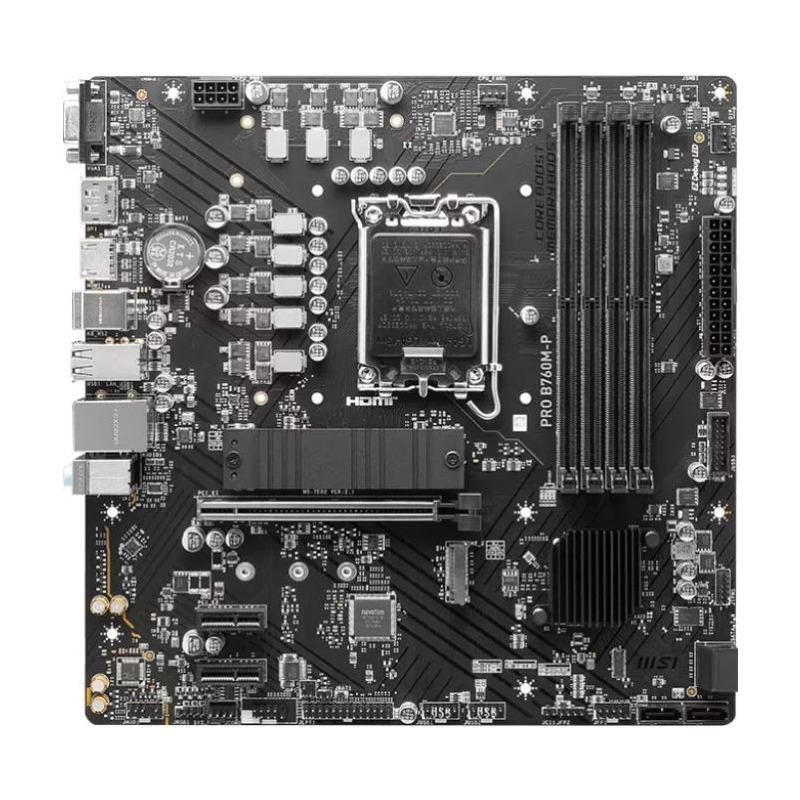

Placa de baza MSI PRO B760M-P LGA1700

Placa de baza MSI PRO B760M-P LGA1700, 4xDDR5, 1x HDMI 1x DP 1x VGA, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6 GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Parallel connector

Yes

Chassis intrusion connector

Yes

USB 2.0 connectors

4

Number of COM connectors

1

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Unbuffered memory

Yes

Maximum internal memory

192 GB

LAN controller

Realtek RTL8111H

Wi-FI

No

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

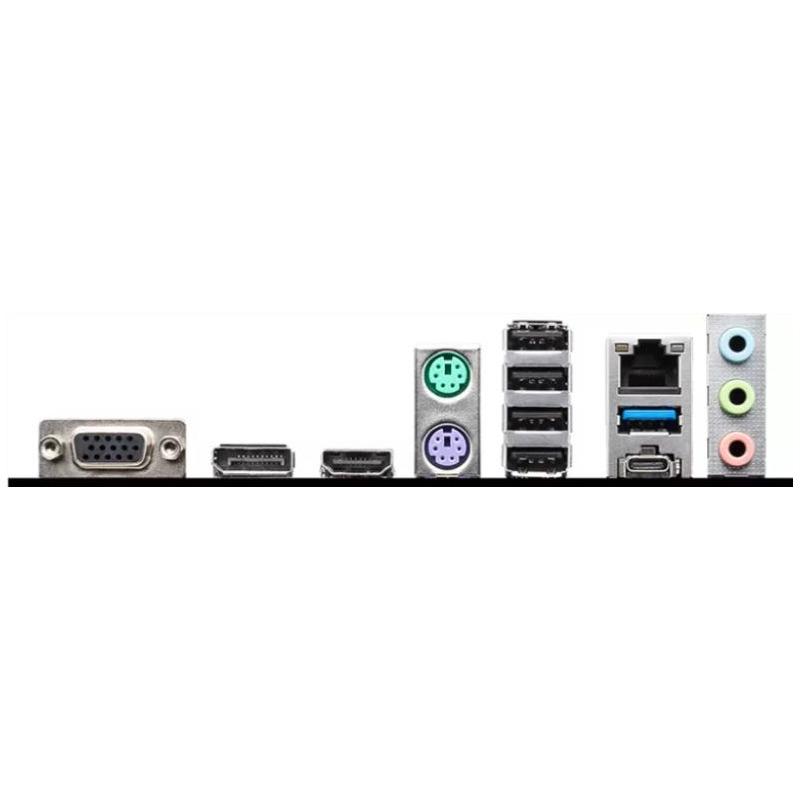

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

DisplayPort version

1.4

USB 2.0 ports quantity

4

HDMI version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

DisplayPorts quantity

1

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

Processor manufacturer

Intel

VGA (D-Sub) ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

PS/2 ports quantity

2

Number of storage drives supported

6

Supported storage drive interfaces

SATA III

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

RAID support

Yes

Supported storage drive types

HDD & SSD

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No

MB-Format

ATX

MB-Socket

1700

PCI-Ex1

2

RAM-Slots

2
