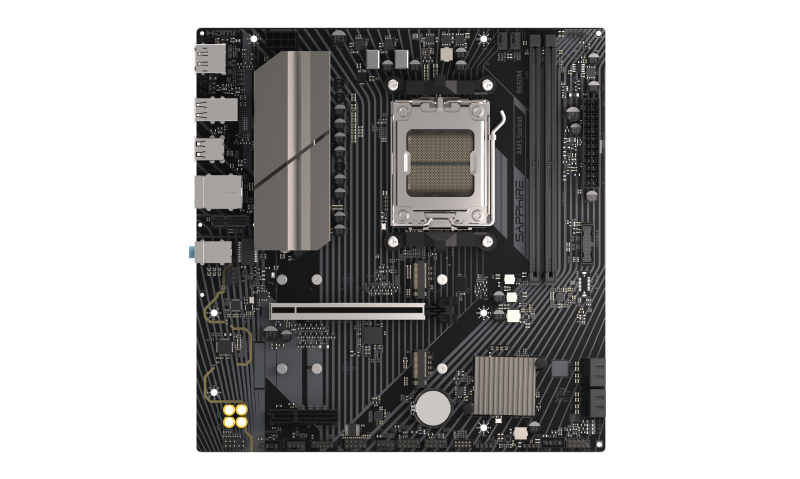

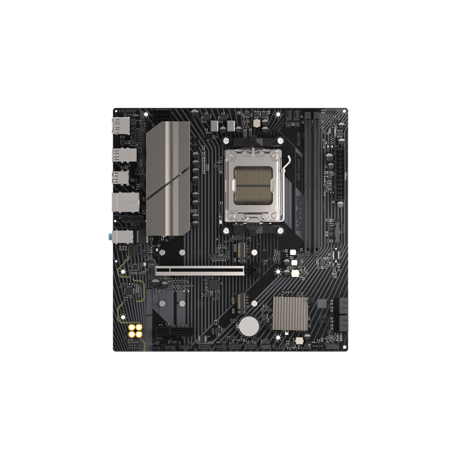

Placa de bază Sapphire B650M-E WIFI AM5

MB Sapphire B650M-E WIFI

Clear CMOS jumper

Yes

Product colour

Black

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Audio output channels

5.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 2.0 connectors

1

Number of water pump connectors

1

Audio connector

Yes

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Front panel connector

Yes

RGB LED pin header

Yes

Number of chassis fan connectors

3

Serial port headers

1

Supported memory types

DDR5-SDRAM

Memory slots type

DIMM

Supported memory clock speed (max)

7600 MHz

Maximum internal memory per slot

48 GB

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

96 GB

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

USB 2.0 ports quantity

6

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB connector type

USB Type-A

Headphone outputs

3

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

Depth

235 mm

Width

244 mm

MB-Format

ATX
