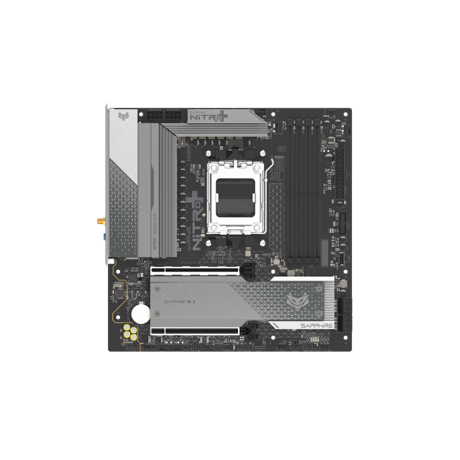

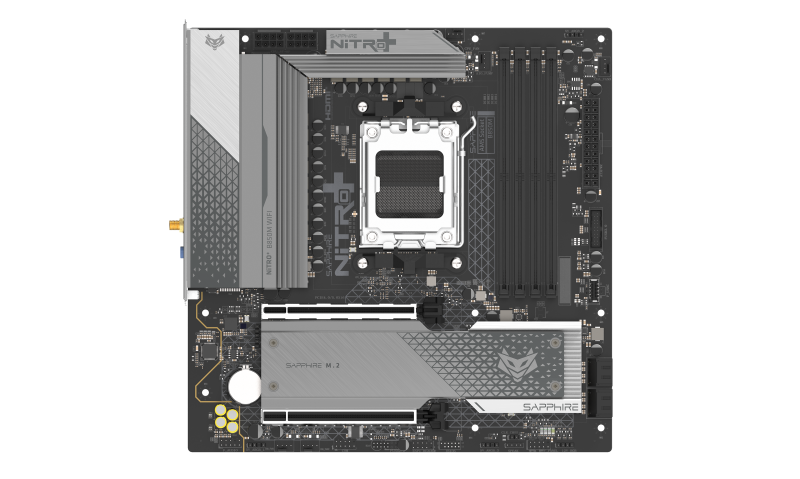

Placa de bază Sapphire NITRO+ B850M WIFI AM5

Sapphire NITRO+ B850M WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Clear CMOS jumper

Yes

Product colour

Black

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Audio Chip

Realtek ALC897

Audio output channels

5.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

Motherboard chipset

AMD B850

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Parallel processing technology support

Not supported

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of chassis fan connectors

3

USB 2.0 connectors

1

Number of water pump connectors

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Maximum internal memory per slot

48 GB

Supported memory clock speed (max)

8000 MHz

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Maximum internal memory

192 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Bluetooth

Yes

Bluetooth version

5.3

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 2.0 ports quantity

4

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPorts quantity

1

DVI-D ports quantity

0

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

WiFi-AP antenna jack

2

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

USB connector type

USB Type-A, USB Type-C

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

Headphone outputs

3

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

Depth

235 mm

Width

244 mm
