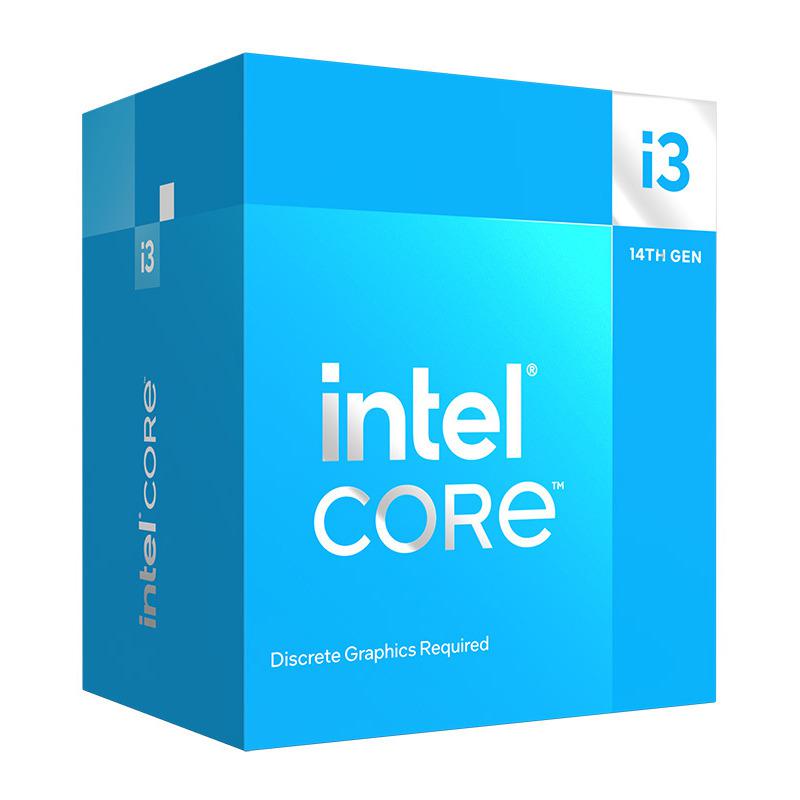

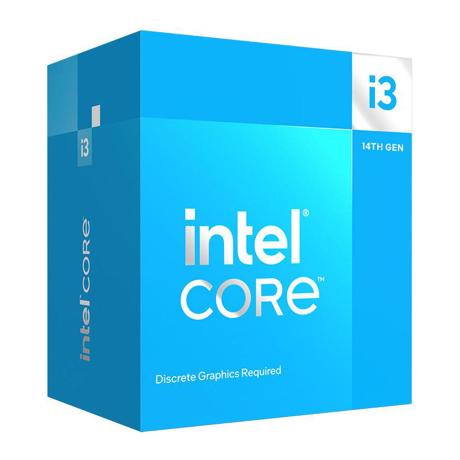

Procesor Intel Core i3-14100F Raptor Lake 3.5 GHz

Procesor Intel Core i3-14100F Raptor Lake 3.5 GHz max. 4.7 GHz, 4 cores, 12MB Intel Smart Cache, Total L2 Cache 5MB, 58W max. 110W

CPU configuration (max)

1

Embedded options available

No

Execute Disable Bit

Yes

Idle States

Yes

Thermal Monitoring Technologies

Yes

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Market segment

Desktop

Use conditions

PC/Client/Tablet

Maximum number of PCI Express lanes

20

PCI Express configurations

1x16+1x4, 2x8+1x4

Scalability

1S

Direct Media Interface (DMI) Revision

4.0

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

740.17B1

PCI Express slots version

4.0, 5.0

On-board graphics card

No

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Not available

Harmonized System (HS) code

8542310001

Memory bandwidth (max)

76.8 GB/s

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR4-SDRAM, DDR5-SDRAM

Memory channels

Dual-channel

Tjunction

100 °C

Maximum internal memory

192 GB

L2 cache

5120 KB

Memory bandwidth supported by processor (max)

76.8 GB/s

Box

Yes

Processor model

i3-14100F

Processor generation

Intel® Core™ i3 (14th gen)

Performance-core base frequency

3.5 GHz

Processor base power

58 W

Stepping

H0

Processor ARK ID

236786

Efficient cores

0

Maximum turbo power

110 W

Processor socket

LGA 1700

Cooler included

Yes

Maximum number of DMI lanes

8

Processor codename

Raptor Lake

Performance-core boost frequency

4.7 GHz

Processor operating modes

64-bit

Processor manufacturer

Intel

Processor cache

12 MB

Processor cache type

Smart Cache

Performance cores

4

Processor family

Intel® Core™ i3

Processor boost frequency

4.7 GHz

Processor threads

8

Processor cores

4

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Turbo Boost Technology

2.0

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Intel 64

Yes

Intel® Speed Shift Technology

Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Intel® Boot Guard

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Volume Management Device (VMD)

Yes

Mode-based Execute Control (MBE)

Yes

Intel® Standard Manageability (ISM)

Yes

Status

Launched

Launch date

Q1'24

Processor package size

45 x 37.5 mm
