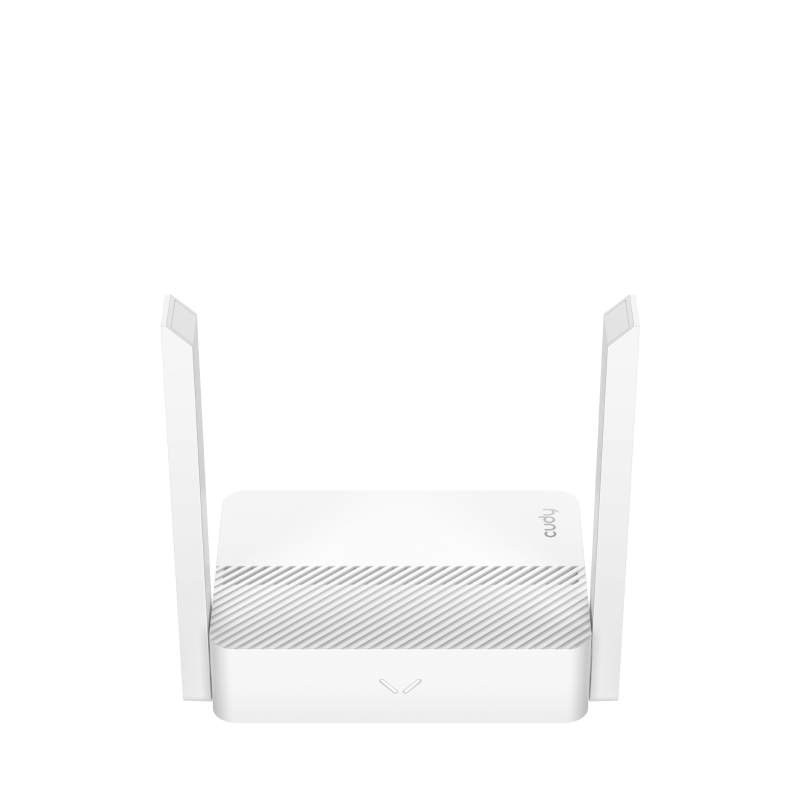

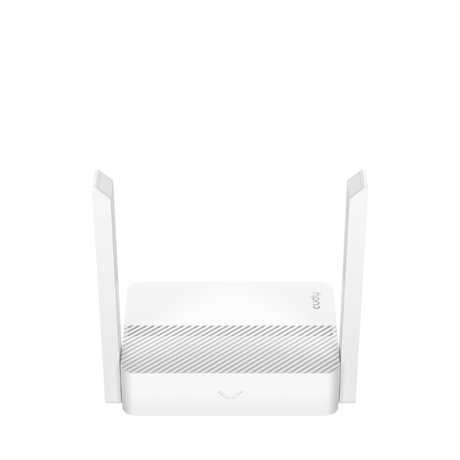

LT300 CUDY N300 WiFi 4G LTE Cat.4 Router, 300Mbps Wi-Fi, Chipset MediaTek, 802.11b/g/n, 2 Fixed antennas, 2 10/100M RJ45 Ports, Nano SIM Slot, PPTP/L2TP/OpenVPN/WireGuard VPN Client, DNS over Cloudflare/Google/Quad9, DDNS, Band locking, TTL Setting , TR069/TR098/TR111/TR181, LTE-FDD: B1/3/5/7/8/20/28

CUDY N300 WiFi 4G LTE Cat.4 Router, 300Mbps Wi-Fi, Chipset MediaTek, 802.11b/g/n, 2 Fixed antennas, 2 10/100M RJ45 Ports, Nano SIM Slot, PPTP/L2TP/OpenVPN/WireGuard VPN Client, DNS over Cloudflare/Google/Quad9, DDNS, Band locking, TTL Setting , TR069/TR098/TR111/TR181, LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41,WCDMA: B1/5/8, Cudy APP

Antenna type

2x2

Antenna design

External

Antennas quantity

2

Antenna gain level (max)

2.83 dBi

Compliance certificates

CE, Federal Communications Commission (FCC)

Product type

Tabletop router

LED indicators

LTE, System

Product colour

White

WPS push button

Yes

Reset button

Yes

ADSL

No

Ethernet LAN

Yes

Ethernet LAN interface type

Fast Ethernet

Flash memory

8 MB

Built-in processor

Yes

Processor frequency

580 MHz

MIMO

Yes

Processor cores

1

4G LTE category

4

Mobile network generation

4G

4G standard

LTE-TDD & LTE-FDD

SIM card type

NanoSIM

3G standards

WCDMA

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi band

Single-band (2.4 GHz)

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Cables included

LAN (RJ-45)

DC-in jack

Yes

Ethernet WAN

Yes

Ethernet LAN (RJ-45) ports

2

Power source type

DC

AC input frequency

50/60 Hz

Output voltage

12 V

Output current

1 A

Portabil

Da

Compatibil Mesh

Nu

Tip Antena

None

Numar porturi RJ-45

2

Band

Single Band

Suport SIM

Da

Numar antene

2

Port USB

Nu

Tehnologie

N/A

DSL WAN

No

3G/4G USB modem compatibility

No

SIM card slot

Yes

WAN connection type

RJ-45

Depth

80 mm

Width

118 mm

Height

275 mm

Weight

172.2 g

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (max)

300 Mbit/s

Frequency-Band

DualBand

WAN-Ports

1

WR-LAN-Ports

≥5

USB-Port

Yes

WiFi-Standard

b/g/n
