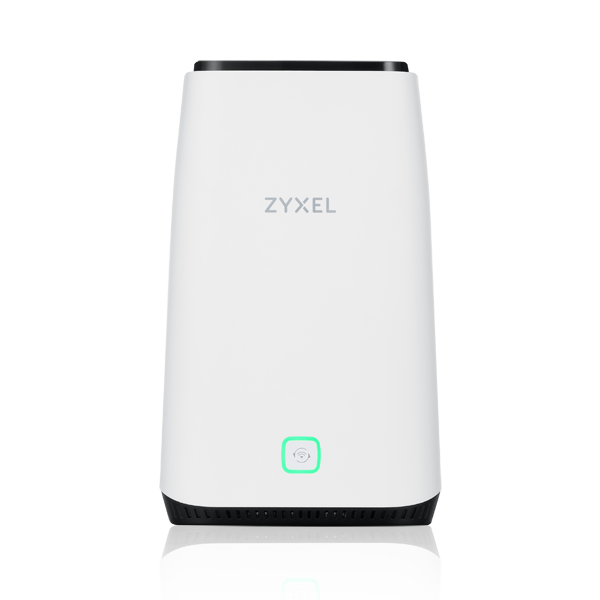

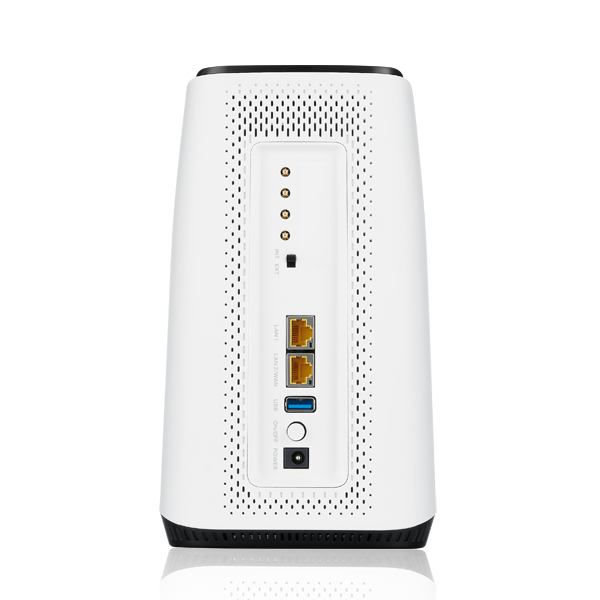

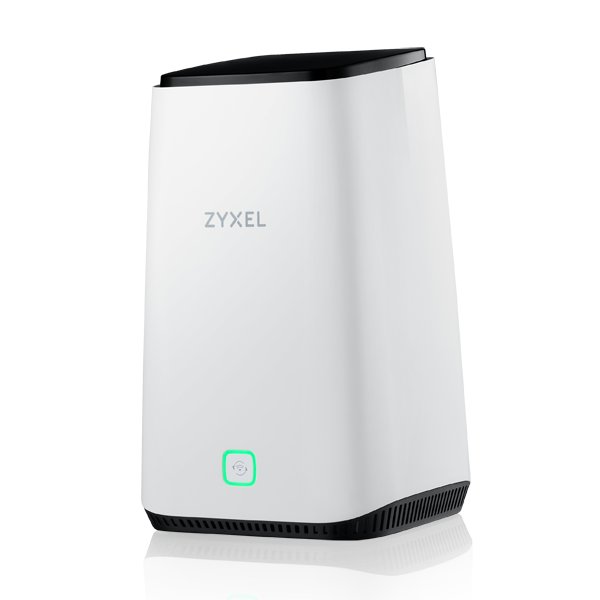

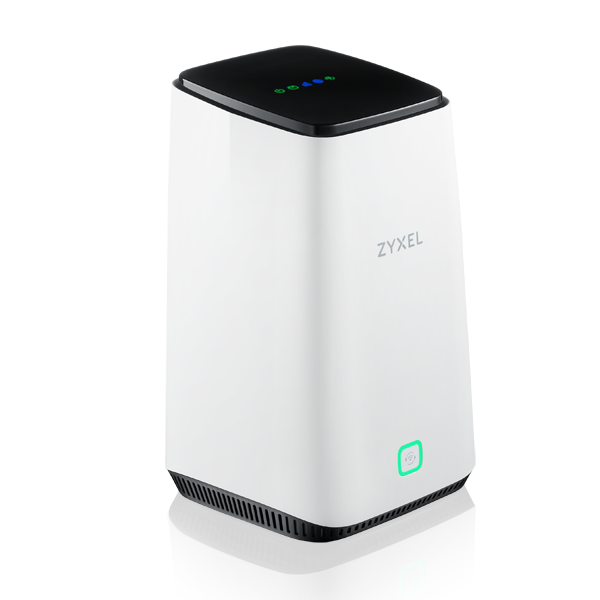

Zyxel FWA510 5G Indoor LTE Modem Router NebulaFlex Nebula 5G NR Indoor Router

Zyxel FWA510 5G Indoor LTE Modem Router NebulaFlex Nebula 5G NR Indoor Router

Antennas quantity

4

Antenna design

Internal & external

Antenna connector type

TS9

Certification

CE/Safety, RoHS, HSF

LED indicators

Activity, Link, Power, Status, WAN, WLAN, WPS

Product type

Tabletop router

Indication light

Yes

Product colour

Black, White

Country of origin

China

On/off switch

Yes

WPS push button

Yes

Reset button

Yes

ADSL

No

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

DHCP server

Yes

Ethernet LAN interface type

Multi-Gigabit Ethernet

Modulation

16-QAM, 64-QAM, 256-QAM, QPSK

Number of simultaneously connected devices (max)

64

Port forwarding

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

MIMO

Yes

Remote management

Yes

Number of data streams

4x4

4G standard

LTE-TDD & LTE-FDD

Mobile network generation

5G

5G standard

NR

SIM card type

MicroSIM

4G LTE category

19

USB sharing

Yes

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Security algorithms

WPA2, WPA3

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 5 GHz)

Static route

Yes

Dynamic DNS (DDNS)

Yes

VPN Passthrough

Yes

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-30 - 70 °C

Quick start guide

Yes

Warranty card

Yes

Cables included

LAN (RJ-45)

Package weight

1.5 kg

Package height

140 mm

Package depth

200 mm

Package width

250 mm

Ethernet WAN

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

2

Power source type

DC

Power consumption (typical)

48 W

External power adapter

Yes

DMZ support

Yes

MAC address filtering

Yes

IP address filtering

Yes

DoS attack prevention

Yes

Schedule access

Yes

Firewall

Yes

URL filtering

Yes

Network address translation (NAT)

Yes

Stateful Packet Inspection (SPI)

Yes

Filtering

Yes

DSL WAN

No

WAN connection type

RJ-45

SIM card slot

Yes

Weight

1.01 kg

Height

230 mm

Width

132.5 mm

Depth

13.4 mm

WLAN data transfer rate (first band)

1200 Mbit/s

WLAN data transfer rate (max)

2400 Mbit/s

WLAN data transfer rate (second band)

2400 Mbit/s

Frequency-Band

DualBand

Port-Type

Gigabit

WAN-Ports

1

Wireless-Speed

2200/2300MBPS

WR-LAN-Ports

4

USB-Port

No

WiFi-Standard

ac
