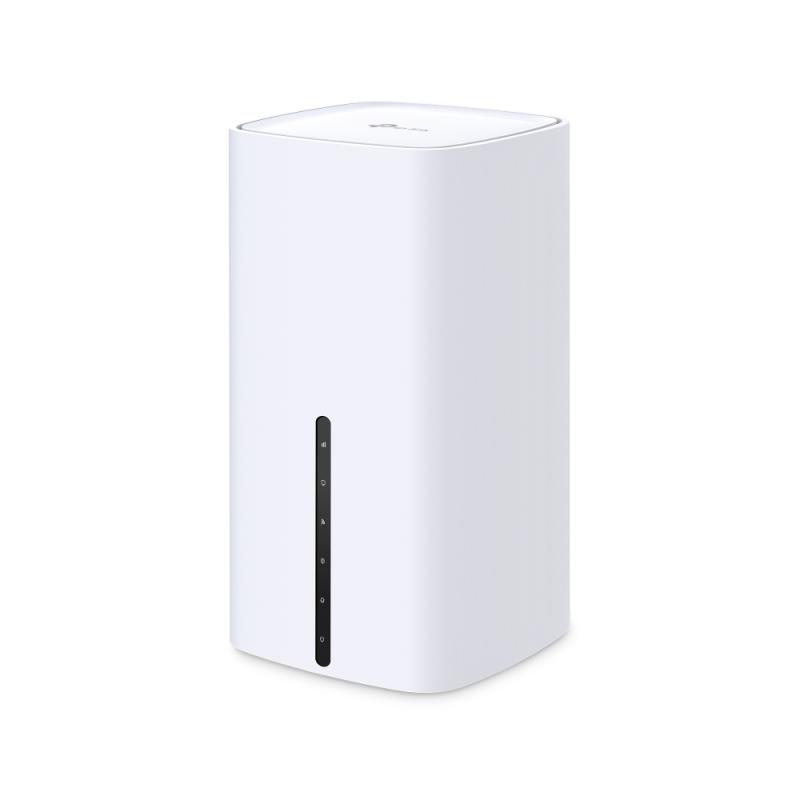

ARCHER NX600 Wireless Dual-Band 2.5 Gig Router 1 × 2.5 Gbps WAN/LAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface 1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas

5G AX3600 Wireless Dual-Band 2.5 Gig Router 1 × 2.5 Gbps WAN/LAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface 1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas

Antenna design

Internal & external

Antenna connector type

SMA

Antennas quantity

14

Reset button

Yes

WPS push button

Yes

ADSL

No

DHCP client

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Ethernet LAN interface type

Gigabit Ethernet

Supported network protocols

IPv4, IPv6

DHCP server

Yes

Quality of Service (QoS) support

Yes

Port forwarding

Yes

Universal Plug and Play (UPnP)

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Parental control

Yes

4G standard

LTE-TDD & LTE-FDD

Mobile network generation

5G

3G standards

DC-HSDPA, HSPA, HSPA+, UMTS

SIM card type

NanoSIM

5G bands supported

700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz

UMTS bands supported

850,900,2100 MHz

4G bands supported

700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz

Maximum Tx power (2.4 GHz)

20 dBmW

Maximum Tx power (5 GHz)

30 dBmW

Security algorithms

64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Number of guest networks (5 GHz)

1

Number of guest networks (2.4 GHz)

1

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Dynamic DNS (DDNS)

Yes

Port triggering

Yes

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Mac compatibility

Yes

Linux operating systems supported

Yes

Ethernet WAN

Yes

Output voltage

12 V

Output current

2 A

DMZ support

Yes

URL filtering

Yes

Guest access

Yes

IP address filtering

Yes

DoS attack prevention

Yes

Compatibil Mesh

Nu

Portabil

Nu

Port USB

Nu

Tehnologie

N/A

Tip Antena

Externa

Band

Dual Band

Numar porturi RJ-45

3

Suport SIM

Da

Numar antene

10

SIM card slot

Yes

WAN connection type

RJ-45

DSL WAN

No

Frequency-Band

DualBand

WAN-Ports

1

Wireless-Speed

1750Mbps

WR-LAN-Ports

4

USB-Port

Yes

WiFi-Standard

ax
