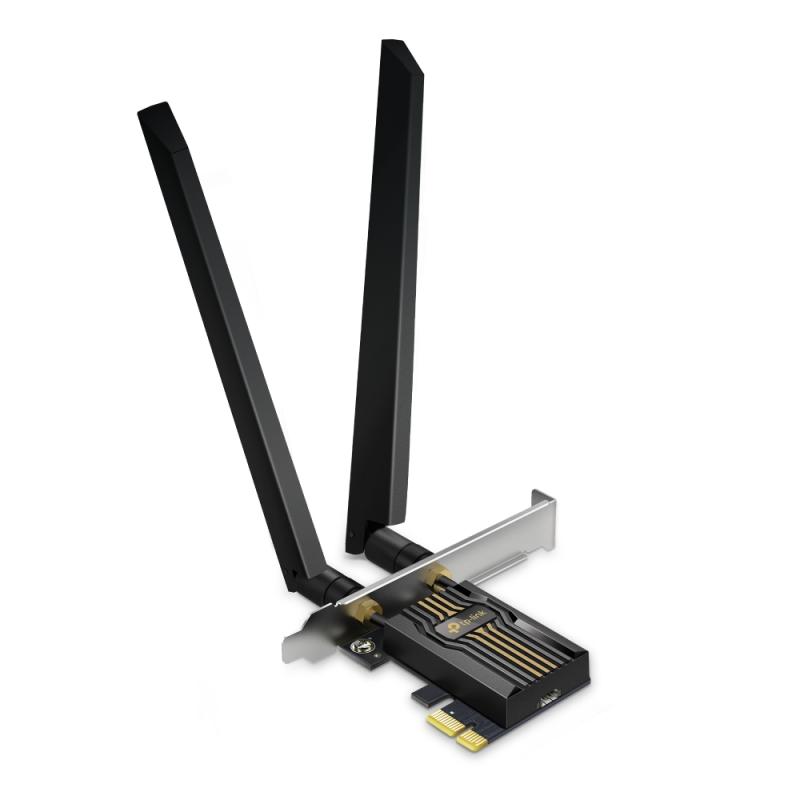

ARCHER TBE552E BE9300 Tri-Band Wi-Fi 7 Bluetooth PCI Express Adapter SPEED: 5760 Mbps at 6 GHz + 2880 Mbps at 5 GHz + 688 Mbps at 2.4 GHz SPEC: 2× High Gain Tri-Band External Antennas FEATURE: Wi-Fi 7, MLO, Multi-RU, 4096 QAM, 320MHz, MU-MIMO, OFDMA, WPA3, Bluetooth 5.4

BE9300 Tri-Band Wi-Fi 7 Bluetooth PCI Express Adapter SPEED: 5760 Mbps at 6 GHz + 2880 Mbps at 5 GHz + 688 Mbps at 2.4 GHz SPEC: 2× High Gain Tri-Band External Antennas FEATURE: Wi-Fi 7, MLO, Multi-RU, 4096 QAM, 320MHz, MU-MIMO, OFDMA, WPA3, Bluetooth 5.4

Antenna type

2x2

Antenna design

External

Antenna direction type

Omni-directional

Antenna gain level (max)

-95 dBi

Certification

FCC/CE/IC/NCC/JRF/VCCI/BSMI

Maximum data transfer rate

5760 Mbit/s

Transmitting power (FCC)

20 - 24 dBm

Transmitting power (CE)

20 dBm

Antenna

Yes

Internal

No

Component for

PC

ADSL

No

Modulation

4096-QAM

Windows operating systems supported

Windows 11 x64

Frequency range

2.4 - 6 GHz

Bluetooth version

5.4

WLAN data transfer rates supported

11,54,300,574,1732,2402,688,2880 Mbit/s

Security algorithms

WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

0 - 40 °C

Quick installation guide

Yes

Mounting brackets included

Yes

Resource CD

Yes

Mounting bracket(s) included

Yes

Host interface

PCI Express

Interface

WLAN / Bluetooth

Connectivity technology

Wireless

Suport SIM

Nu

Portabil

Nu

Band

Tri - Band

Numar antene

2

Tehnologie

WIFI 7

Port USB

Da

Numar porturi RJ-45

N/A

Tip Antena

Externa

Compatibil Mesh

Da

Frequency-Band

DualBand

WAN-Ports

1

Wireless-Speed

1750Mbps

WR-LAN-Ports

4

USB-Port

Yes

WiFi-Standard

ax
