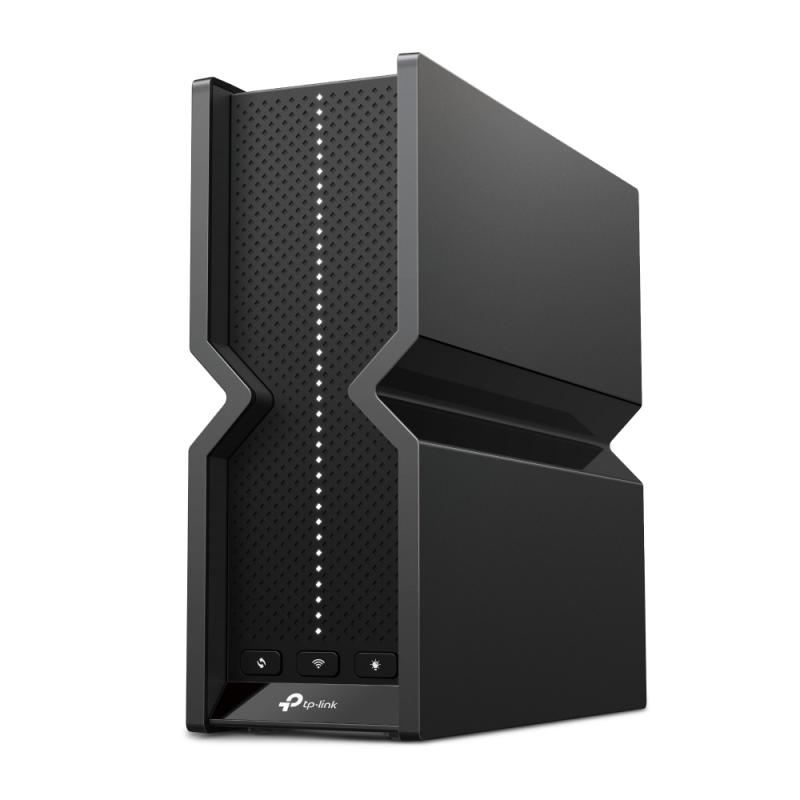

Tri Band Wi-Fi 7 ARCHER BE700 Router SPEED: 688 Mbps at 2.4 GHz + 2882 Mbps at 5 GHz + 11528 Mbps at 6 GHz SPEC: 6× Internal Antennas, Quad-Core CPU, 1*10Gbps WAN port +1*2.5 Gbps LAN port+3*1 Gbps LAN port, 1*USB 3.0 Port, MLO, 4096-QAM, OFDMA,HE160 on 5GHz, HE320 on 6GHz FEATURE: Tether App, WPA3

Tri Band Wi-Fi 7 Router SPEED: 688 Mbps at 2.4 GHz + 2882 Mbps at 5 GHz + 11528 Mbps at 6 GHz SPEC: 6× Internal Antennas, Quad-Core CPU, 1*10Gbps WAN port +1*2.5 Gbps LAN port+3*1 Gbps LAN port, 1*USB 3.0 Port, MLO, 4096-QAM, OFDMA,HE160 on 5GHz, HE320 on 6GHz FEATURE: Tether App, WPA3, Access Point Mode, IPv6 Supported, IPTV, Beamforming, Smart Connect, Airtime Fairness, VPN Server, VPN Client, DFS, Cloud Support, HomeShield, Easymesh (Compatible with Onemesh), IoT Network

Antenna design

Internal

Antennas quantity

6

Certification

CE, FCC, RoHS

Built-in display

Yes

Product type

Tabletop router

WPS push button

Yes

Ethernet LAN data rates

25000 Mbit/s

DHCP client

Yes

Ethernet LAN

Yes

DHCP server

Yes

Networking standards

IEEE 802.1x

Ethernet LAN interface type

Multi-Gigabit Ethernet

Parental control

Yes

Number of simultaneously connected devices (max)

100

Modulation

4096-QAM, OFDMA

Quality of Service (QoS) support

Yes

Port forwarding

Yes

MU-MIMO technology

Yes

Universal Plug and Play (UPnP)

Yes

Intelligent Mesh technology

Yes

Web-based management

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Media server

Yes

Port triggering

Yes

Dynamic DNS (DDNS)

Yes

Built-in FTP server

Yes

VPN server

OpenVPN, PPTP, L2TP, WireGuard

Security algorithms

WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3

Number of guest networks (2.4 GHz)

1

Number of guest networks (5 GHz)

1

Number of guest networks (6 GHz)

1

Operating temperature (T-T)

0 - 40 °C

Number of products included

1 pc(s)

Quick installation guide

Yes

Cables included

LAN (RJ-45)

Package type

Box

Ethernet LAN (RJ-45) ports

4

Ethernet WAN

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Fiber optic connector

SFP+

Output voltage

12 V

Power source type

AC

Output current

3.3 A

DMZ support

Yes

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

Network address translation (NAT)

Yes

Guest access

Yes

Firewall

Yes

DoS attack prevention

Yes

Stateful Packet Inspection (SPI)

Yes

Filtering

Yes

Browser supported

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

WAN connection type

RJ-45

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Width

76 mm

Depth

231.7 mm

Height

203 mm

WLAN data transfer rate (max)

19000 Mbit/s

WLAN data transfer rate (first band)

1376 Mbit/s

WLAN data transfer rate (second band)

5760 Mbit/s

WLAN data transfer rate (third band)

11520 Mbit/s

Frequency-Band

TriBand

Port-Type

Gigabit

WAN-Ports

1

WR-LAN-Ports

4

USB-Port

Yes

WiFi-Standard

be
