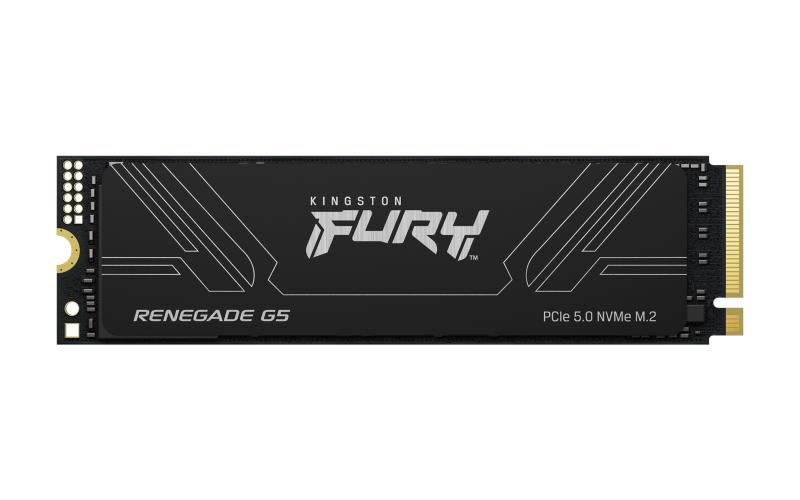

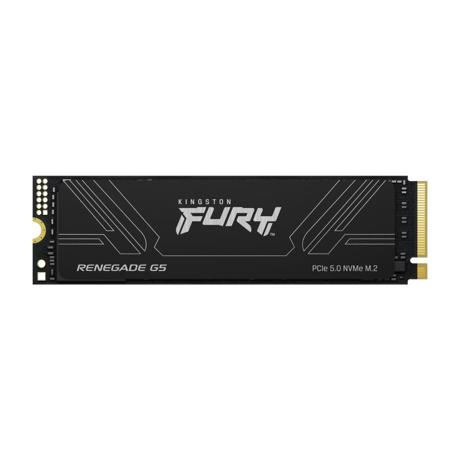

SSD Kingston 8T FURY RENEGADE G5 M.2 2280 NVMe SSD

SSD Kingston 8T FURY RENEGADE G5 M.2 2280 NVMe SSD

Interface

PCI Express 5.0

M.2 SSD size

2280 (22 x 80 mm)

SSD capacity

8 TB

External DDR cache

Yes

PCI Express interface data lanes

x4

Mean time between failures (MTBF)

2000000 h

SSD form factor

M.2

NVMe

Yes

Memory type

3D TLC

Component for

PC/Laptop

Read speed

14800 MB/s

Random read (4KB)

2200000 IOPS

Write speed

14000 MB/s

Random write (4KB)

2200000 IOPS

Controller type

SMI SM2508

Master (outer) case gross weight

843.91 g

Country of origin

China, Taiwan

Master (outer) case length

222.2 mm

Master (outer) case height

184.2 mm

Products per master (outer) case

20 pc(s)

Master (outer) case width

139.7 mm

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

0 - 70 °C

Operating vibration

2.17 G

Non-operating vibration

20 G

Package weight

33.6 g

Package width

72.4 mm

Package height

128.5 mm

Package depth

175 mm

Power consumption (max)

9.5 W

Power consumption (average)

0.27 W

Width

22 mm

Depth

80 mm

Height

38 mm

Weight

89 g

SSD-Interface

PCI-E

SSD-Capacity

7680GB
