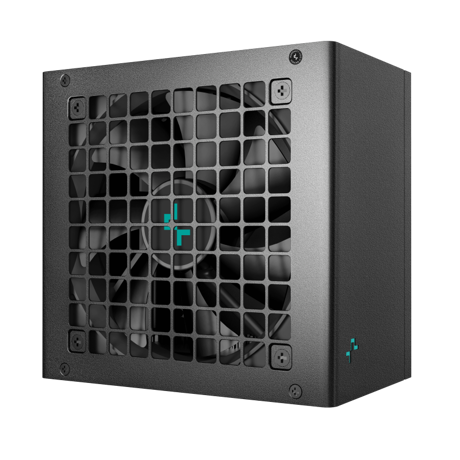

DeepCool PN750M. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS

DeepCool PN750M. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Compliance certificates

CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE

On/off switch

Yes

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

Product colour

Black

Warranty period

10 year(s)

Operating temperature (T-T)

0 - 40 °C

Cable ties included

Yes

Cable tie(s) included

Yes

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Package type

Box

ATX version

3.1

Bearing technology

FDB

80 PLUS certification

80 PLUS Gold

Power supply unit (PSU) form factor

ATX

Mean time between failures (MTBF)

100000 h

Purpose

PC

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

55 cm

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

Number of SATA power connectors

8

Cabling type

Fully-Modular

PCI Express power connectors (6+2 pin)

3

PCI Express power connectors (16-pin)

1

Peripheral (Molex) power connectors (4-pin)

2

SATA power cable length

450,570,690,810 mm

Peripheral (Molex) power cable length

930 mm

CPU power cable length

70 cm

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Max output current (+12V)

0.3 A

Combined power (+12V)

3.6 W

Input current

10 - 5 A

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+5V)

110 W

Efficiency

90%

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

110 W

Max output current (+5Vsb)

3 A

Total power

750 W

Combined power (+5Vsb)

15 W

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Sustainability certificates

ErP, Triman

Depth

140 mm

Height

86 mm

Width

150 mm
