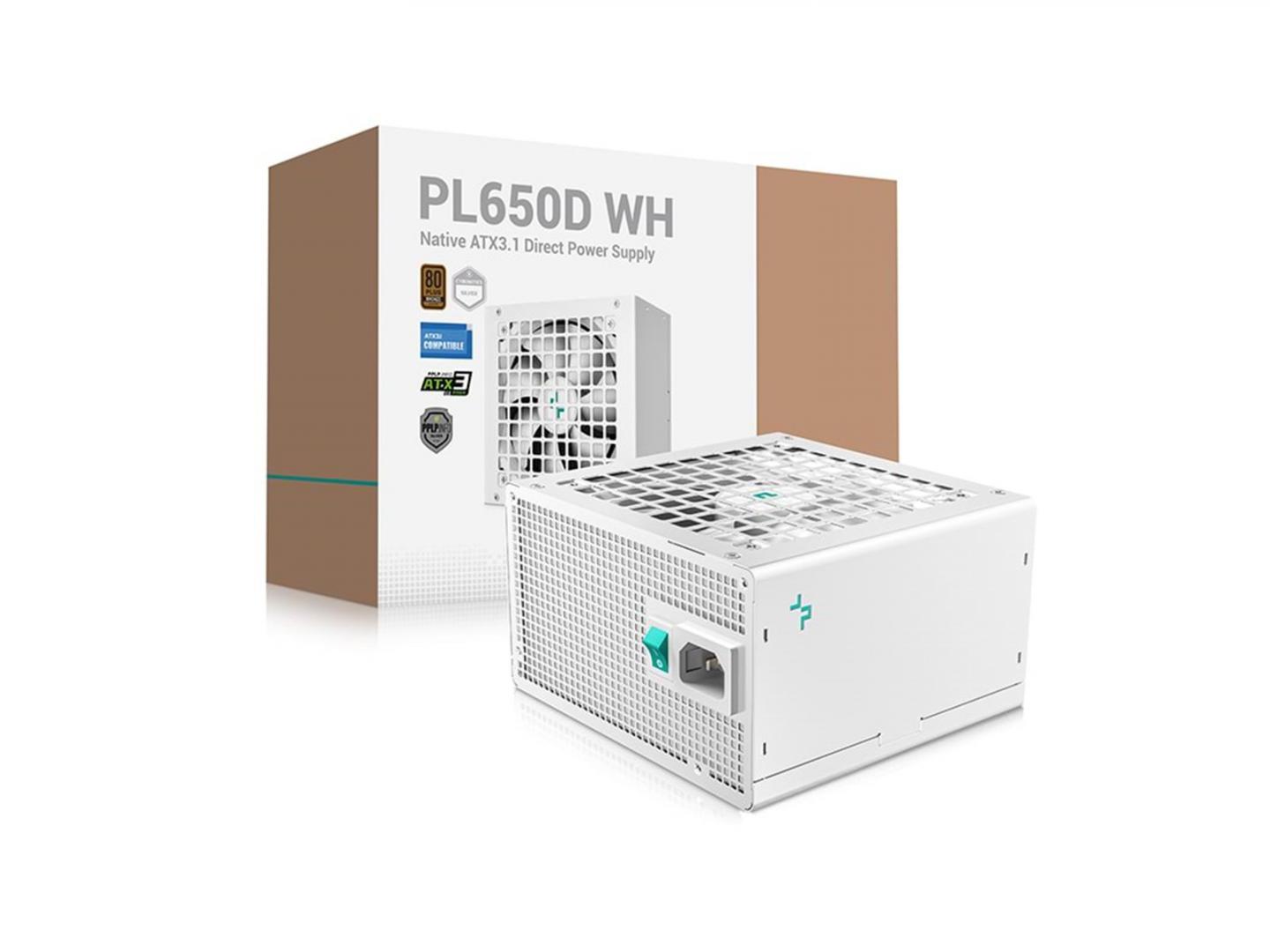

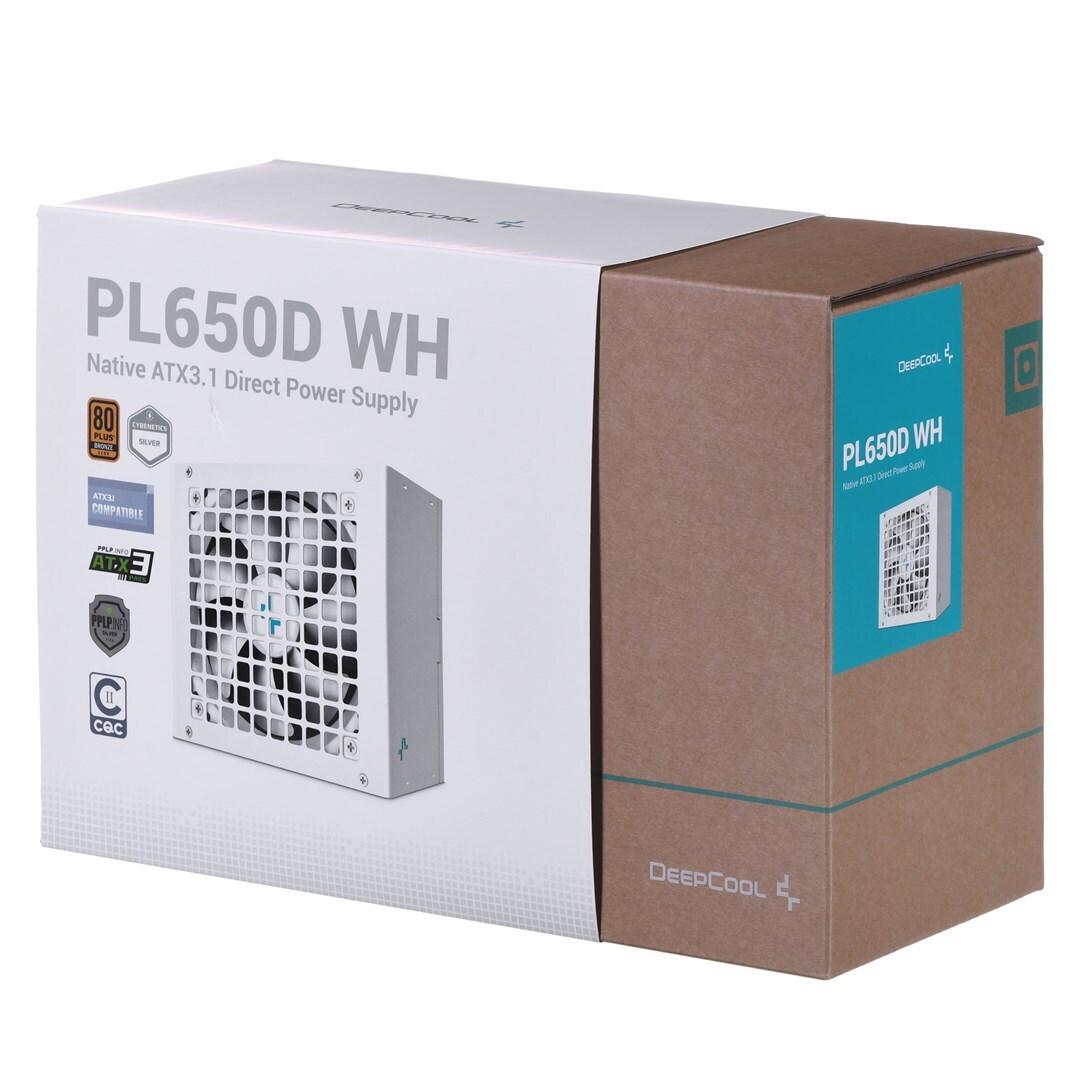

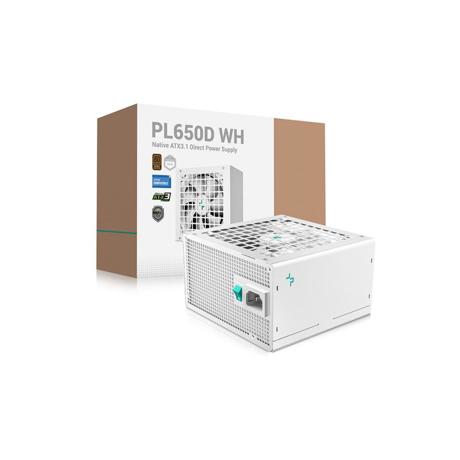

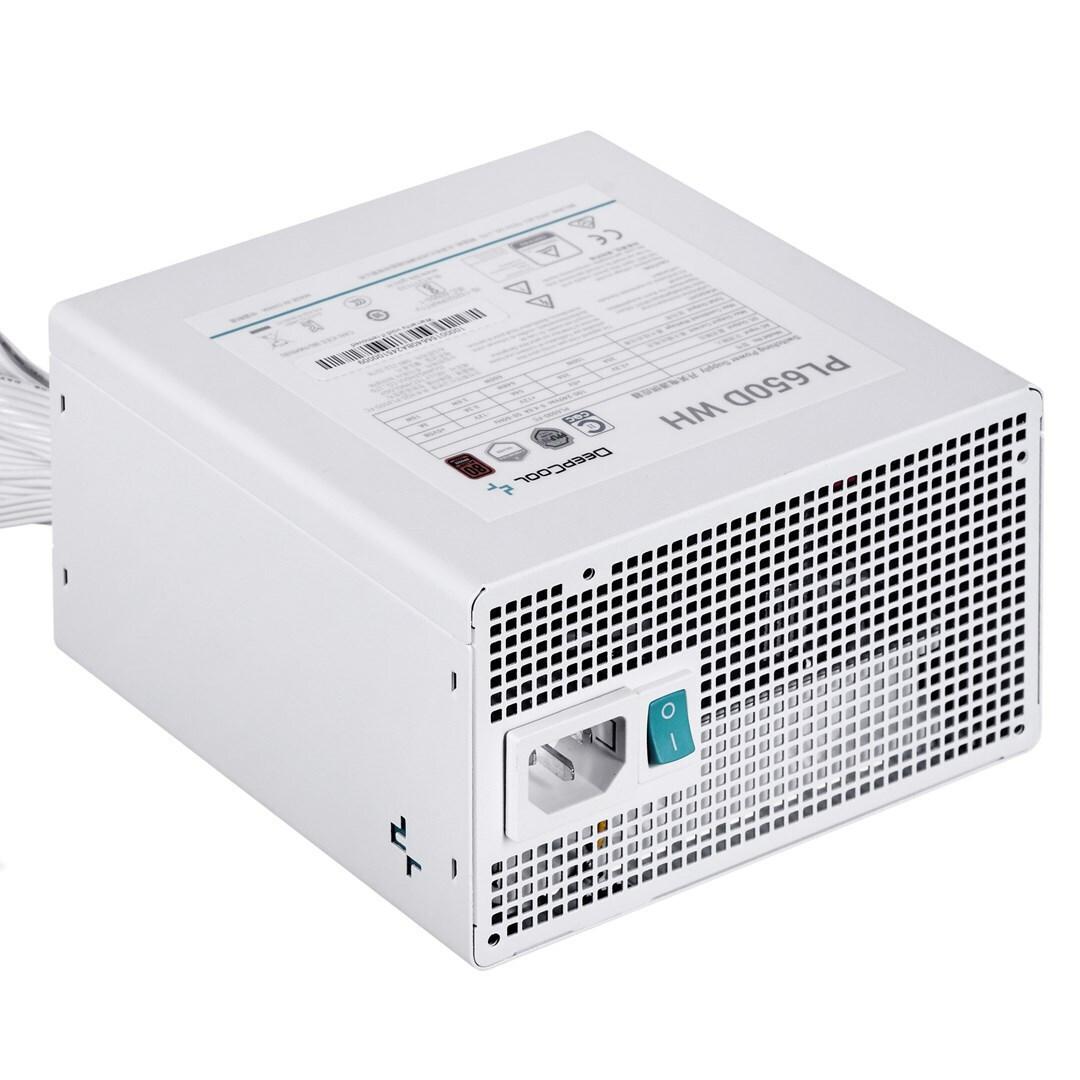

Sursa DEEPCOOL PL650D V2 650W 80 PLUS Bronze

Sursa DEEPCOOL PL650D V2 650W 80 PLUS Bronze, Active PFC+DC to DC, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO, alb

Compliance certificates

RoHS, WEEE

Certification

CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

On/off switch

Yes

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

Country of origin

China

Operating temperature (T-T)

0 - 40 °C

Package type

Box

Power supply unit (PSU) form factor

ATX

Bearing technology

HYB

Mean time between failures (MTBF)

100000 h

Purpose

PC

80 PLUS certification

80 PLUS Bronze

ATX version

3.0

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

55 cm

Number of SATA power connectors

6

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

Cabling type

Non-Modular

PCI Express power connectors (6+2 pin)

3

PCI Express power connectors (16-pin)

1

Peripheral (Molex) power connectors (4-pin)

2

SATA power cable length

550,450,650 mm

Max output current (+12V)

0.3 A

Efficiency

85%

Combined power (+12V)

3.6 W

Input current

9 / 4.5 A

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Power Factor Correction (PFC) type

Active

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Total power

650 W

Combined power (+3.3V)

100 W

Combined power (+5V)

100 W

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

AC input frequency

50/60 Hz

Sustainability compliance

Yes

Sustainability certificates

ErP, Triman

Width

150 mm

Height

86 mm

Depth

140 mm

Modular

No
