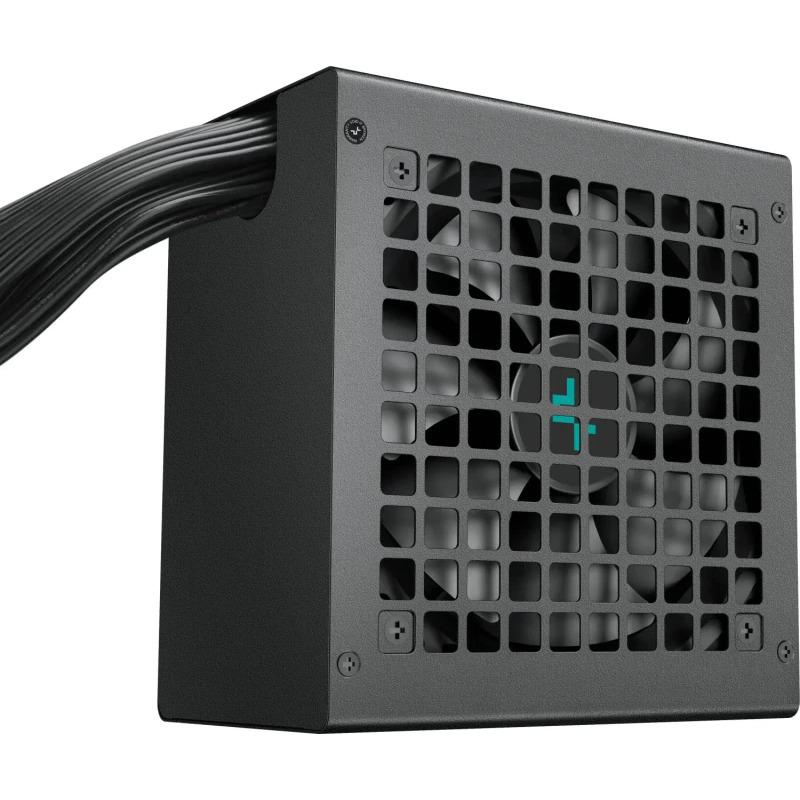

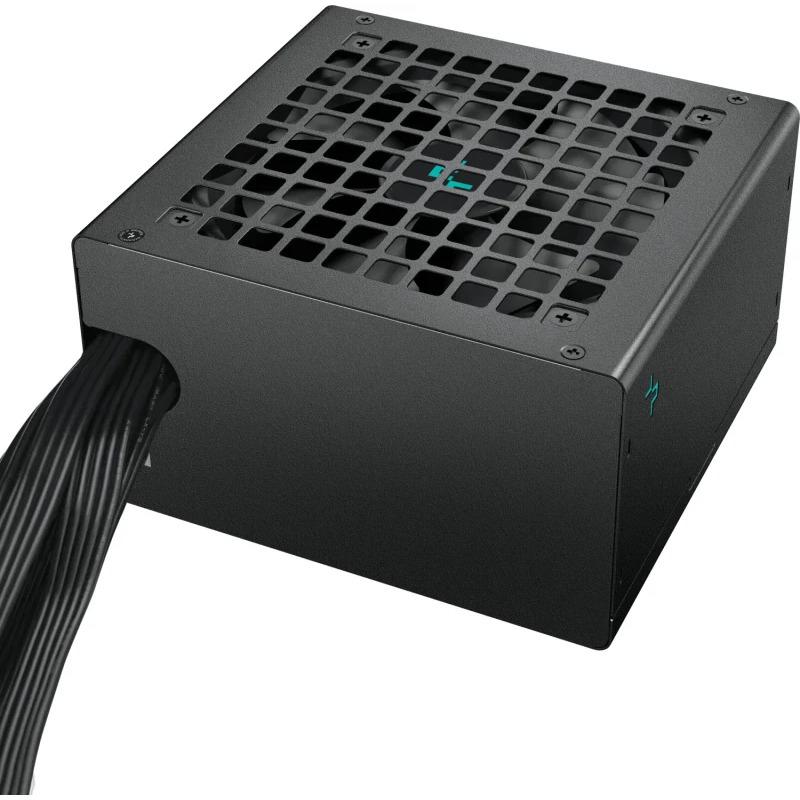

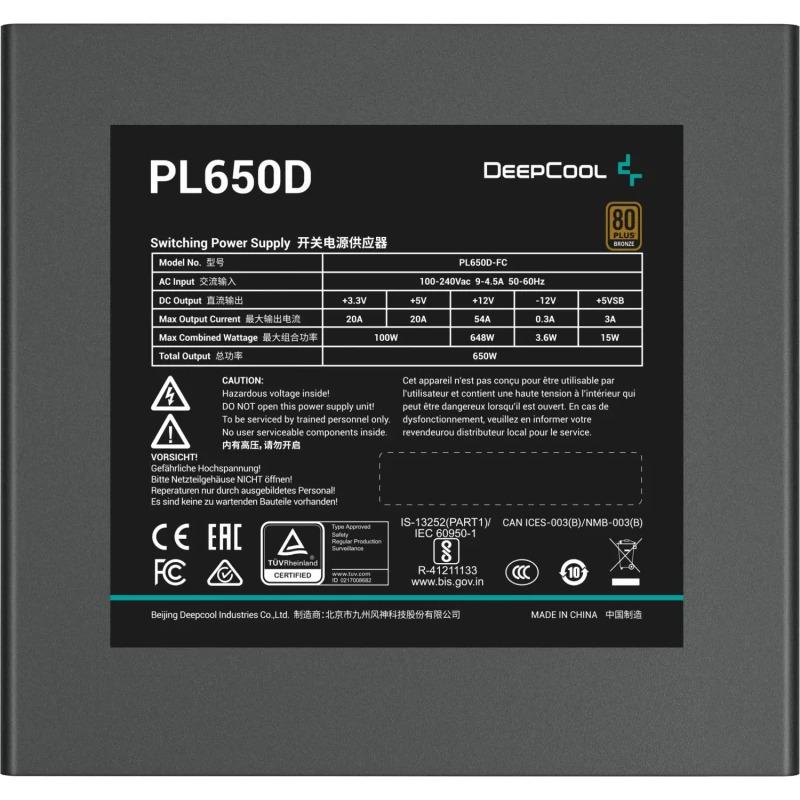

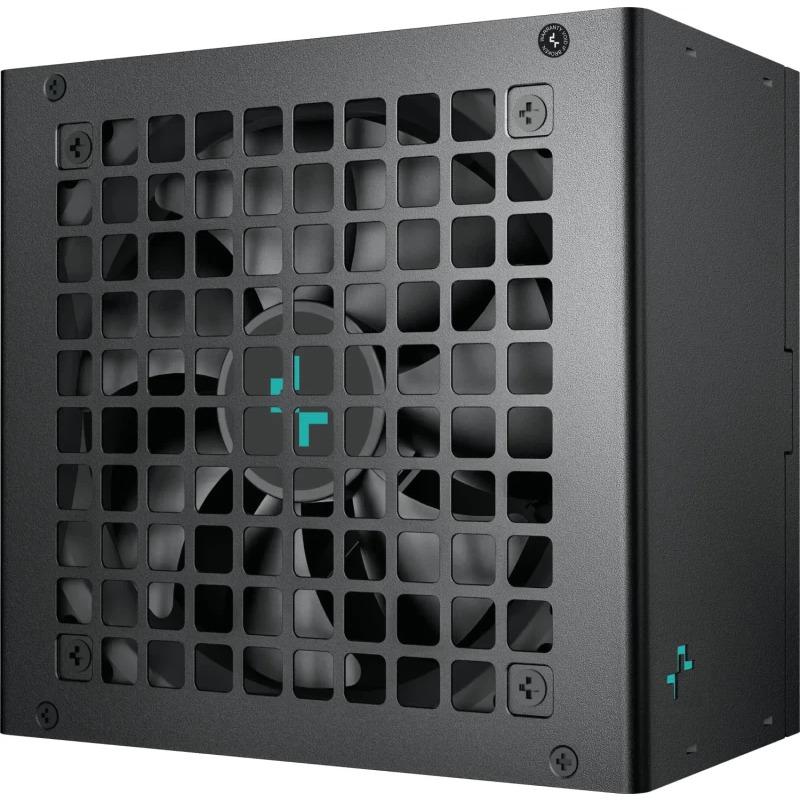

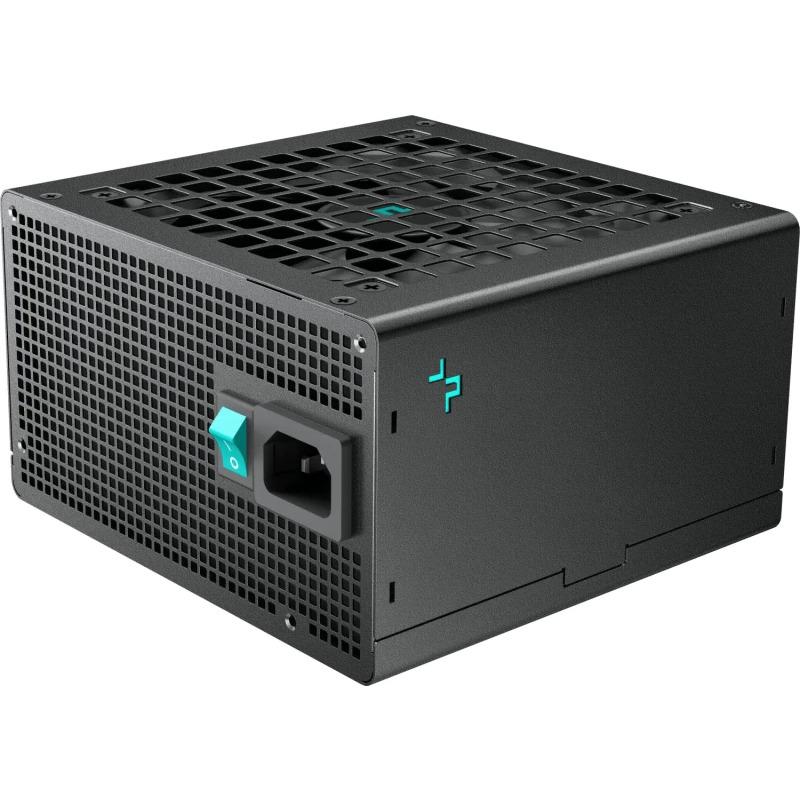

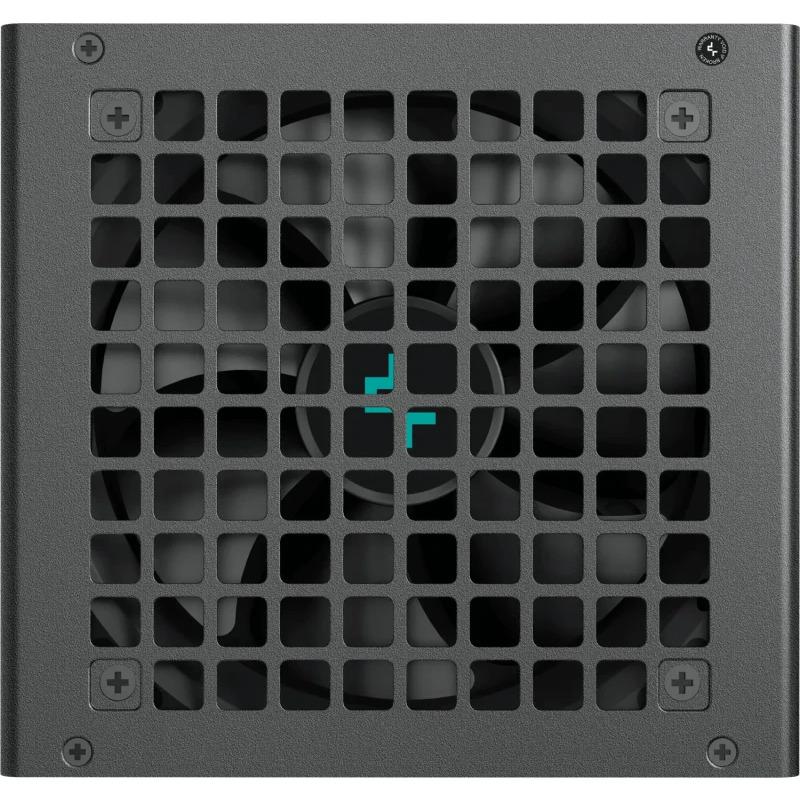

Sursa DEEPCOOL PL650D V2 650W 80 PLUS Bronze

Sursa DEEPCOOL PL650D V2 650W 80 PLUS Bronze, Active PFC+DC to DC, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Compliance certificates

RoHS, WEEE

Certification

CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

On/off switch

Yes

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

Country of origin

China

Operating temperature (T-T)

0 - 40 °C

Package type

Box

Mean time between failures (MTBF)

100000 h

Purpose

PC

80 PLUS certification

80 PLUS Bronze

ATX version

3.0

Bearing technology

HYB

Power supply unit (PSU) form factor

ATX

SATA power cable length

550,450,650 mm

PCI Express power connectors (6+2 pin)

3

PCI Express power connectors (16-pin)

1

Peripheral (Molex) power connectors (4-pin)

2

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

55 cm

Number of SATA power connectors

6

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

Cabling type

Non-Modular

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Total power

650 W

Combined power (+3.3V)

100 W

Combined power (+5V)

100 W

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Power Factor Correction (PFC) type

Active

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Efficiency

80Plus-Bronze

Combined power (+12V)

3.6 W

Input current

9 / 4.5 A

Max output current (+12V)

0.3 A

AC input frequency

50/60 Hz

Sustainability compliance

Yes

Sustainability certificates

ErP, Triman

Width

150 mm

Height

86 mm

Depth

140 mm

Modular

Yes
