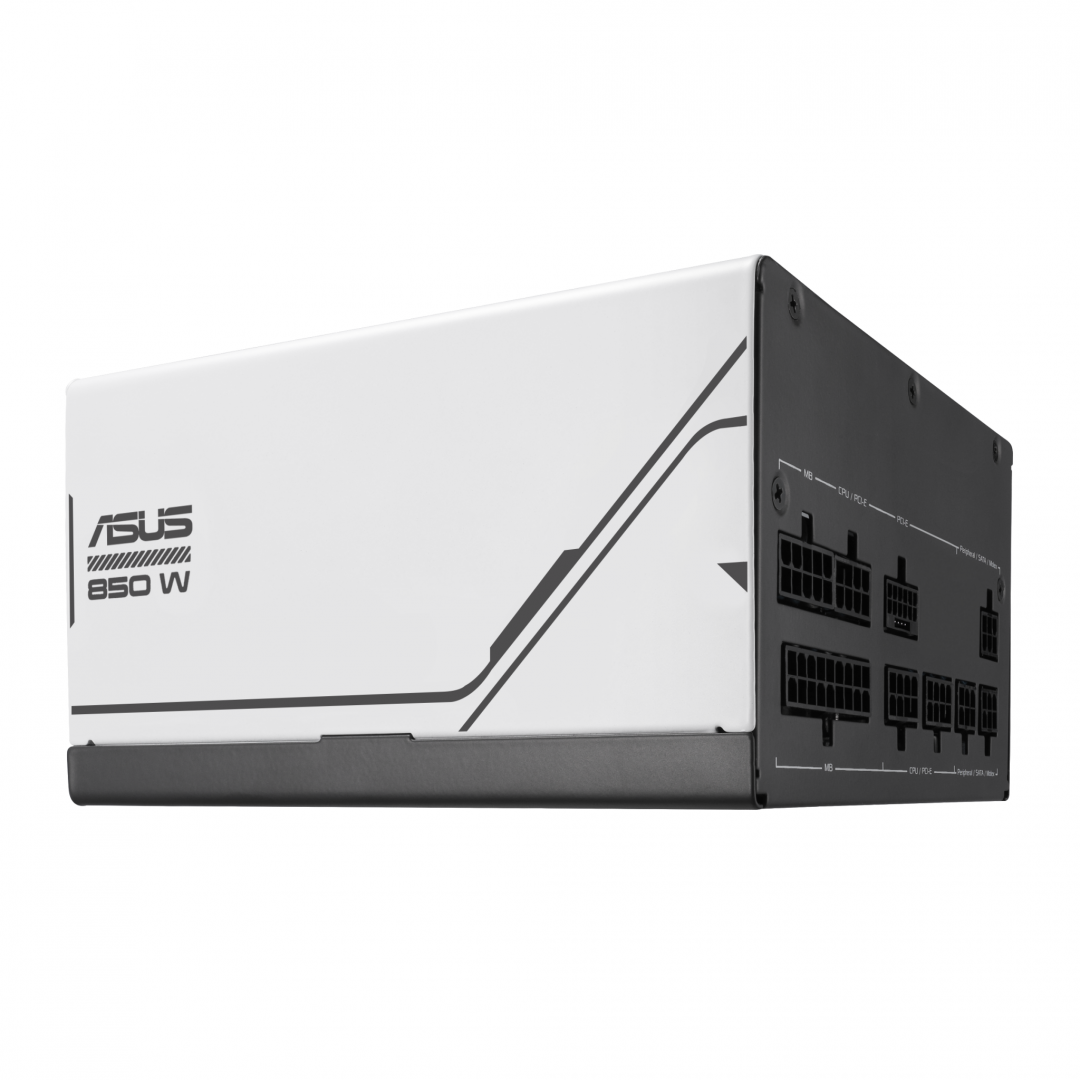

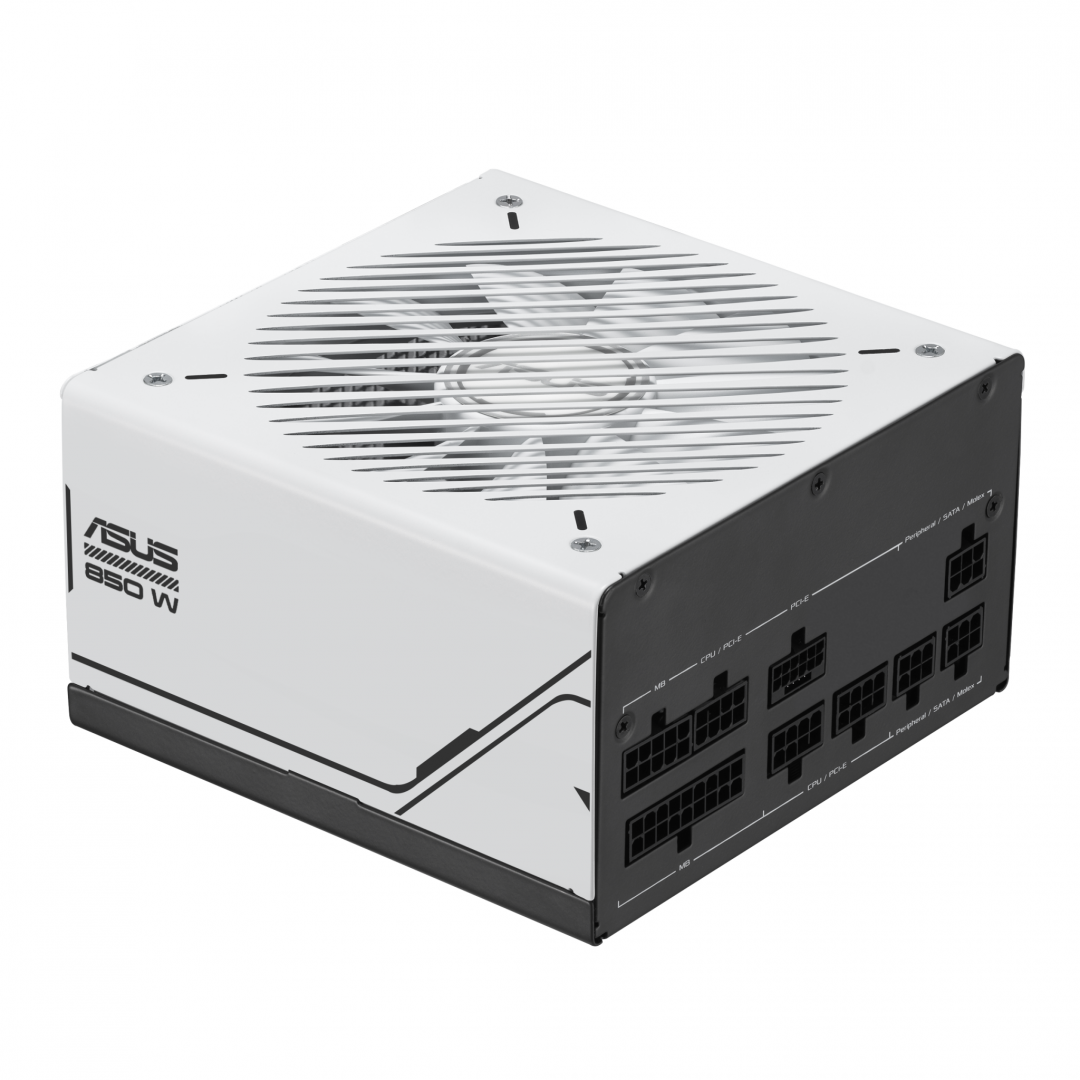

Sursa ASUS Prime 850W Gold PSU, ATX 3.0: Yes, Dimensions 150 x 150 x 86 mm BULK

Sursa ASUS Prime 850W Gold PSU, ATX 3.0: Yes, Dimensions 150 x 150 x 86 mm BULK

Number of fans

1 fan(s)

Fan location

Top

Product colour

Black, White

On/off switch

Yes

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Package weight

2.72 kg

Bearing technology

DBB

Power supply unit (PSU) form factor

ATX

ATX version

3.0

80 PLUS certification

80 PLUS Gold

Purpose

PC

Peripheral (Molex) power connectors (4-pin)

3

Motherboard power connector

20+4 pin ATX

CPU power connector (4+4 pin)

Yes

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

PCI Express power connectors (16-pin)

1

Number of SATA power connectors

5

SATA power cable length

120,400 mm

Peripheral (Molex) power cable length

150,400 mm

PCI Express power connectors (8-pin)

3

CPU power cable length

65 cm

PCI Express power cable length

67.5 cm

AC input voltage

100 - 240 V

Combined power (+5V)

110 W

Max output current (+5V)

20 A

Max output current (+12V)

70.5 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Total power

850 W

Combined power (+12V)

846 W

Max output current (+3.3V)

20 A

Combined power (+3.3V)

110 W

Max output current (+5Vsb)

2.5 A

Combined power (+5Vsb)

12.5 W

Max output current (-12V)

0.3 A

Combined power (-12V)

3.6 W

Weight

1.5 kg

Width

150 mm

Depth

150 mm

Height

86 mm
