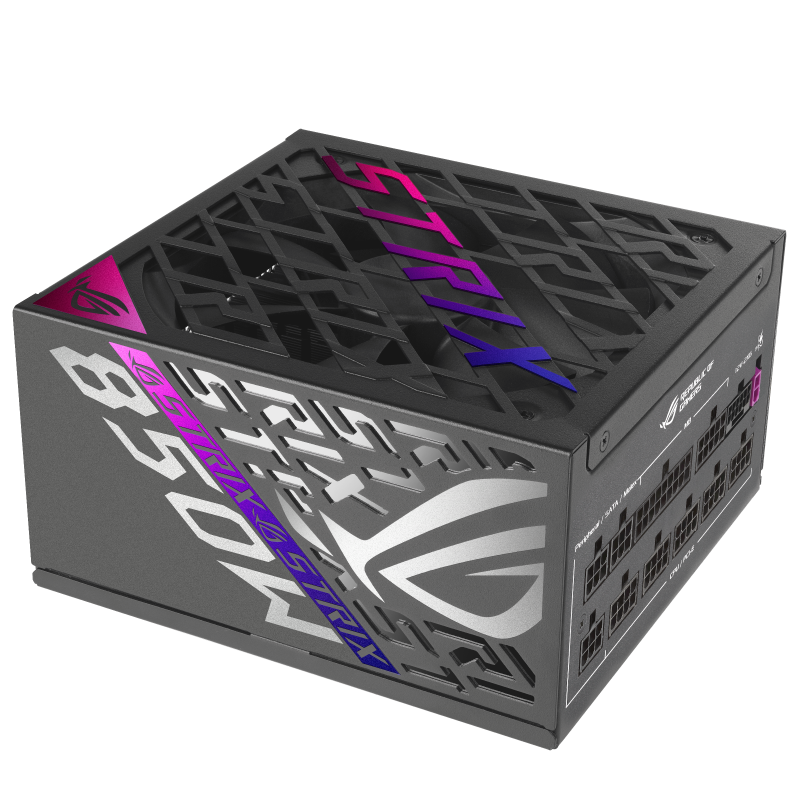

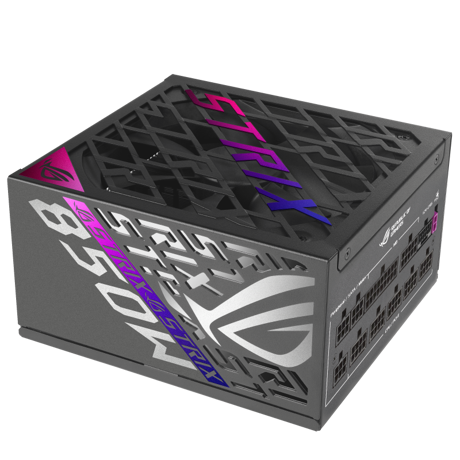

Sursa ASUS ROG STRIX 850W 80 PLUS PLATINUM, ATX12V, Active PFC, Protectii OPP/OVP/UVP/SCP/OCP/OTP, ROHS

Sursa ASUS ROG STRIX 850W 80 PLUS PLATINUM, ATX12V, Active PFC, Protectii OPP/OVP/UVP/SCP/OCP/OTP, ROHS

Number of fans

1 fan(s)

Fan location

Top

Cooling type

Semi-passive

Cables included

CPU, PCIe, SATA, Peripheral (Molex)

Package type

Box

Package width

320 mm

Package depth

200 mm

Package weight

28 kg

Package height

108 mm

Mean time between failures (MTBF)

120000 h

Silent mode

Yes

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Purpose

PC

80 PLUS certification

80 PLUS Platinum

Peripheral (Molex) power connectors (4-pin)

3

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

CPU power connector (4+4 pin)

Yes

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

CPU power cable length

100 cm

SATA power cable length

400,120 mm

Peripheral (Molex) power cable length

400,150 mm

PCI Express power connectors (6+2 pin)

3

PCI Express power connectors (16-pin)

1

PCI Express power cable length

75 cm

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Total power

850 W

Max output current (+12V)

0.3 A

Combined power (+12V)

3.6 W

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

130 W

Combined power (+5V)

130 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Efficiency

80Plus-Platinum

Width

160 mm

Depth

150 mm

Height

86 mm

Weight

1.78 kg

Modular

Yes

PSU-Power

≥751W
