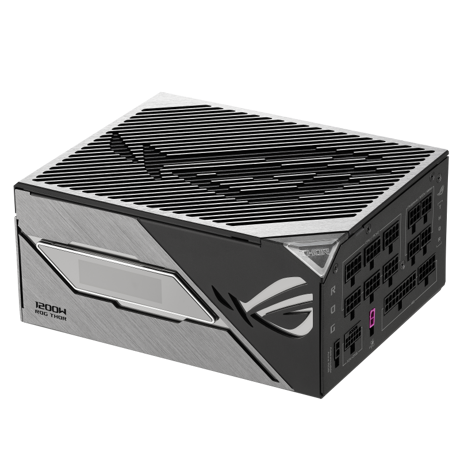

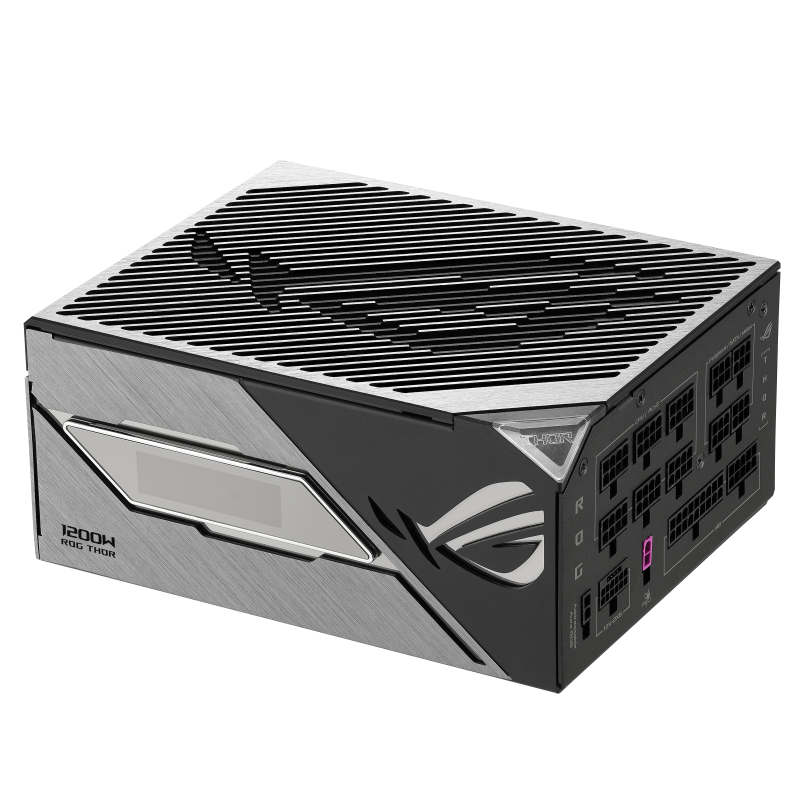

Sursa ASUS ROG THOR 1200W PLATINUM III, ATX12V, Active PFC, ATX 3.1, 80 PLUS PLATINUM, ROHS, AURA SYNC ARGB

Sursa ASUS ROG THOR 1200W PLATINUM III, ATX12V, Active PFC, ATX 3.1, 80 PLUS PLATINUM, ROHS, AURA SYNC ARGB

Cooling type

Active

Number of fans

1 fan(s)

Illumination

Yes

Fan location

Top

Cables included

CPU, PCIe, SATA, Peripheral (Molex)

Package type

Box

Package width

379 mm

Package depth

241 mm

Package height

127 mm

Package weight

5.14 kg

Mean time between failures (MTBF)

120000 h

Bearing technology

DBB

ATX version

3.1

Purpose

PC

80 PLUS certification

80 PLUS Platinum

Power supply unit (PSU) form factor

ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

Motherboard power connector

20+4 pin ATX

PCI Express power connectors (16-pin)

1

PCI Express power cable length

75 cm

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

SATA power cable length

400,120 mm

Peripheral (Molex) power cable length

400,150 mm

CPU power cable length

100 cm

Peripheral (Molex) power connectors (4-pin)

6

Number of SATA power connectors

7

Max output current (+3.3V)

30 A

Combined power (-12V)

1200 W

Max output current (-12V)

100 A

Combined power (+12V)

3.6 W

Power protection features

Overheating, Over current, Over power, Over voltage, Short circuit, Under power

Combined power (+3.3V)

125 W

Combined power (+5V)

125 W

Power Factor Correction (PFC) type

Active

Max output current (+12V)

0.3 A

Total power

1200 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Efficiency

80Plus-Platinum

Width

190 mm

Depth

150 mm

Height

86 mm

Weight

2.37 kg

PSU-Power

≥751W

Modular

Yes
