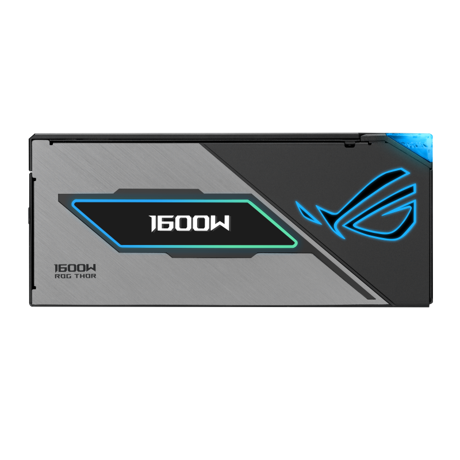

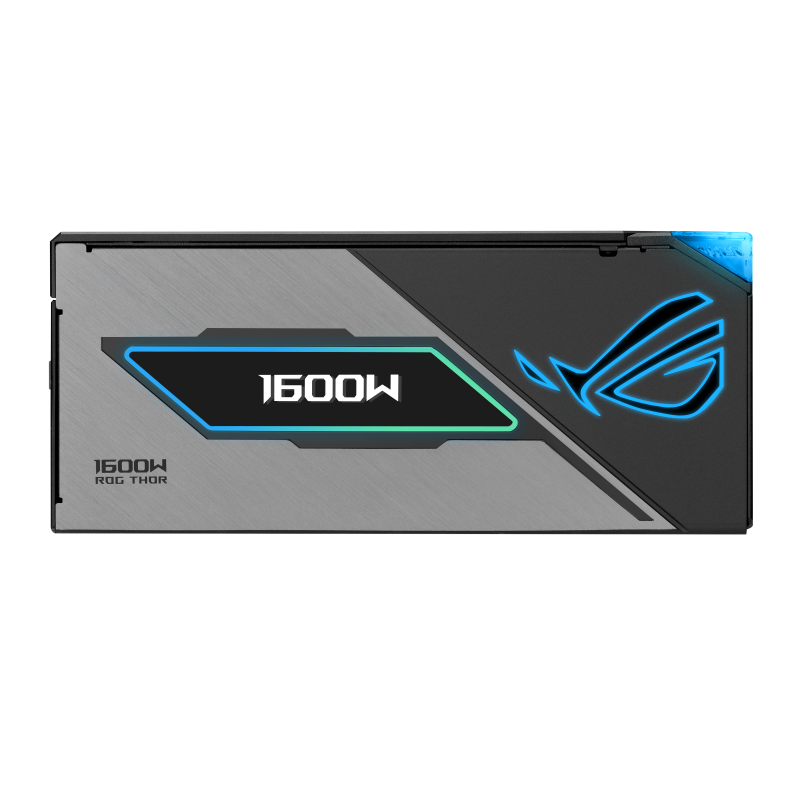

Sursa ASUS ROG THOR TITANIUM III 1600W 80 PLUS TITANIUM, Active PFC, ATX 3.1, protectii OPP/OVP/UVP/SCP/OCP/OTP, aura SYNC ARGB

Sursa ASUS ROG THOR TITANIUM III 1600W 80 PLUS TITANIUM, Active PFC, ATX 3.1, protectii OPP/OVP/UVP/SCP/OCP/OTP, aura SYNC ARGB

Cooling type

Active

Number of fans

1 fan(s)

Illumination

Yes

Product colour

Grey

Built-in display

Yes

On/off switch

Yes

Display type

OLED

Cable tie(s) included

Yes

Cable ties included

Yes

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Package type

Box

Package width

390 mm

Package depth

251 mm

Package weight

6.3 kg

Package height

159 mm

Silent mode

Yes

Power supply unit (PSU) form factor

ATX

Purpose

PC

ATX version

3.1

Mean time between failures (MTBF)

120000 h

80 PLUS certification

80 PLUS Titanium

Bearing technology

DBB

PCI Express power connectors (16-pin)

2

PCI Express power cable length

75 cm

SATA power cable length

120,400 mm

Peripheral (Molex) power cable length

150,400 mm

Motherboard power connector

20+4 pin ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

Number of SATA power connectors

10

Peripheral (Molex) power connectors (4-pin)

9

CPU power cable length

100 cm

AC input voltage

100-240 V

Power Factor Correction (PFC) type

Active

Combined power (+5Vsb)

15 W

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Combined power (+3.3V)

125 W

Combined power (+5V)

125 W

Max output current (+12V)

0.3 A

Total power

1600 W

Max output current (+3.3V)

30 A

Combined power (+12V)

3.6 W

Efficiency

80Plus-Titanium

Width

200 mm

Weight

2.8 kg

Depth

150 mm

Height

86 mm

Modular

Yes

PSU-Power

≥751W
