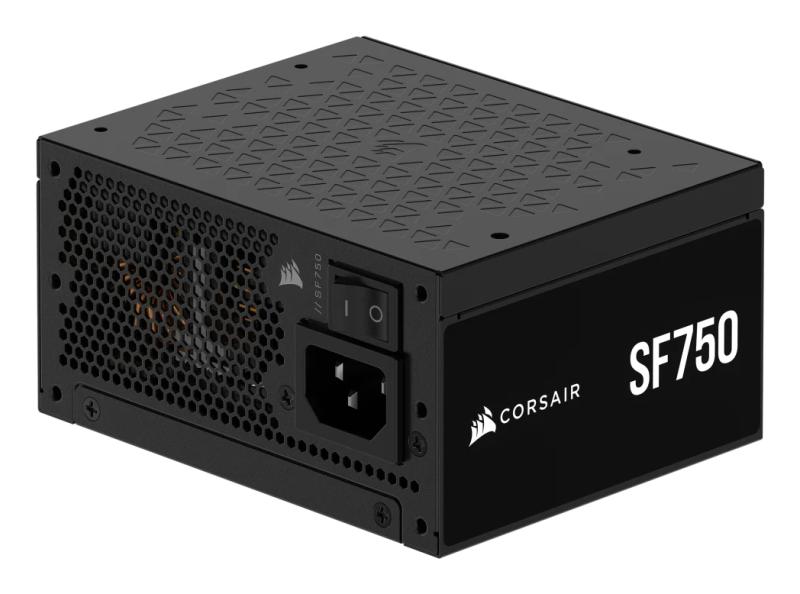

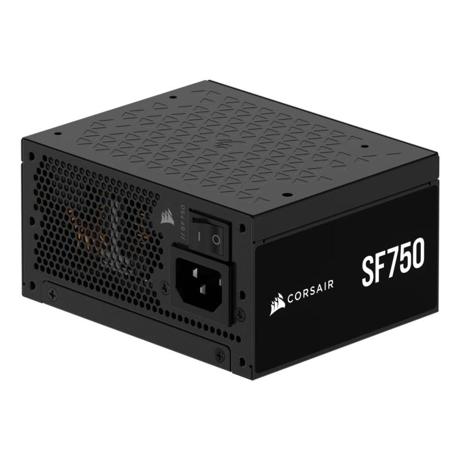

Sursa CORSAIR 750W 80+ Platinum, Active PFC, Modulara, OVP, UVP, SCP, OTP, OPP

Sursa CORSAIR 750W 80+ Platinum, Active PFC, Modulara, OVP, UVP, SCP, OTP, OPP

Fan location

Top

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

9.2 cm

On/off switch

Yes

Cables included

AC, CPU, PATA, PCIe, SATA

Package type

Box

Silent mode

Yes

ATX version

3.1

Power supply unit (PSU) form factor

SFX

Bearing technology

FDB

Purpose

PC

80 PLUS certification

80 PLUS Platinum

Mean time between failures (MTBF)

100000 h

Motherboard power connector

24-pin ATX

Cabling type

Fully-Modular

PCI Express power connectors (6+2 pin)

2

Number of PATA power connectors

1

Number of SATA power connectors

3

PCI Express power cable length

40 cm

Motherboard power cable length

30 cm

EPS power connector (4+4 pin)

Yes

SATA power cable length

445 mm

AC input frequency

47 - 63 Hz

Combined power (-12V)

750 W

Max output current (-12V)

62.5 A

Input current

10 - 5 A

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Efficiency

80Plus-Platinum

Total power

750 W

Combined power (+3.3V)

130 W

Combined power (+12V)

750 W

Combined power (+5V)

130 W

Combined power (+5Vsb)

15 W

Max output current (+12V)

62.5 A

Max output current (+5Vsb)

3 A

Weight

2.15 kg

Modular

Yes
