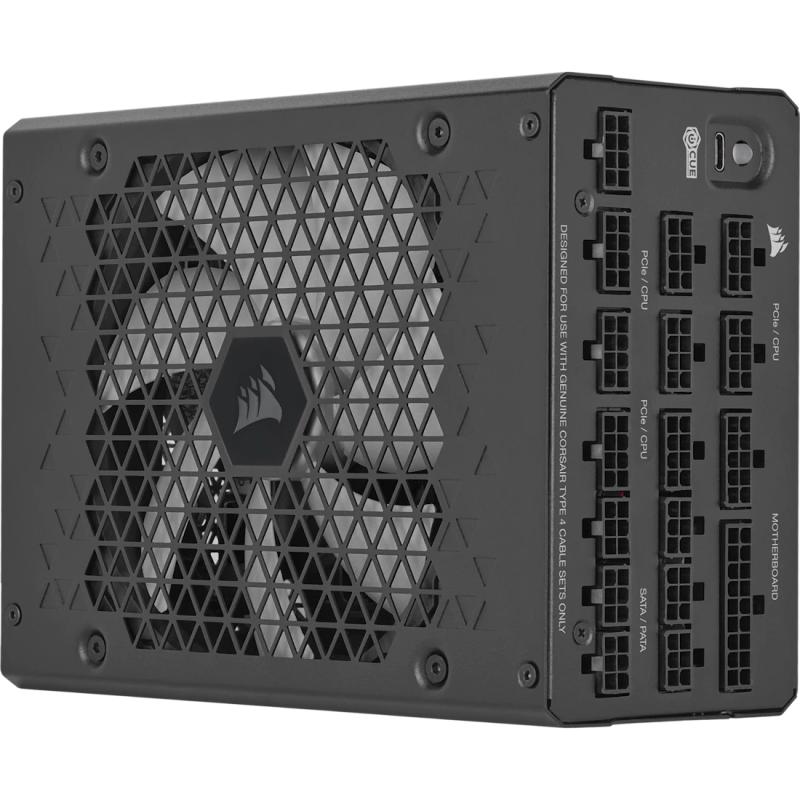

Sursa CORSAIR HX1200i 1200W 80 PLUS Platinum eficienta 92% ATX 3.1, full modulara

Sursa CORSAIR HX1200i 1200W 80 PLUS Platinum eficienta 92% ATX 3.1, full modulara

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

14 cm

Bearing technology

FDB

ATX version

3.1

Purpose

PC

80 PLUS certification

80 PLUS Platinum

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

Number of PATA power connectors

6

Motherboard power connector

24-pin ATX

Number of SATA power connectors

8

Number of EPS connectors

2

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

PCI Express power connectors (6+2 pin)

5

AC input frequency

47 - 63 Hz

Combined power (-12V)

1200 W

Max output current (-12V)

100 A

Input current

15 - 7.5 A

Combined power (+3.3V)

150 W

Combined power (+5V)

150 W

Total power

1200 W

Combined power (+12V)

1200 W

Max output current (+12V)

100 A

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Efficiency

80Plus-Platinum

PSU Type

ATX

Iluminare RGB

Nu

PSU Power

1200 W

Conectivitate

Full - Modular

Certificare 80 Plus

80 PLUS Platinum

Weight

5.02 kg

Modular

Yes
