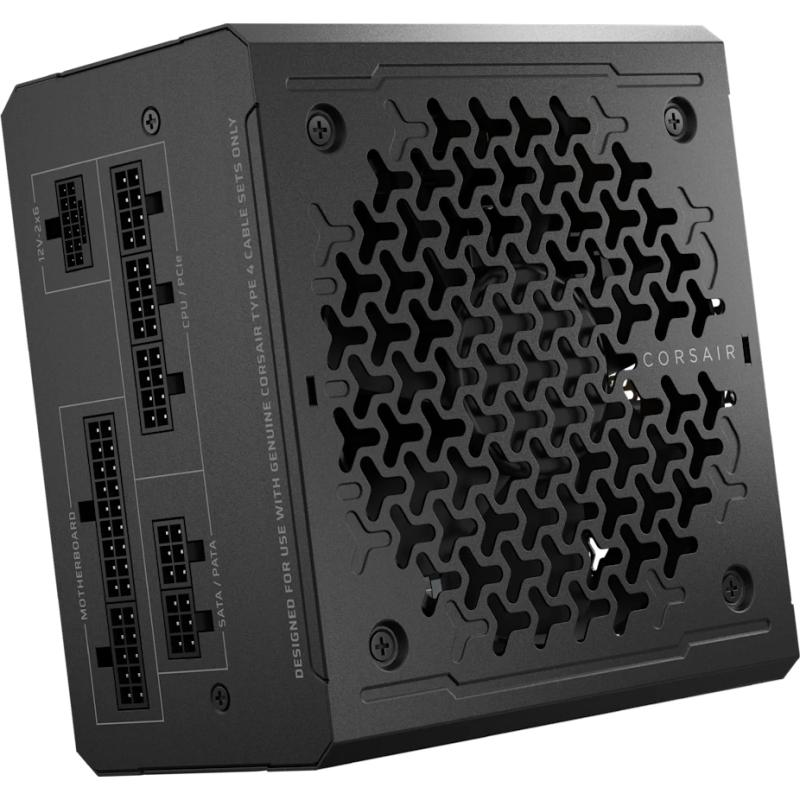

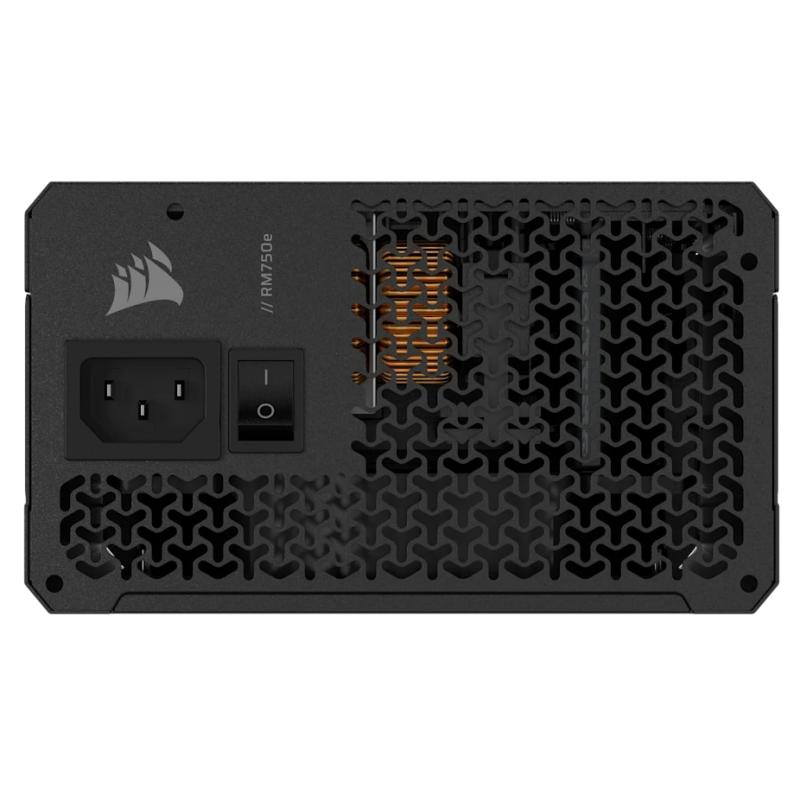

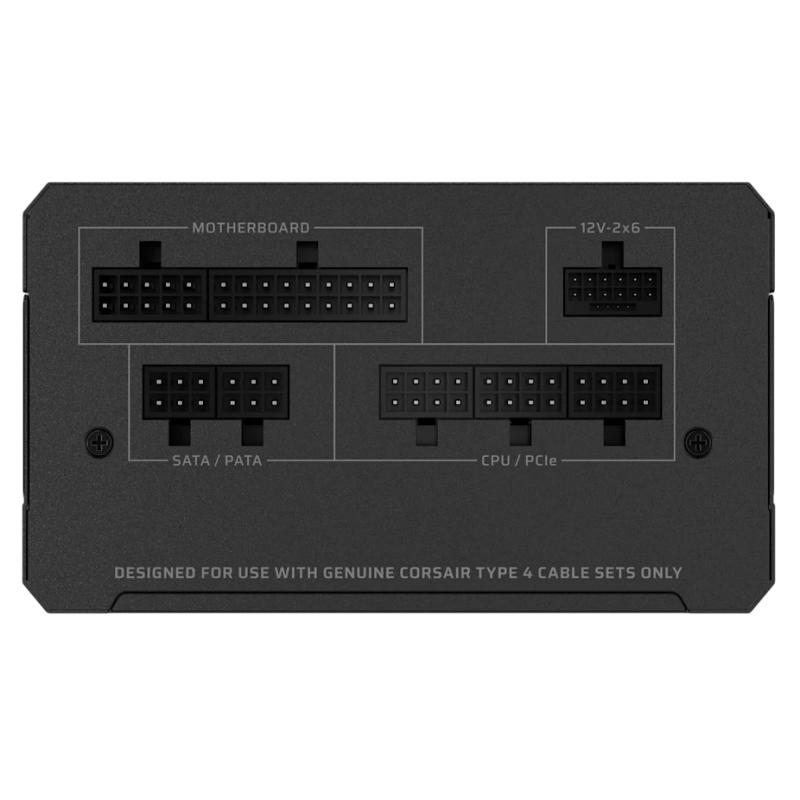

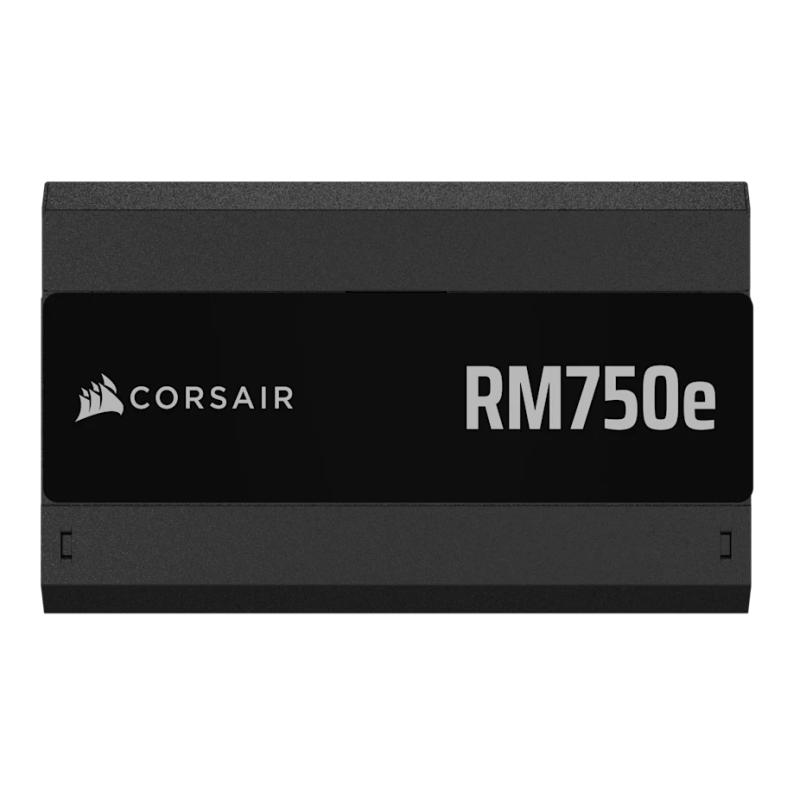

Sursa CORSAIR RM750e 750W 80PLUS GOLD ATX 3.1, full modulara

Sursa CORSAIR RM750e 750W 80PLUS GOLD ATX 3.1, full modulara

Compliance certificates

CE, RoHS, UKCA

Number of fans

1 fan(s)

On/off switch

Yes

Fan diameter

12 cm

Fan location

Front

Bearing technology

Rifle

ATX version

3.1

80 PLUS certification

80 PLUS Gold

Mean time between failures (MTBF)

100000 h

Purpose

PC

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

CPU power connector (4+4 pin)

Yes

PCI Express connector

Yes

ATX Power connector (24-pin)

Yes

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

24-pin ATX

Cabling type

Fully-Modular

ATX power connector (12+4 pin)

Yes

Number of PATA power connectors

2

Max output current (+12V)

54.2 A

Efficiency

Not certified

Combined power (+3.3V)

110 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Input current

10 - 5 A

Combined power (+5V)

110 W

AC input voltage

100 - 240 V

Total power

750 W

AC input frequency

47 - 63 Hz

Combined power (+12V)

750 W

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Height

150 mm

Depth

86 mm

Width

140 mm

Weight

2.9 kg

Modular

Yes
