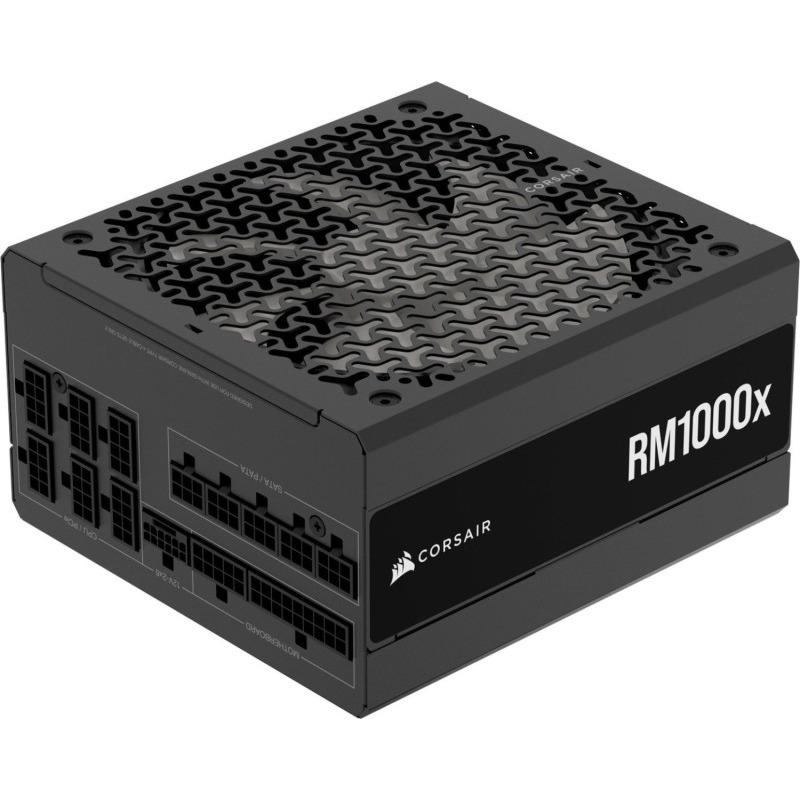

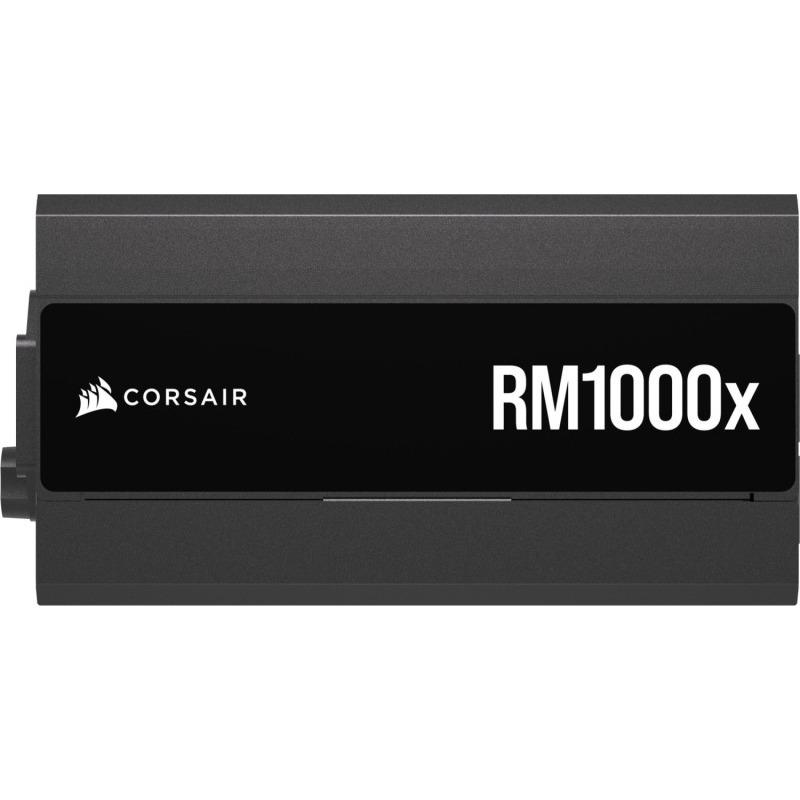

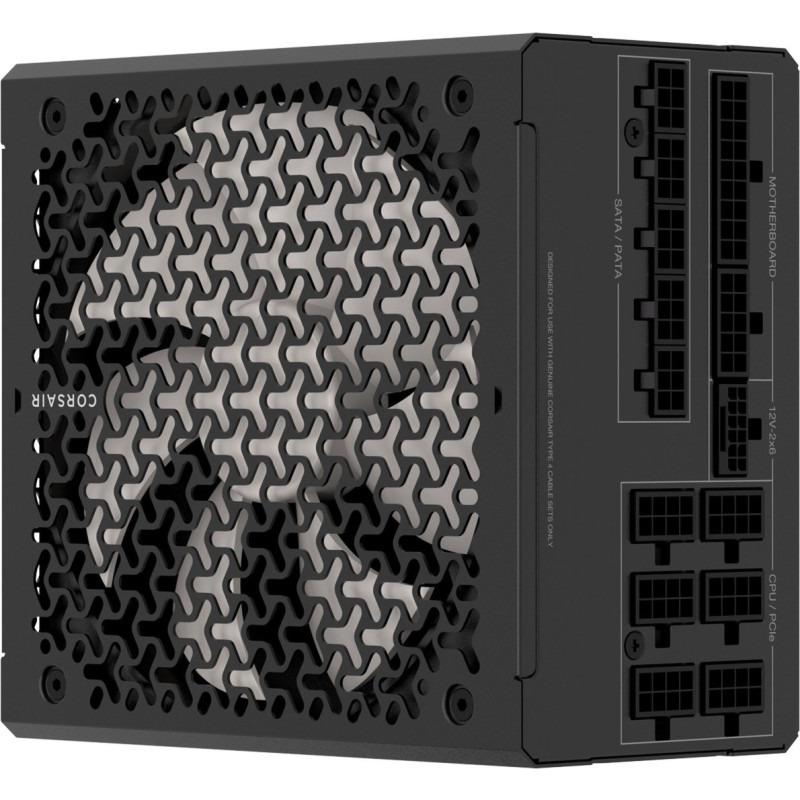

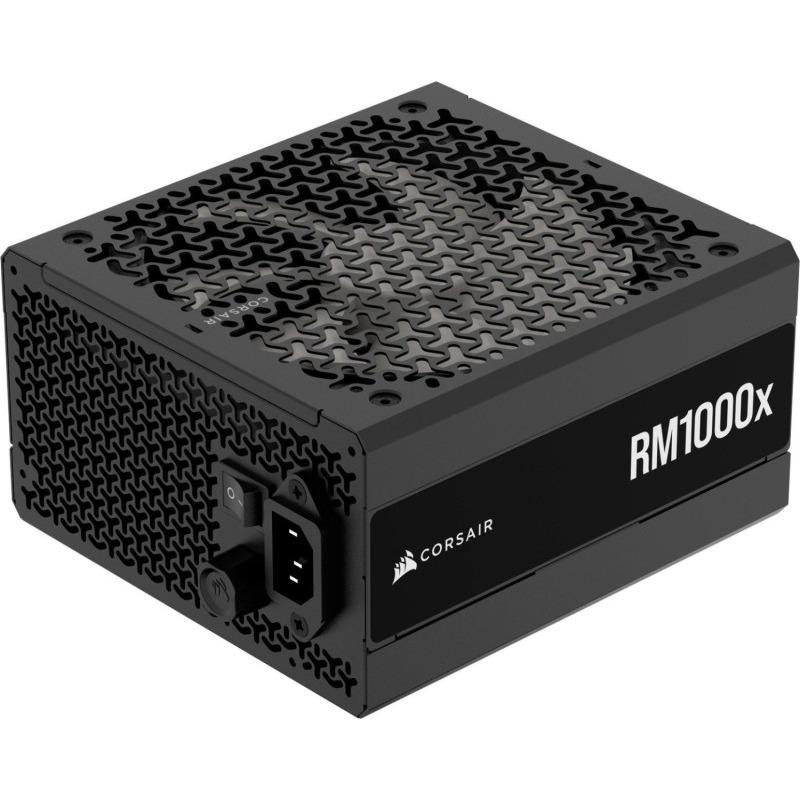

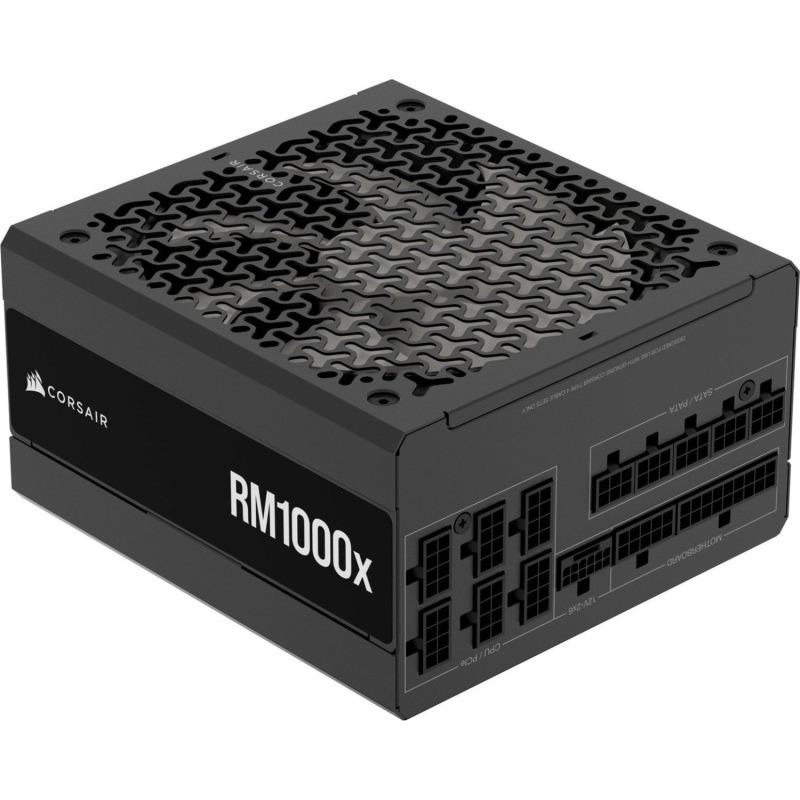

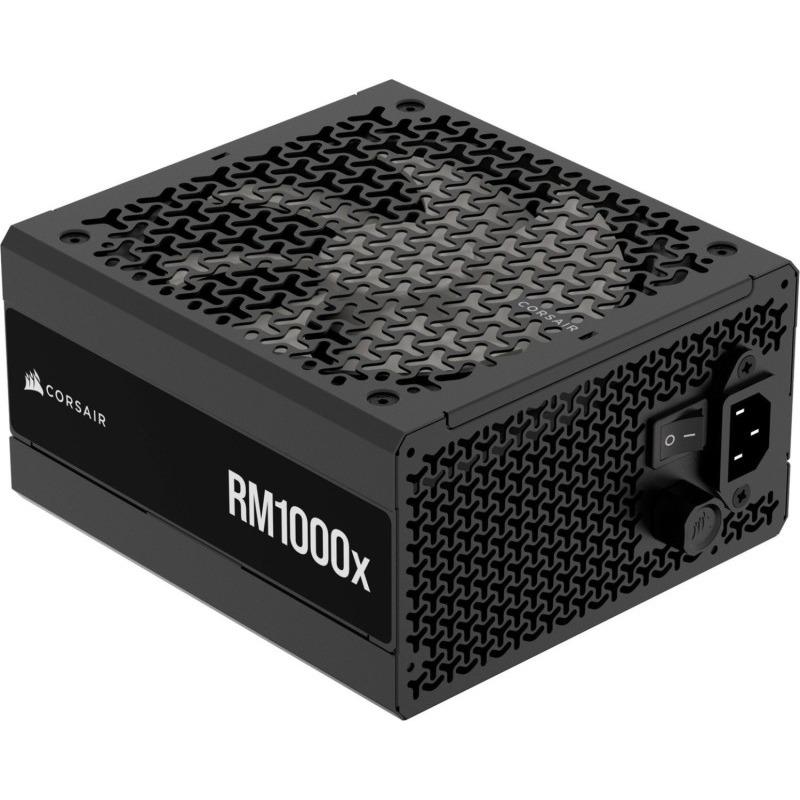

Sursa CORSAIR RMx Series, RM1000x 80 PLUS GOLD

Sursa CORSAIR RMx Series, RM1000x, 1000 Watt, ATX 3.1, Cybenetics GOLD Certified, Fully Modular Power Supply

Number of fans

1 fan(s)

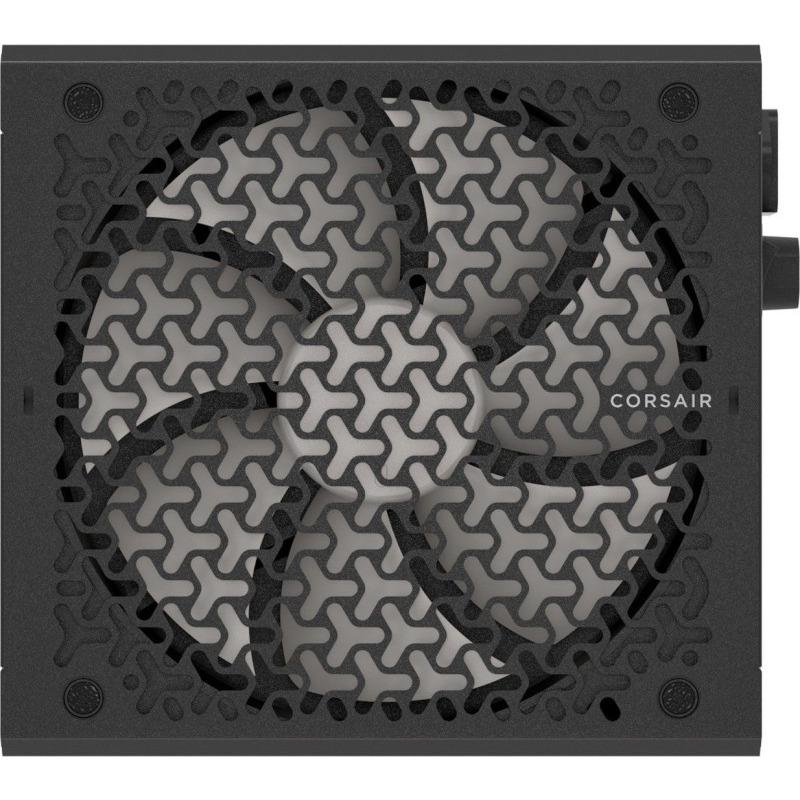

Fan diameter

14 cm

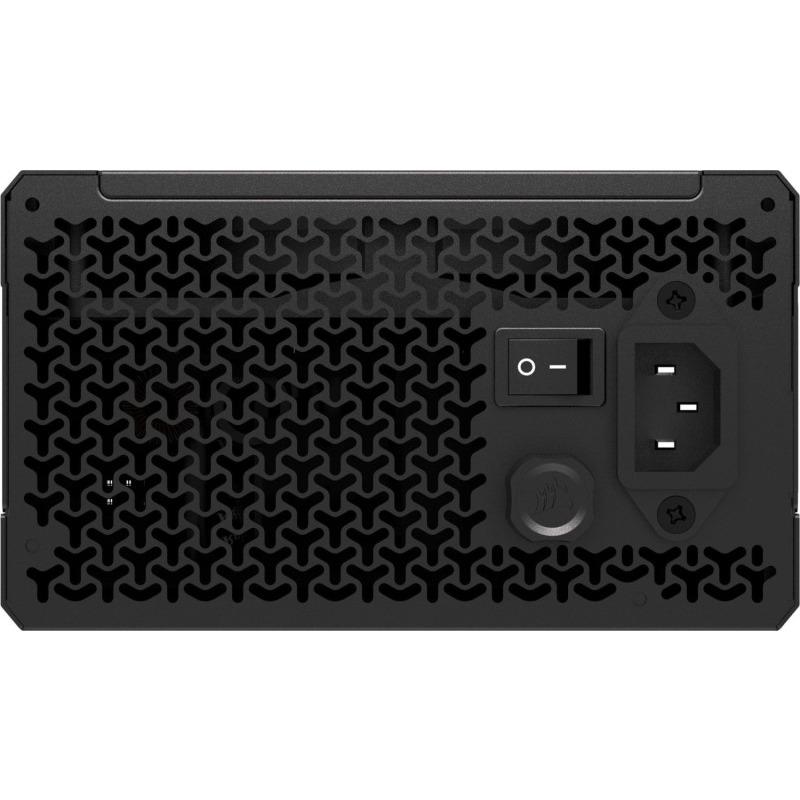

On/off switch

Yes

Warranty period

10 year(s)

80 PLUS certification

80 PLUS Gold

Bearing technology

Rifle

EPS version

2.92

ATX version

2.4

Purpose

PC

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

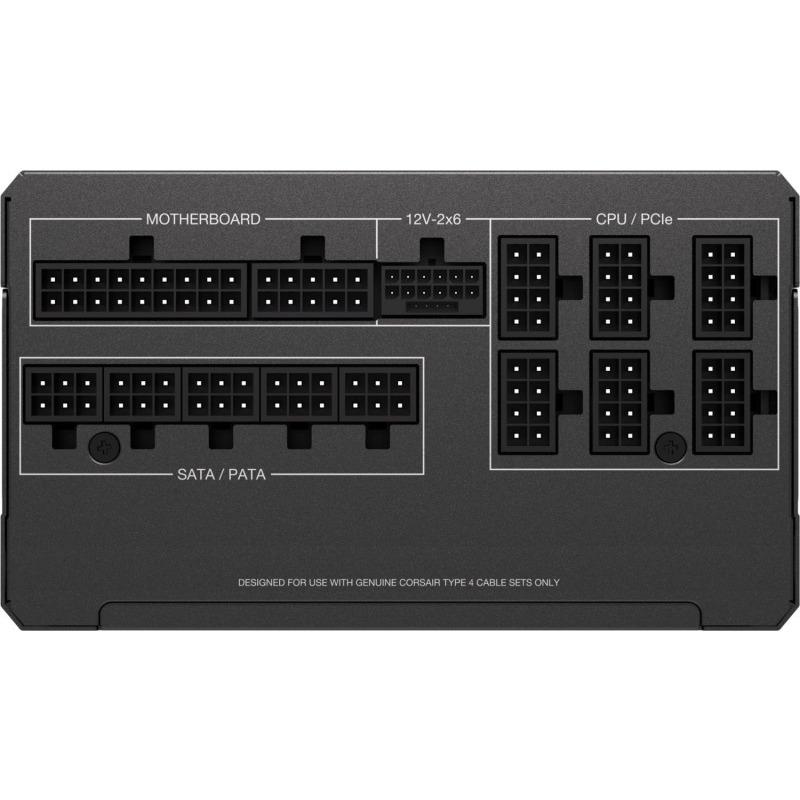

PCI Express connector

Yes

EPS power connector (8-pin)

Yes

Floppy drive power connector

1

Cabling type

Fully-Modular

Peripheral (Molex) power connectors (4-pin)

12

Motherboard power connector

24-pin ATX

Number of SATA power connectors

11

Efficiency

80Plus-Gold

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Max output current (+12V)

83.3 A

Total power

1000 W

Maximum input current (@220V)

5 A

Input current

12 - 5 A

Maximum input current (@110V)

12 A

Combined power (+12V)

1000 W

Combined power (+3.3V)

150 W

Combined power (+5V)

150 W

Max output current (+5Vsb)

3 A

Max output current (+5V)

25 A

Max output current (-12V)

0.8 A

Combined power (-12V)

9.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Depth

160 mm

Height

86 mm

Width

150 mm

Weight

3.65 kg

Modular

Yes
