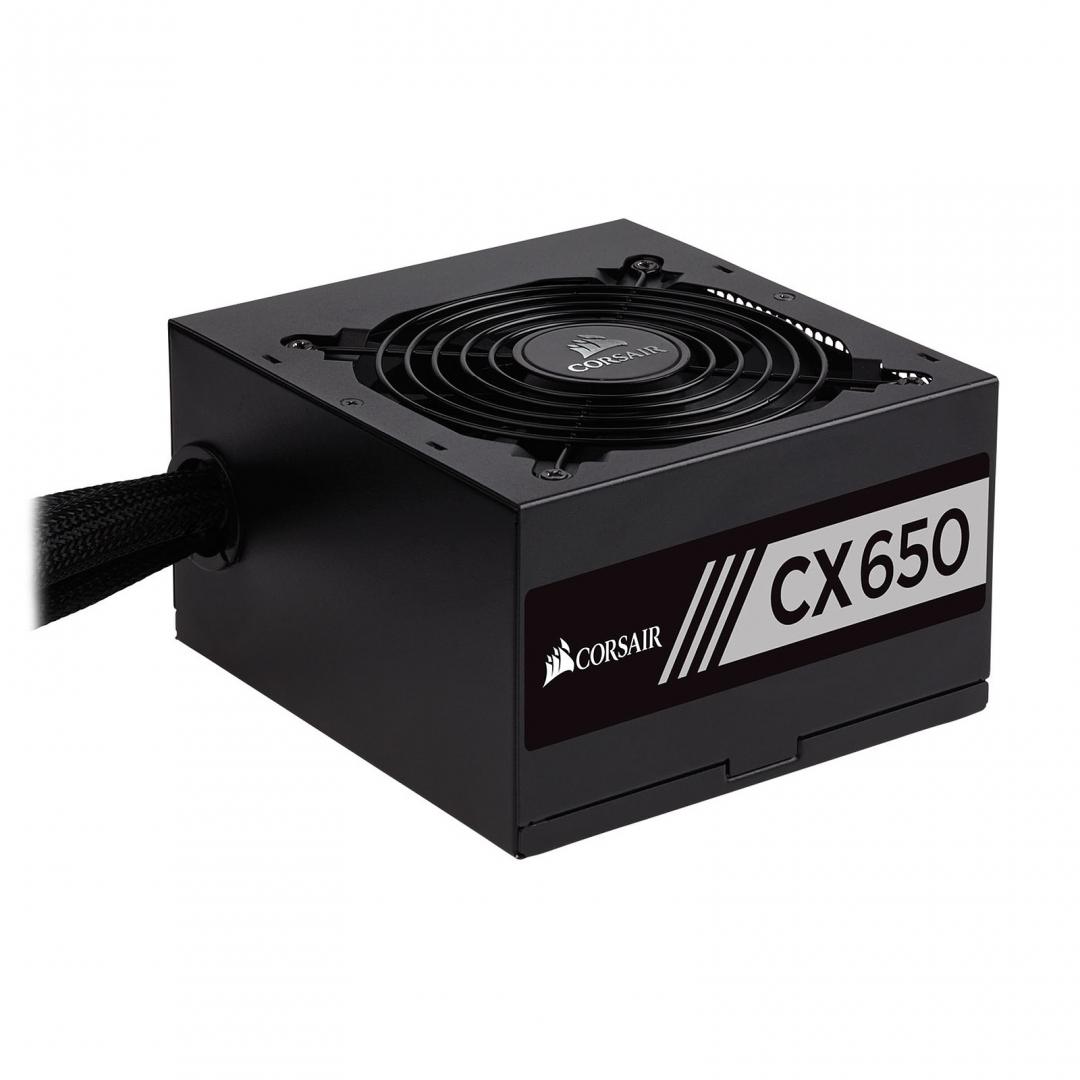

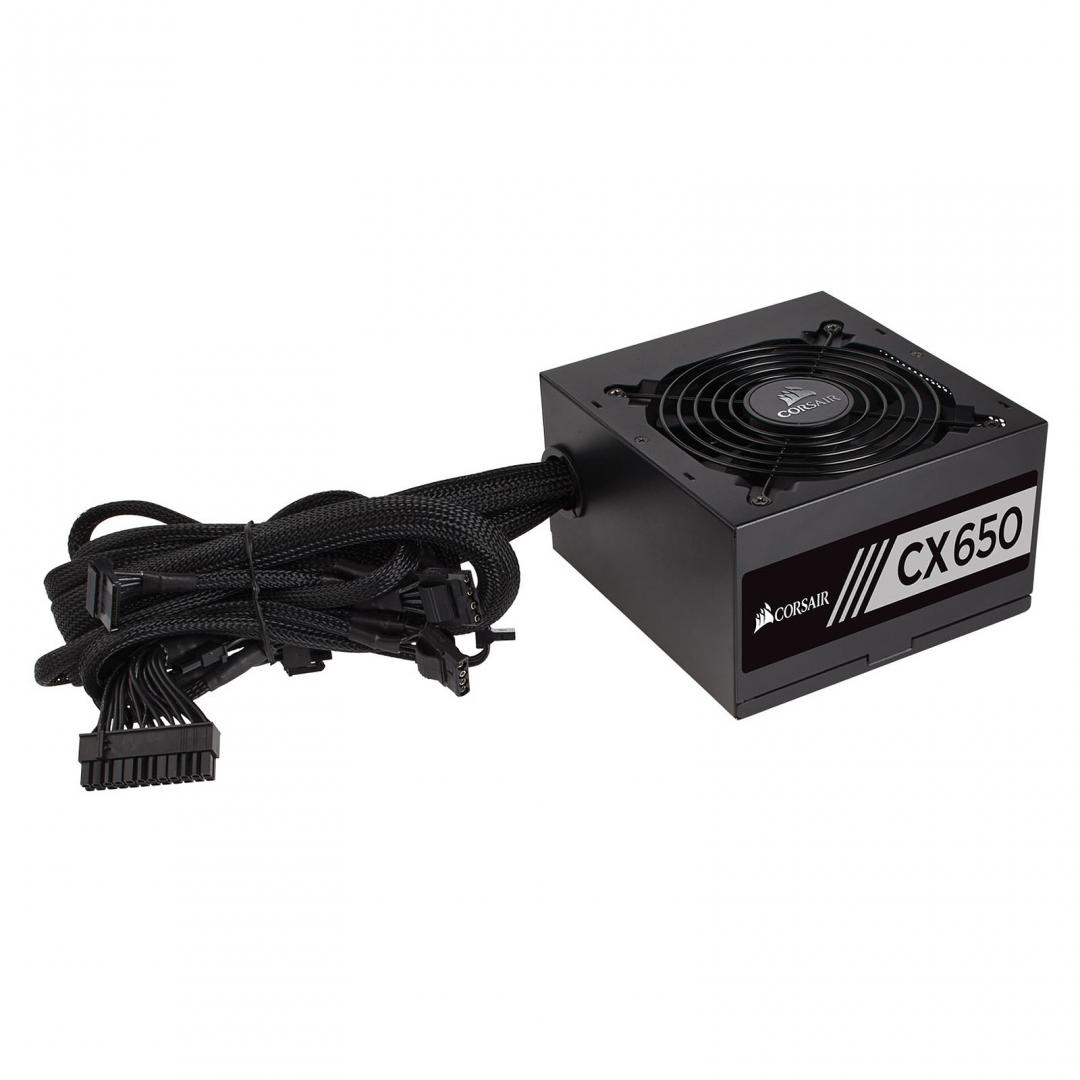

Sursa Corsair CX650 Putere 650 W 80 PLUS BRONZE

Sursa Corsair CX650 | Putere 650 W | 80+ Bronze | Ventilatie 1 x 120mm | Dimensiune 125 x 150 x 86 mm

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

Purpose

PC

80 PLUS certification

80 PLUS Bronze

Power supply unit (PSU) form factor

ATX

Cabling type

Non-Modular

Peripheral (Molex) power connectors (4-pin)

0

PCI Express power connectors (6+2 pin)

1

EPS power connector (8-pin)

Yes

Motherboard power connector

24-pin ATX

Motherboard power cable length

60 cm

Number of SATA power connectors

8

Max output current (+5V)

20 A

Combined power (+3.3V)

130 W

Combined power (+5V)

130 W

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Total power

650 W

Combined power (-12V)

3.6 W

Max output current (-12V)

0.3 A

Max output current (+3.3V)

24 A

Combined power (+12V)

624 W

Max output current (+12V)

52 A

Efficiency

80Plus-Bronze

Input current

10 - 5 A

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Width

150 mm

Depth

125 mm

Modular

Yes
