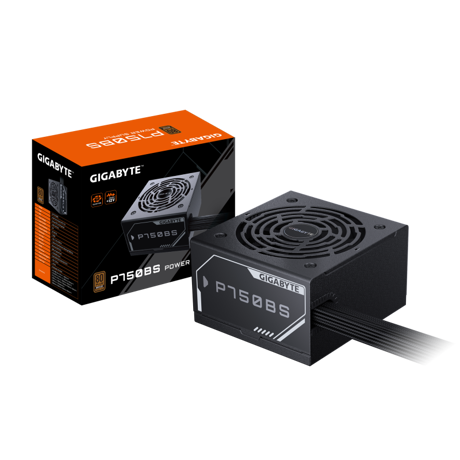

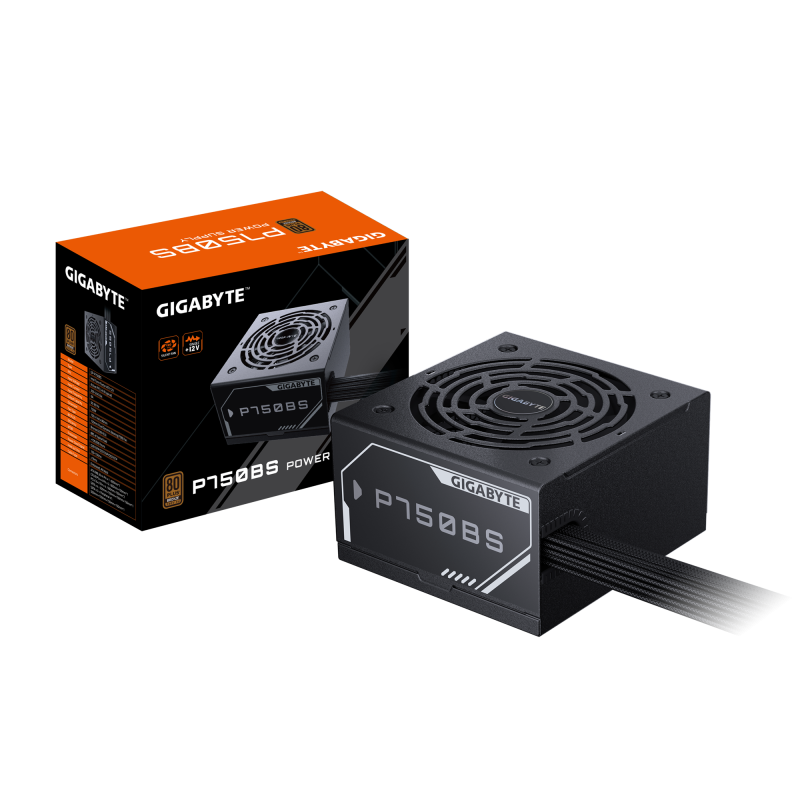

GIGABYTE P750BS. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80

GIGABYTE P750BS. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Fan location

Top

On/off switch

Yes

Warranty period

3 year(s)

Package type

Box

Package height

117 mm

Package width

254 mm

Package depth

206 mm

Package weight

2.68 kg

Power supply unit (PSU) form factor

ATX

Mean time between failures (MTBF)

100000 h

Purpose

PC

80 PLUS certification

80 PLUS Bronze

Bearing technology

FDB

Cabling type

Non-Modular

Peripheral (Molex) power connectors (4-pin)

2

Motherboard power cable length

60 cm

Floppy drive power connector

2

SATA power cable length

150,500 mm

Number of SATA power connectors

7

Peripheral (Molex) power cable length

150,600 mm

Floppy disk drive connector

Yes

Motherboard power connector

20+4 pin ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

PCI Express connector

Yes

Max output current (-12V)

0.3 A

Total power

750 W

Combined power (+5Vsb)

15 W

Combined power (+3.3V)

100 W

Combined power (+5V)

100 W

Input current

6 A

Combined power (-12V)

3.6 W

Max output current (+12V)

0.3 A

Combined power (+12V)

3.6 W

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Efficiency

88%

Power Good signal delay range

100 - 150 ms

Max output current (+5Vsb)

3 A

Power Factor Correction (PFC) type

Active

Max output current (+3.3V)

20 A

Power factor

0.9

Hold time

16 ms

Max output current (+5V)

20 A

AC input voltage

200 - 240 V

AC input frequency

50/60 Hz

Weight

2.22 kg

Depth

140 mm

Height

86 mm

Width

150 mm
