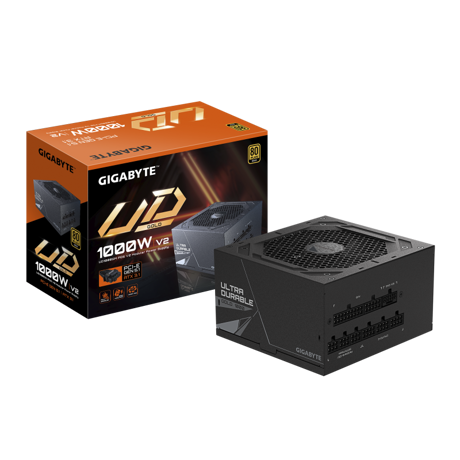

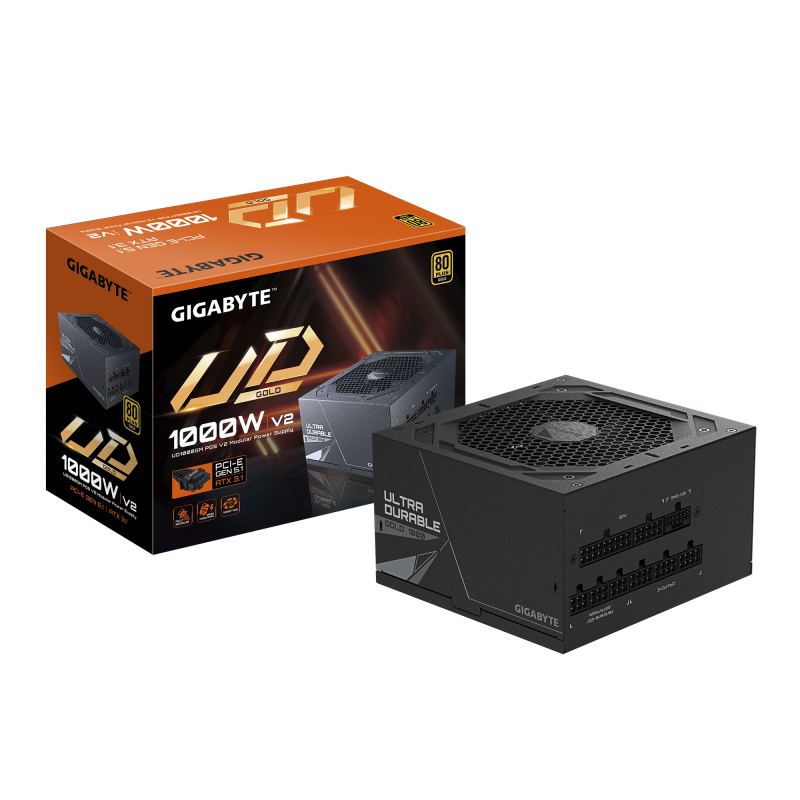

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Product colour

Black

On/off switch

Yes

Warranty period

10 year(s)

Package height

211 mm

Package type

Box

Package width

618 mm

Package weight

2.64 kg

Package depth

269 mm

Bearing technology

HYB

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Purpose

PC

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

Motherboard power connector

20+4 pin ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

CPU power cable length

60 cm

PCI Express connector

Yes

Peripheral (Molex) power connectors (4-pin)

3

Floppy drive power connector

1

PCI Express power connectors (16-pin)

1

PCI Express power cable length

70 cm

SATA power cable length

150,600 mm

Number of EPS connectors

2

Peripheral (Molex) power cable length

120,150,500 mm

Max output current (+12V)

0.3 A

Input current

15 - 6.5 A

Combined power (-12V)

1000 W

Combined power (+12V)

3.6 W

Power factor

0.9

Hold time

16 ms

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+5V)

125 W

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Efficiency

90%

Total power

1000 W

Max output current (+5Vsb)

3 A

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+5V)

25 A

Max output current (-12V)

83.3 A

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Depth

140 mm

Height

86 mm

Weight

2.48 kg

Width

150 mm
