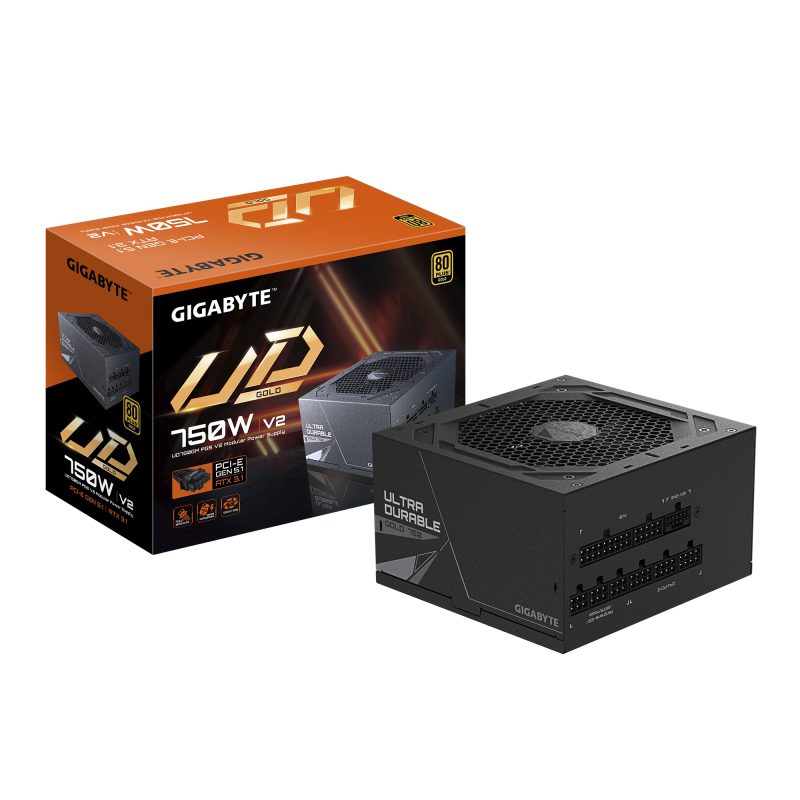

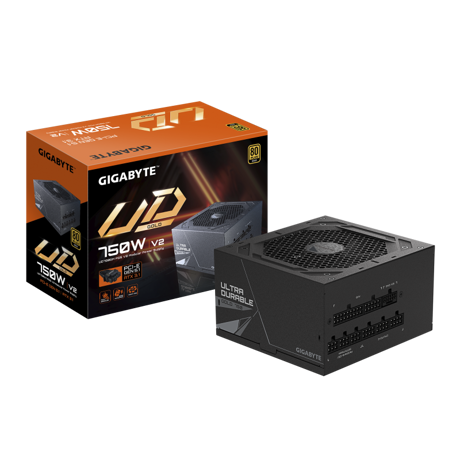

GIGABYTE UD750GM PG5 V2. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS

GIGABYTE UD750GM PG5 V2. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Product colour

Black

On/off switch

Yes

Warranty period

5 year(s)

Package type

Box

Package height

211 mm

Package weight

2.5 kg

Package width

618 mm

Package depth

269 mm

Bearing technology

HYB

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Purpose

PC

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

PCI Express connector

Yes

Number of SATA power connectors

8

Motherboard power cable length

61 cm

Cabling type

Fully-Modular

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

3

CPU power cable length

65 cm

Floppy drive power connector

1

PCI Express power cable length

60 cm

Peripheral (Molex) power cable length

150,500 mm

SATA power cable length

150,600 mm

Number of EPS connectors

2

PCI Express power connectors (12+4 pin)

1

PCI Express power connectors (12+4 pin) cable length

700 mm

AC input voltage

100 - 240 V

Input current

12 - 6.5 A

AC input frequency

50/60 Hz

Max output current (+12V)

0.3 A

Combined power (+12V)

3.6 W

Combined power (+3.3V)

105 W

Combined power (+5V)

105 W

Max output current (+5V)

20 A

Power Factor Correction (PFC) type

Active

Max output current (+3.3V)

20 A

Power factor

0.9

Hold time

16 ms

Efficiency

90%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Max output current (-12V)

0.3 A

Combined power (-12V)

3.6 W

Max output current (+5Vsb)

3 A

Total power

750 W

Combined power (+5Vsb)

15 W

Width

150 mm

Weight

2.34 kg

Depth

140 mm

Height

86 mm
